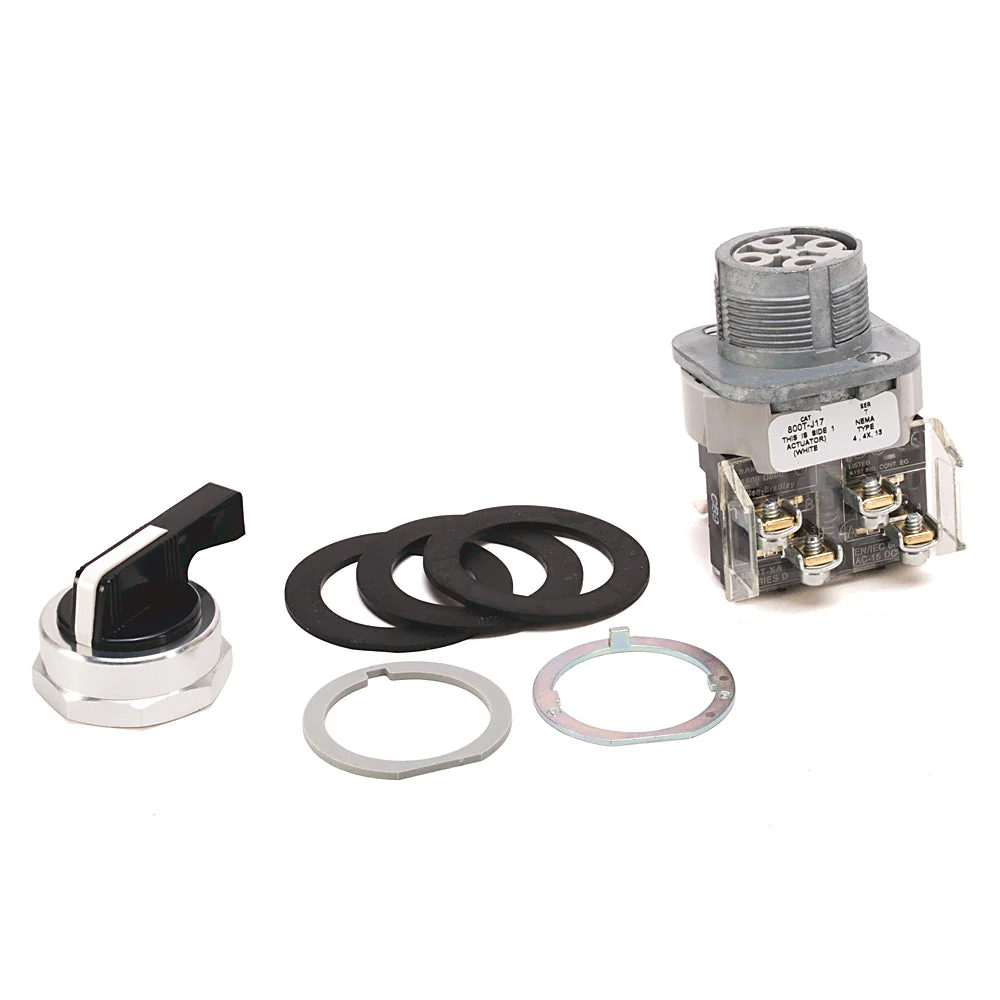

800T-J17A - Allen-Bradley - Selector Switch

800T-J17A - Allen-Bradley Selector Switch

Selector Switch, 3 Position, 30mm, Knob Lever, Black with White Insert, KB7 Cam, 1 Normally Open, 1 Normally Closed, Contact Blocks, NEMA 4/13
Ruggedly attractive and boldly functional, the Allen-Bradley Bulletin 800T line of push buttons are designed and built to perform in demanding industrial environments. Catalog item 800T-J17A from Rockwell Automation is a three-position, 30 mm selector switch with a white insert. It is knob lever maintained. For full product details, please see the sections below. Allen-Bradley is a trademark of Rockwell Automation, Inc.

• Manufacturer: Allen-Bradley

Specifications

• Number of switch positions: 3
• Hole diameter: 30.5 mm
• Operator mechanical design life (cycles, min.): 1000000
• Contact block electrical design life (cycles, at max. load): 1000000
• Enclosure compatibility (NEMA type): 1, 4, 12, 13
• Operator type: Selector switch
• Contact block termination tightening torque: 6 - 8 lb - in / 0.7 - 0.9 N-m
• Operator function: Maintained
• Shock: 25 G (contact fragility)/100 G (no damage)
• Vibration: 10 G maximum
• Contact block termination wire range: 14 - 18 AWG (x2)
• Suitable for illumination: No
• Contact block configuration: 1-NO 1-NC standard contacts
• Contact block thermal current rating: 10 A
• Contact block utilization category (AC): A600, AC-15
• Contact block utilization category (DC): Q600, DC-13
• Contact block operational voltage, max: 600V AC, 600V DC
• Terminations with finger safe covers: No
• Operator cap/button material: Plastic
• Operator construction/material: Metal
• Operator cap type: Knob lever
• Operator cam code: Standard cam
• Operator cap color: Black with white insert
• Operating temperature: -25 °C
• Hazardous location rating: No
• Humidity: 50 %
• Storage temperature: -40 °C
• Certifications: ABS, CCC, CE, CSA, EAC, GOST, UL
