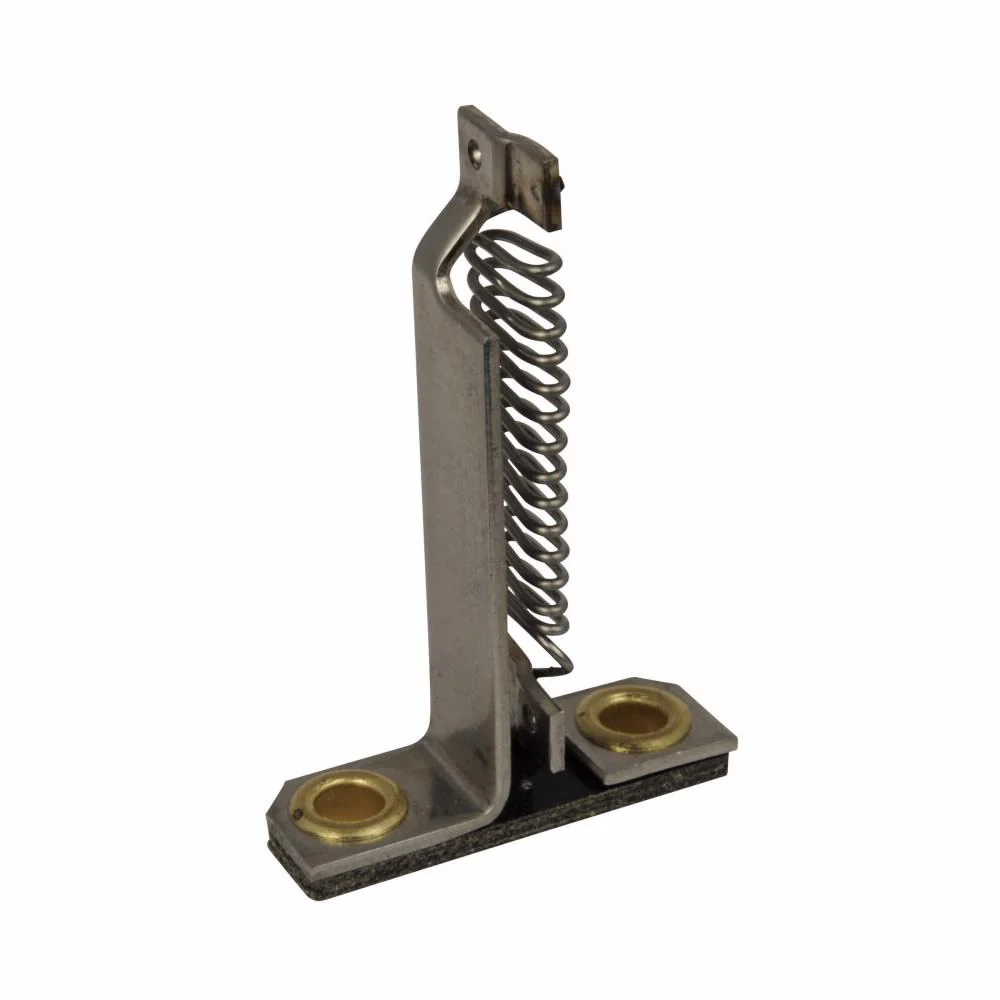

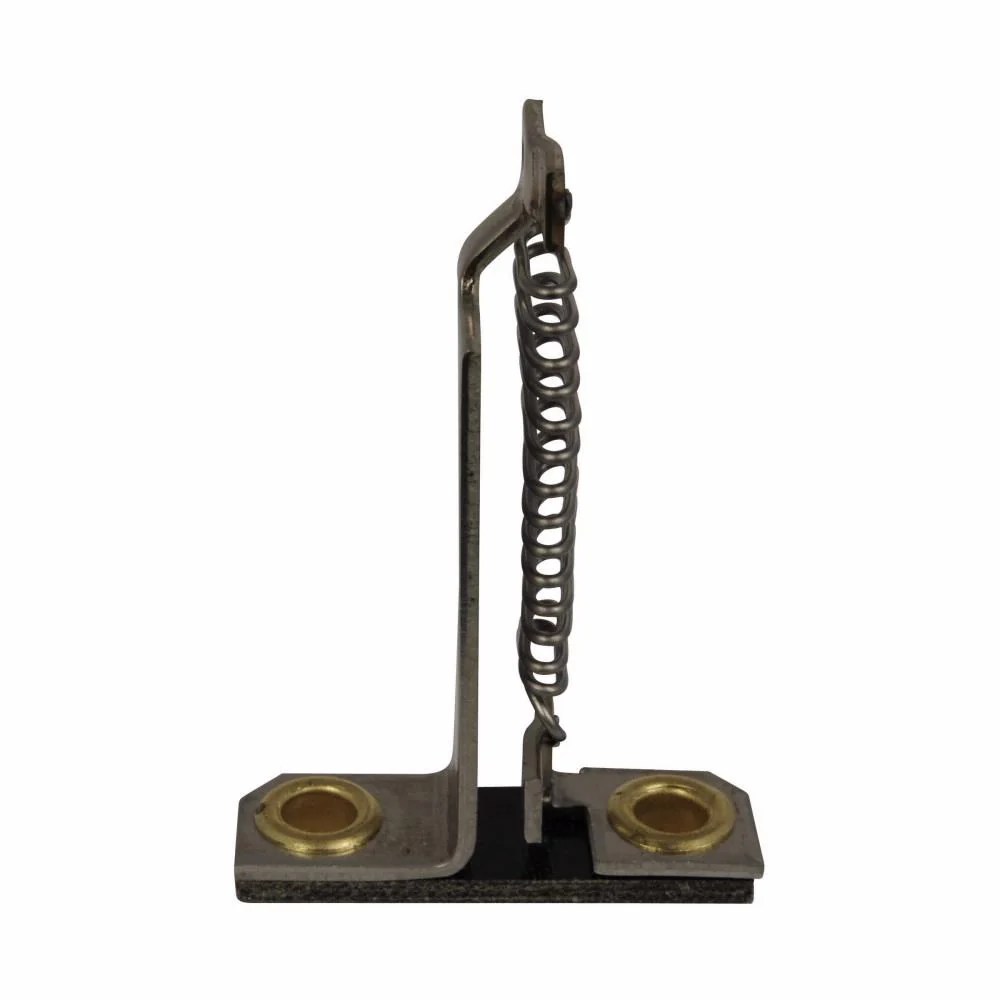

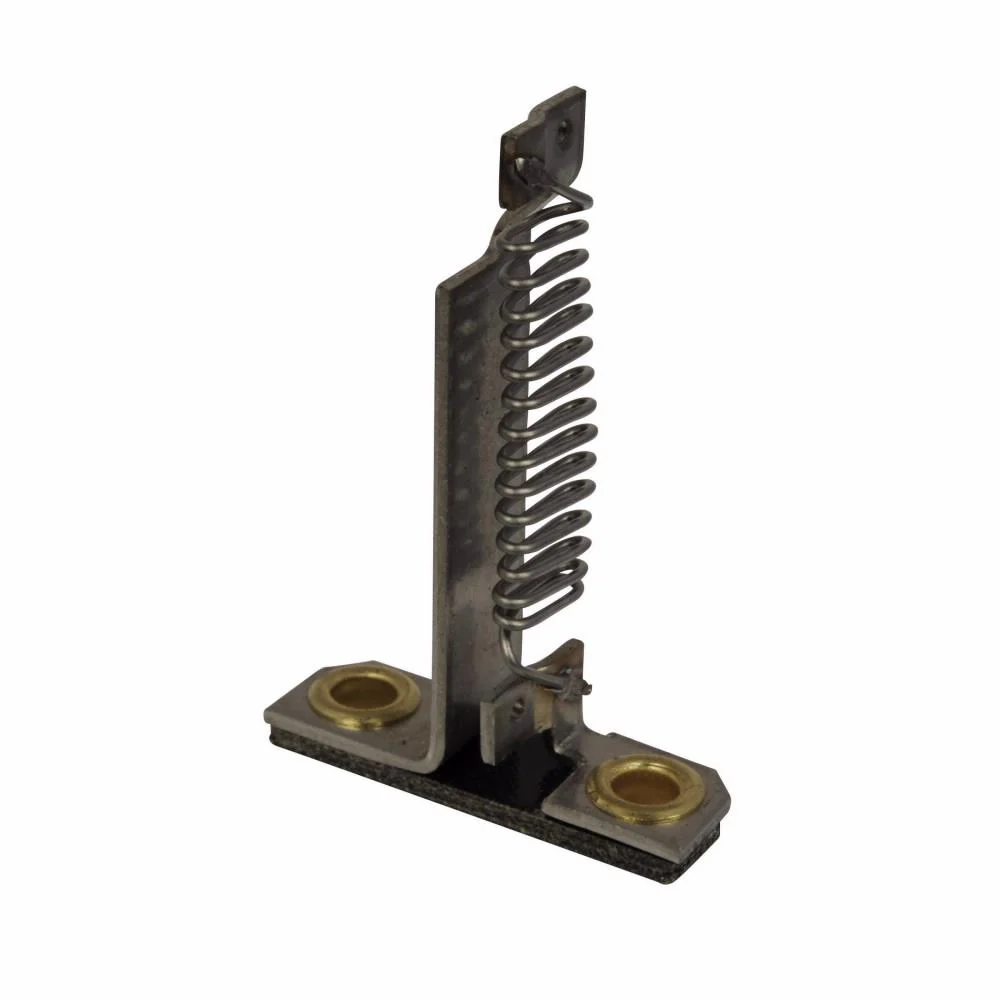

FH20 - Eaton - 1.71 Amp Overload Relay Heater

FH20 - Eaton Cutler-Hammer Overload Relay Heater

Cutler Hammer Thermal and fast trip heater element is compatible with safety and emergency exit devices. It has a current rating of 1.55 To 1.71 Ampere Ambient 1.35-1.47 1.56-1.71A Non-Comp 1.26-1.37 1.53-1.67A overload non-compensating enclosed starters.

Specifications:

• Product Name: A200/B100 Heater
• UPC: 786678629476
• Certifications: CSA Certified, UL Listed
• Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
• Design: NEMA
• Full Load Current Range: Ambient 1.35-1.47, 1.56-1.71A, Non-Comp 1.26-1.37, 1.53-1.67A
• Overload Relay: Type A and B
• Special Features: Used with Starter Sizes 0,1, and 2
• Type: A200/B100 Heater
• Used With: Used with Starter Sizes 0,1, and 2
• Trip Type: Thermal and Fast Trip
• Authentic Eaton/Cutler-Hammer Product
