-70%FH41 - Eaton - 11.3 Amp Overload Relay Heater—
$30.99
$9.30The Story

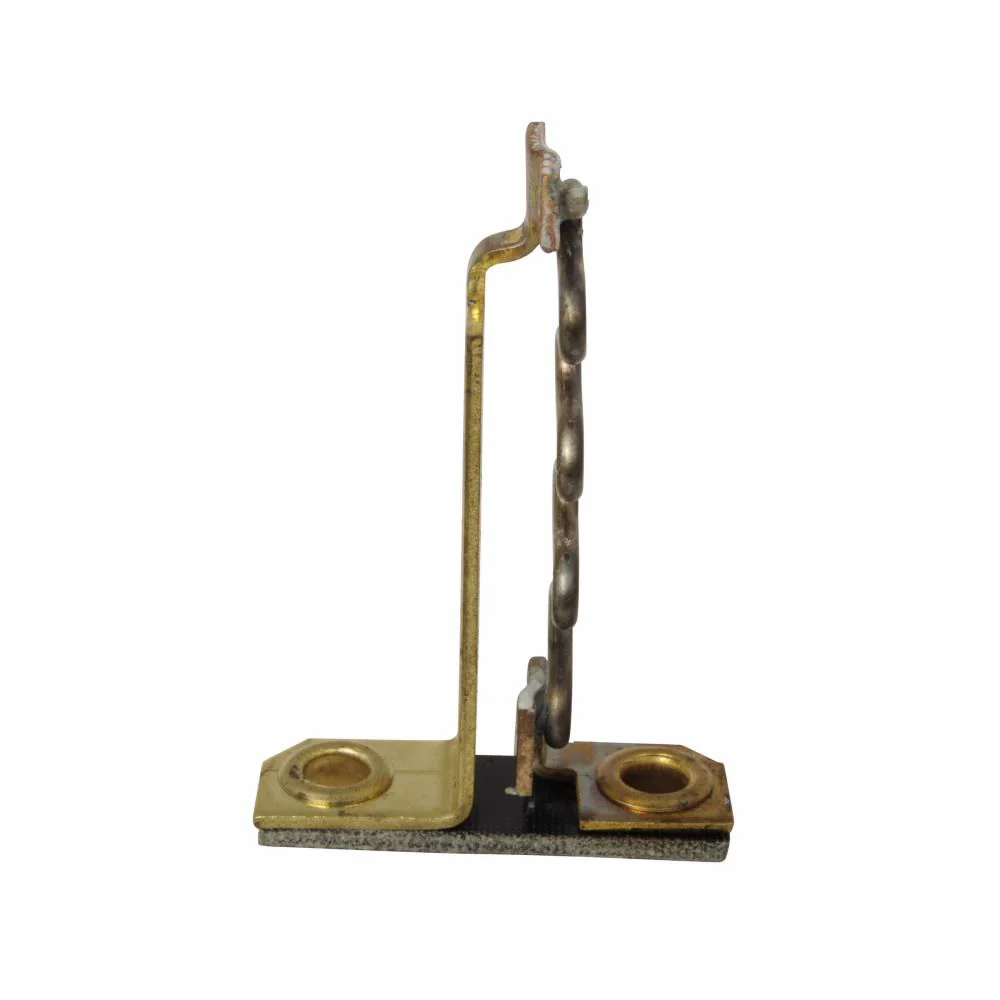

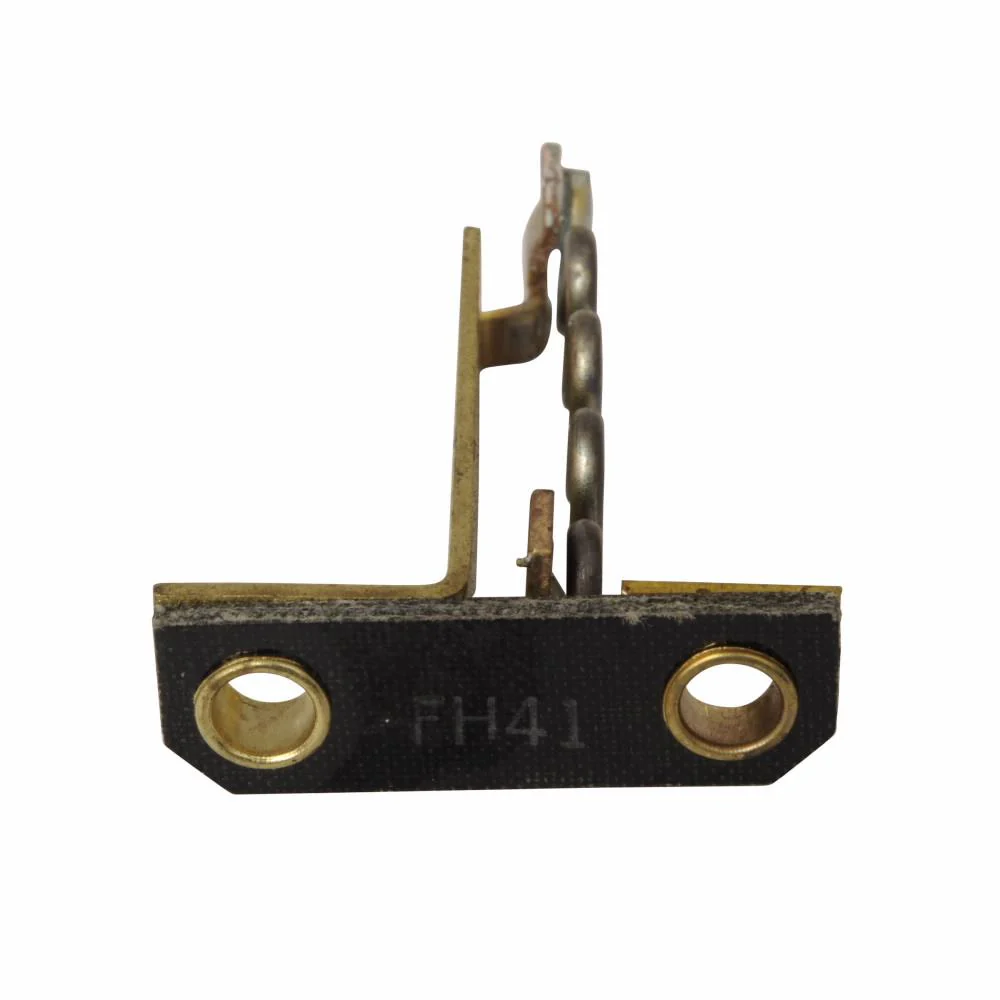

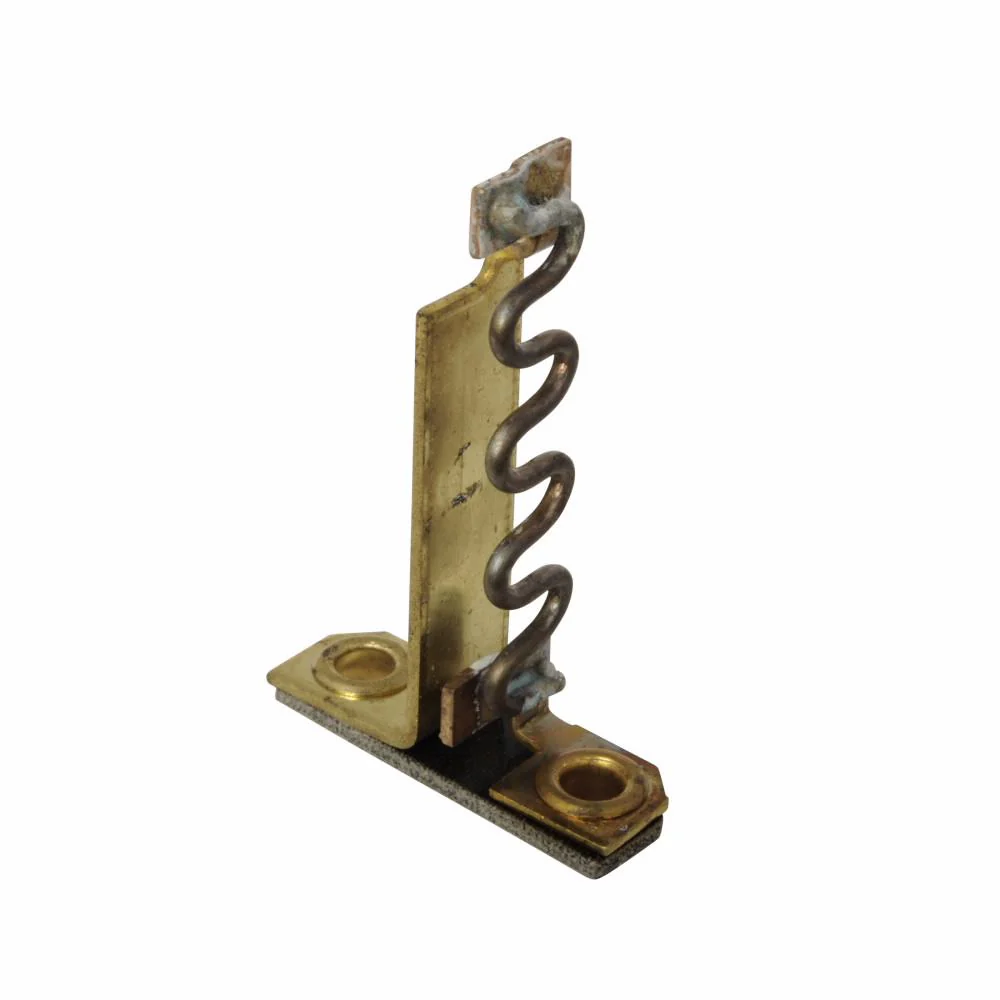

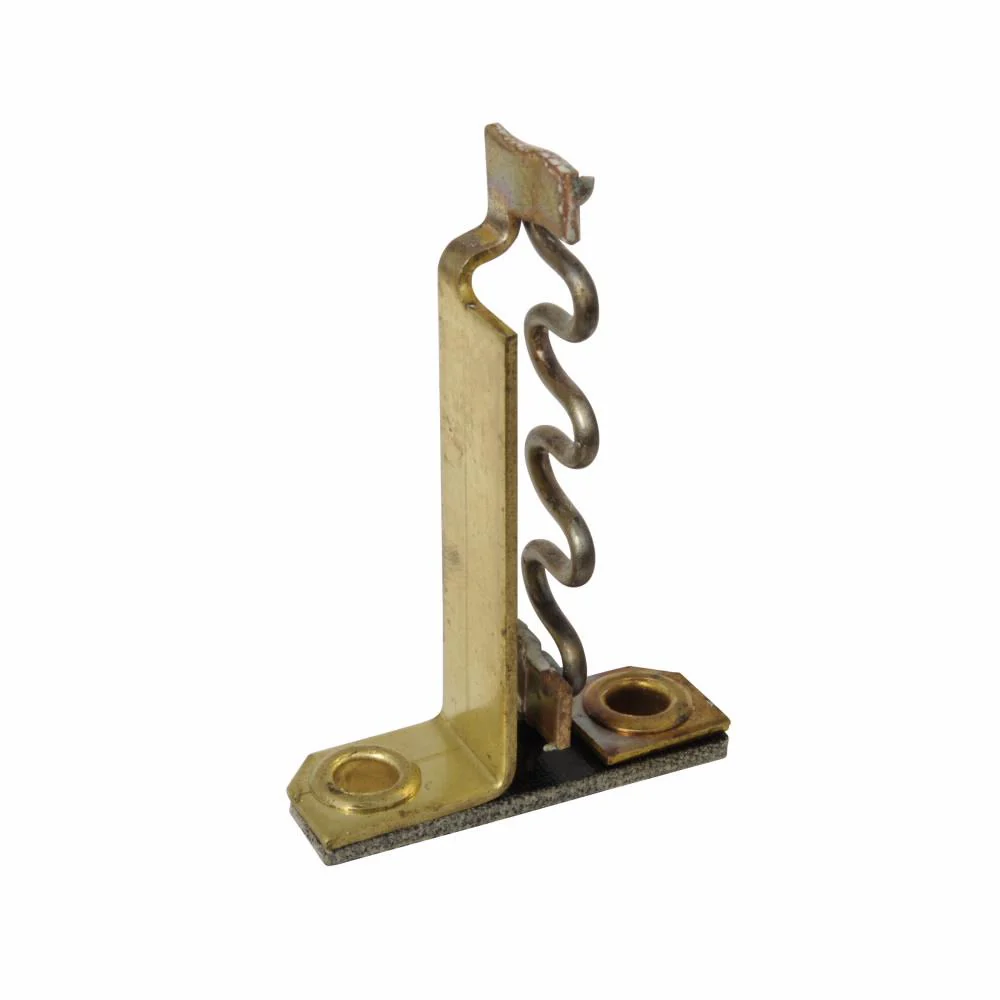

FH41 - Eaton Cutler-Hammer Overload Relay Heater
Specifications:
- Product Name: A200/B100 Heater
- UPC: 786678670096
- Certifications: CSA Certified, UL Listed
- Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
- Design: NEMA
- Full Load Current Range: Ambient 9.5-10.3, 10.9-11.9A, Non-Comp 8.8-9.5, 10.6-11.7A
- Overload Relay: Type A and B
- Special Features: Used with Starter Sizes 0,1, and 2
- Type: A200/B100 Heater
- Used With: Used with Starter Sizes 0,1, and 2
- Trip Type: Thermal and Fast Trip
- Authentic Eaton/Cutler-Hammer Product
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
FH41 - Eaton Cutler-Hammer Overload Relay Heater
Specifications:
- Product Name: A200/B100 Heater
- UPC: 786678670096
- Certifications: CSA Certified, UL Listed
- Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
- Design: NEMA
- Full Load Current Range: Ambient 9.5-10.3, 10.9-11.9A, Non-Comp 8.8-9.5, 10.6-11.7A
- Overload Relay: Type A and B
- Special Features: Used with Starter Sizes 0,1, and 2
- Type: A200/B100 Heater
- Used With: Used with Starter Sizes 0,1, and 2
- Trip Type: Thermal and Fast Trip
- Authentic Eaton/Cutler-Hammer Product
