CHF225 - Eaton - 25 Amp Circuit Breaker

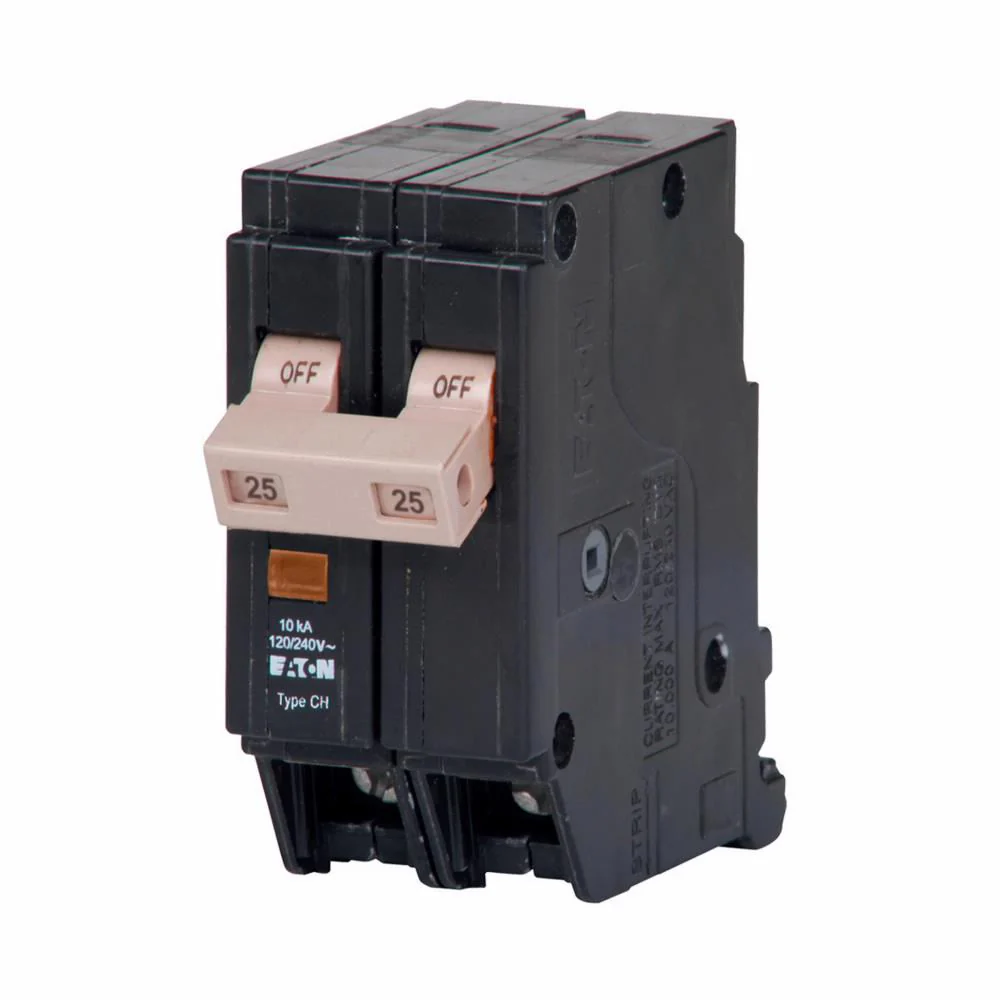

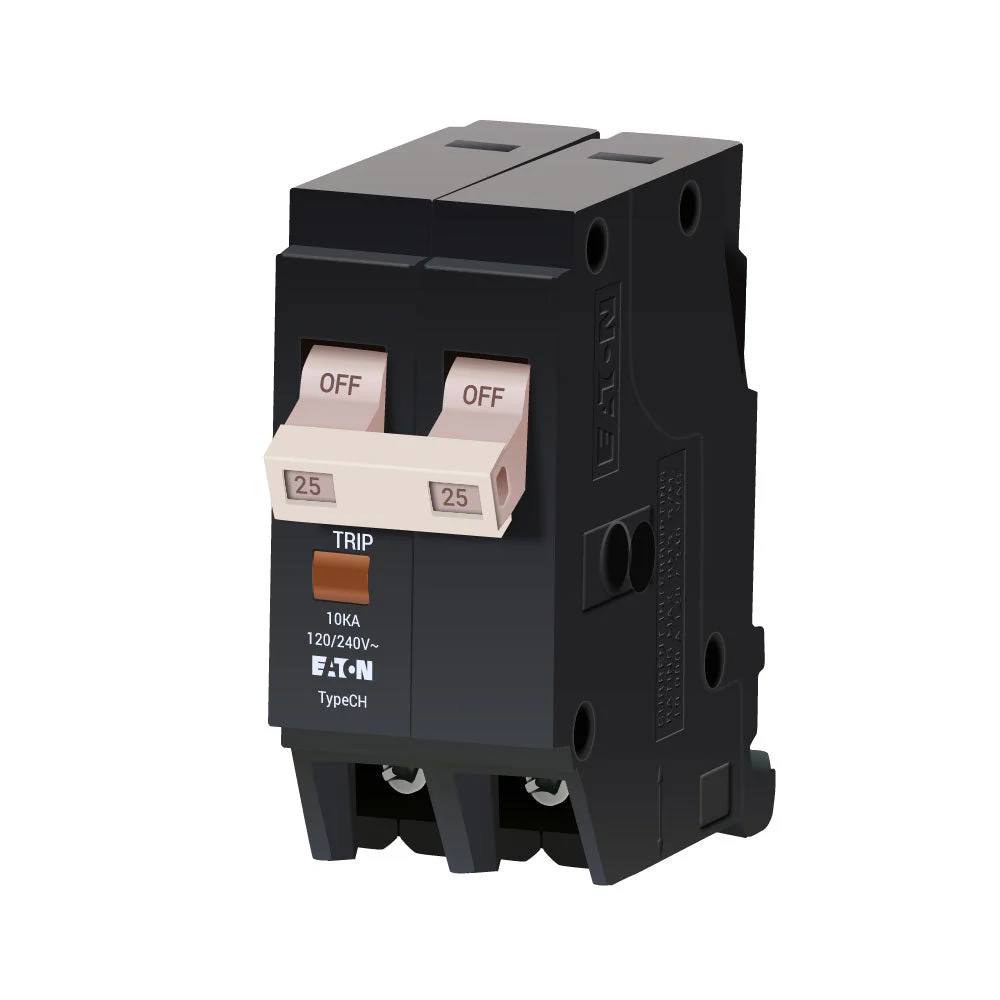

CHF225 - Eaton Cutler-Hammer Plug-In Molded Case Circuit Breaker

Cutler Hammer CH series double pole 25 ampere plug-in molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V with mechanical trip flag complete with (LI) Long-Time and Instantaneous trip functions.

Specifications:

• Product Name: Type CHF 3/4-inch Standard Circuit Breaker
• Product Length: 3 IN
• Product Height: 3 IN
• Product Width: .75 IN
• Product Weight: .28 LB
• Certifications: UL 489
• Catalog Notes: HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication
• Interrupt Rating: 10 kAIC
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Used With: Type CH Loadcenters
• Main Circuit Breaker: CH
• Voltage Rating: 120/240V
• Amperage Rating: 25A
• Trip Type: Common
• Number Of Poles: Two-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 3" x 0.75" x 3"
