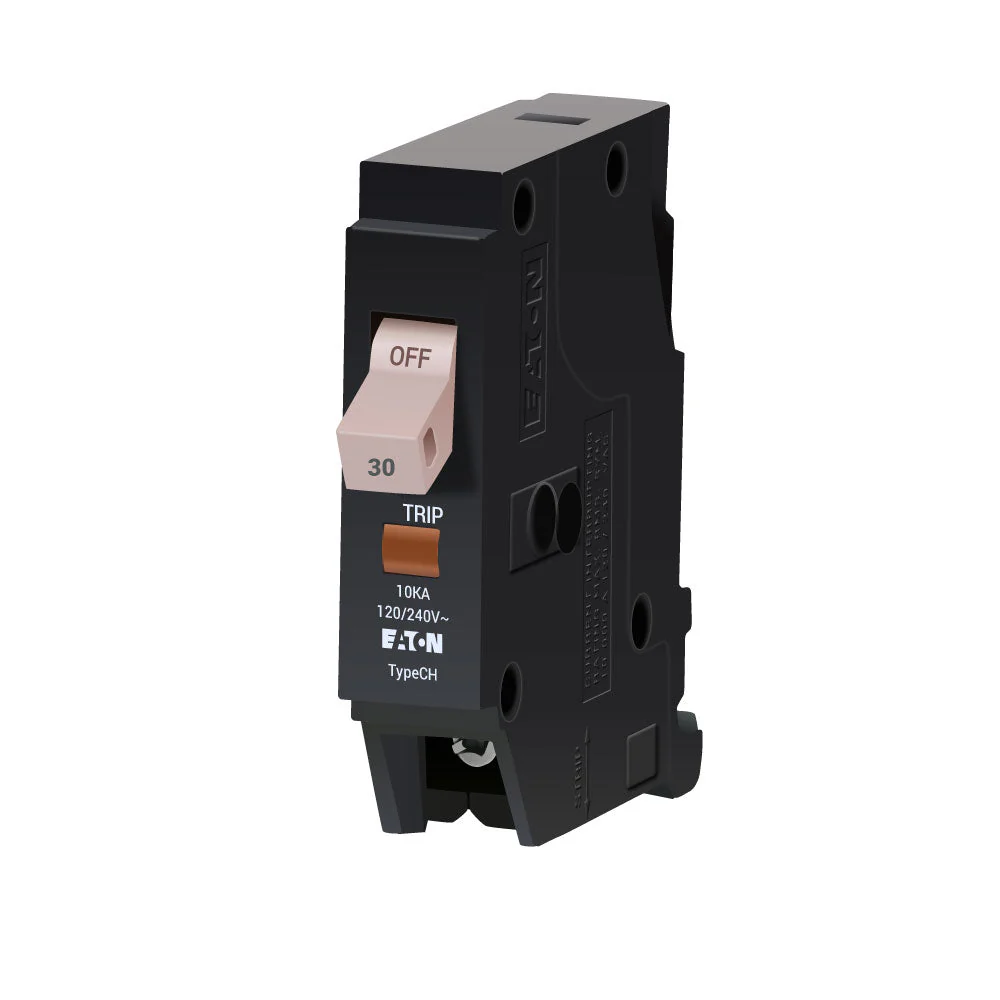

CHF130 - Eaton - 30 Amp Circuit Breaker

CHF130 - Eaton Cutler-Hammer Plug-In Circuit Breaker

This product is a molded case circuit breaker 1-Pole Plug-on circuit breaker has current rating of 30 Amps and voltage rating of 120/240 VAC. Circuit breaker has AIC rating of 10 kilo-Amps. It accommodates wires of size 14 - 8/14 - 10 AWG. It has unique trip to off and one step reset feature with a trip flag to indicate the breaker status.

Specifications:

• Product Name: Eaton Type CHF 3/4-inch Standard Circuit Breaker
• Product Length: 3.5 IN
• Product Height: 3.5 IN
• Product Width: 1.5 IN
• Product Weight: .28 LB
• Certifications: UL 489
• Catalog Notes: HACR Rated, Single-Pole Requires One 2/4-Inch Space, With Trip Indication
• Interrupt Rating: 10 kAIC
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Used With: Type CH Loadcenters
• Main Circuit Breaker: CH
• Voltage Rating: 120/240V
• Amperage Rating: 30A
• Number Of Poles: Single-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 3.5" x 1.5" x 3.5"
