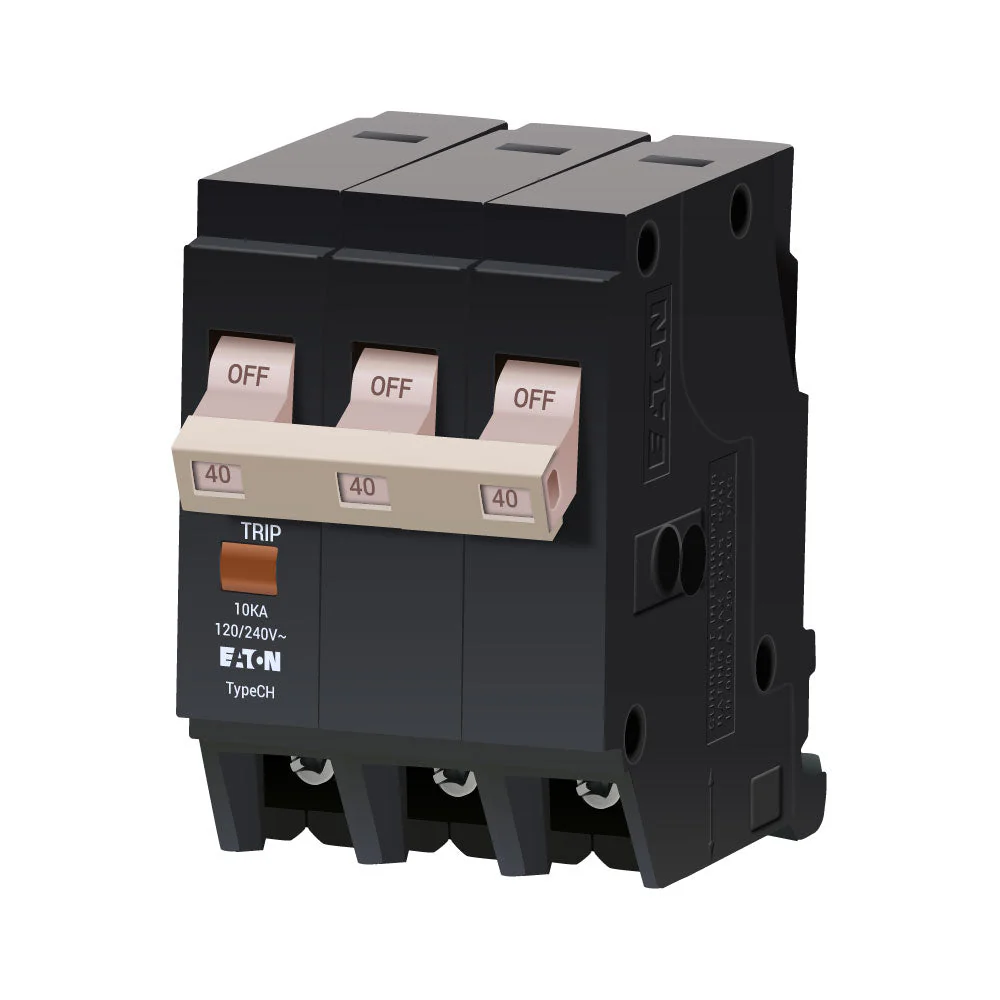

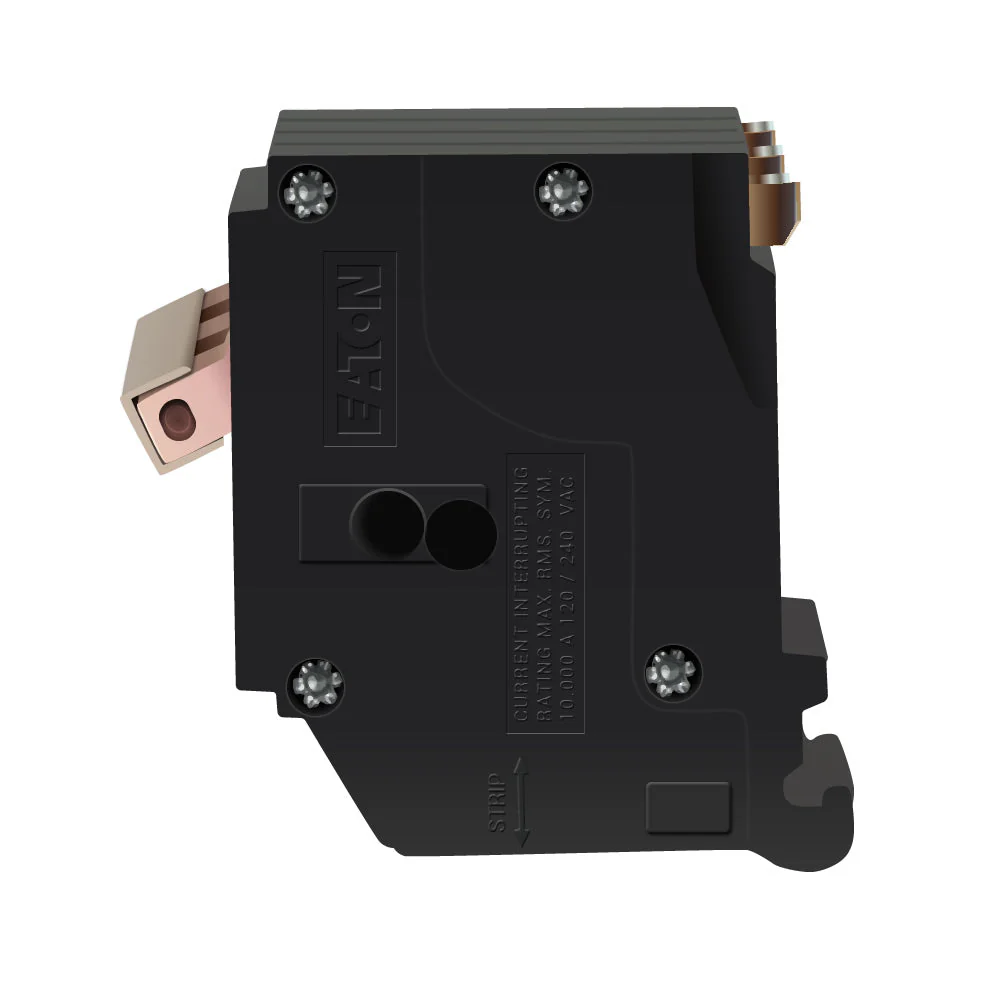

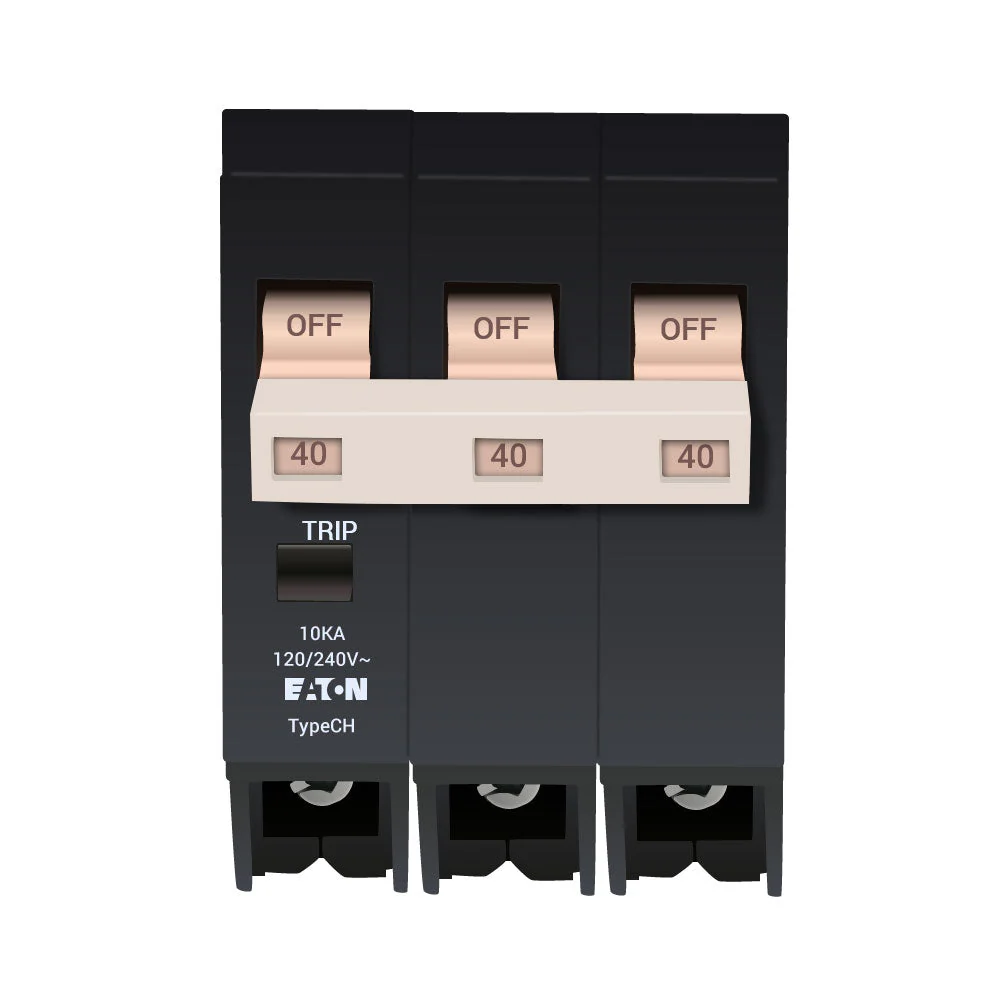

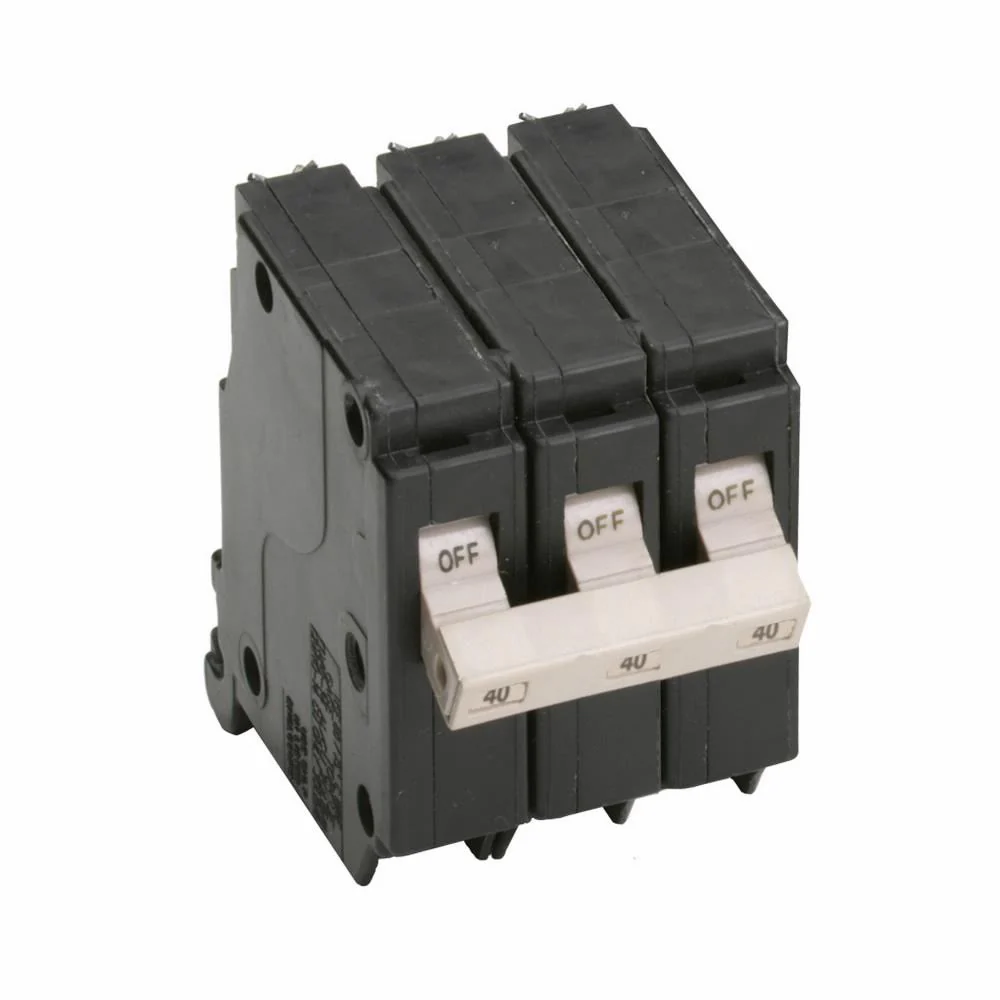

CH340 - Eaton - 40 Amp Circuit Breaker

CH340 - Eaton Cutler-Hammer Plug-In Circuit Breaker

Eaton / Cutler-Hammer Plug-On Circuit Breaker Its Compact And Easy to Install three pole circuit breaker features thermal magnetic molded case for extra protection circuit breaker has a current rating of 40 amps and voltage rating of 240 Vac it is a common trip breaker that has AIC rating of 10000 Amps and accommodates copper/aluminum wire of size 10 - 1/0 AWG circuit breaker is Ul 489 listed and Csa certified.

Specifications:

• Product Name: Type CH 3/4-inch Standard Circuit Breaker
• Certifications: UL 489
• Catalog Notes: HACR rated, Three-Pole 240V Common Trip Requires Three 3/4-Inch Spaces
• Interrupt Rating: 10 kAIC
• Type: Type CH 3/4-inch Standard Circuit Breaker
• Wire Size: #10-1/0 AWG Cu/Al
• Used With: Type CH Loadcenters
• Main Circuit Breaker: CH
• Voltage Rating: 240V
• Amperage Rating: 40A
• Trip Type: Common
• Number Of Poles: Three-pole
• Authentic Eaton/Cutler-Hammer Product
• 3 phase
