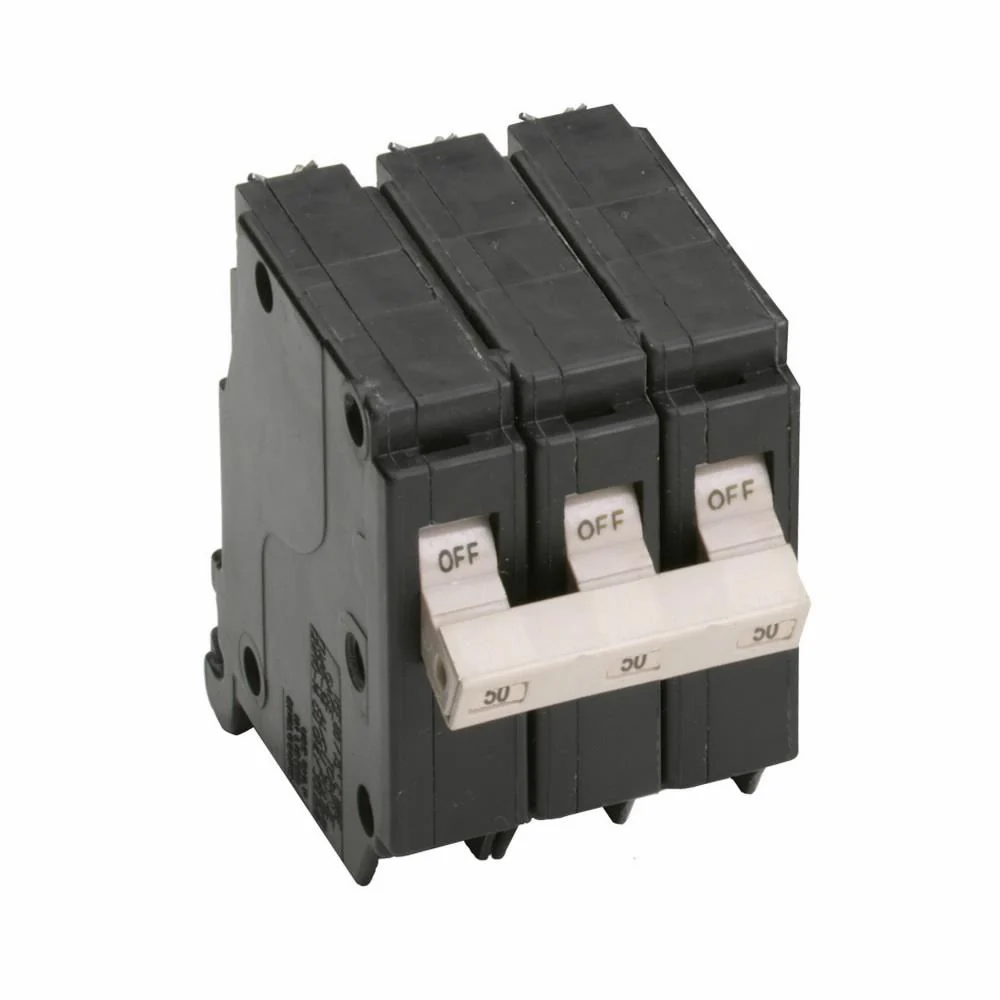

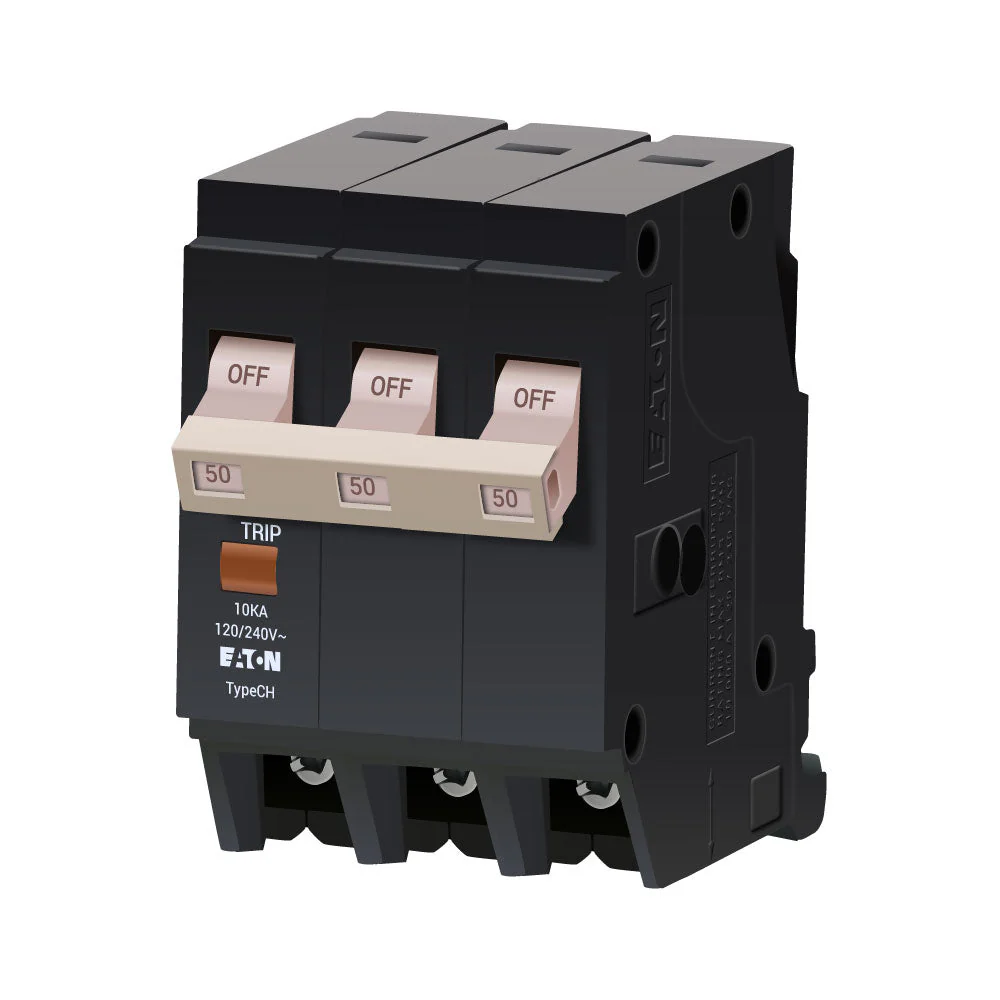

CH350 - Eaton - 50 Amp Circuit Breaker

CH350 - Eaton Cutler-Hammer Plug-In Circuit Breaker

Eaton Cutler-Hammer CH series three pole 50 ampere plug-on molded case circuit breaker with maximum voltage rating of 240V trip type common trip thermal magnetic and high interrupting rating of 10 kiloampere at 240V functions long-time and instantaneous used on load centers.

Specifications:

• Product Name: Type CH 3/4-inch Standard Circuit Breaker
• Certifications: UL 489
• Catalog Notes: HACR rated, Three-Pole 240V Common Trip Requires Three 3/4-Inch Spaces
• Interrupt Rating: 10 kAIC
• Type: Type CH 3/4-inch Standard Circuit Breaker
• Wire Size: #10-1/0 AWG Cu/Al
• Used With: Type CH Loadcenters
• Main Circuit Breaker: CH
• Voltage Rating: 240V
• Amperage Rating: 50A
• Trip Type: Common
• Number Of Poles: Three-pole
• Authentic Eaton/Cutler-Hammer Product
• 3 phase
