CH280 - Eaton - 80 Amp Circuit Breaker

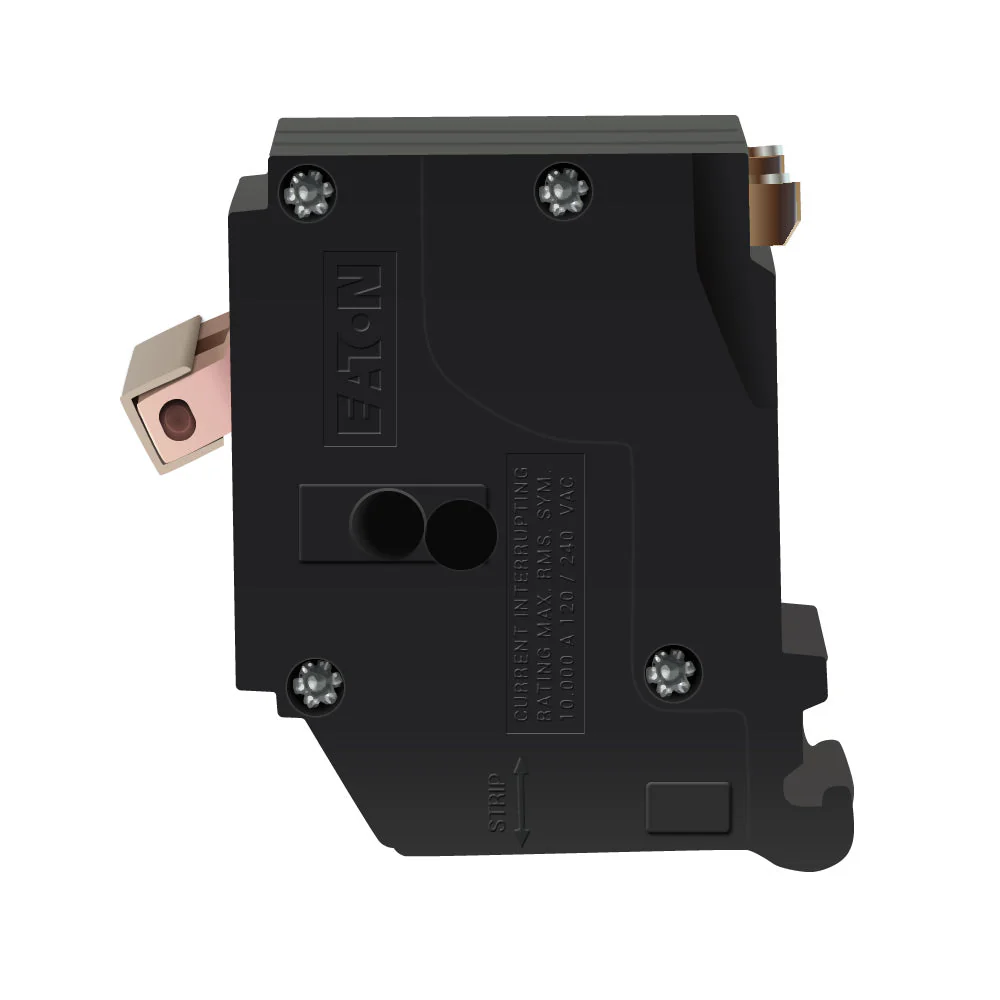

CH280 - Eaton Cutler-Hammer Plug-In Circuit Breaker

Eaton / Cutler-Hammer Plug-On Circuit Breaker Its Compact And Easy to Install two pole circuit breaker features thermal magnetic molded case for extra protection circuit breaker has a current rating of 80 amps and voltage rating of 120/240 VAC it is a common trip breaker that has AIC rating of 10000 amps and accommodates copper/aluminum wire of size 10 to 1/0 AWG circuit breaker is Ul 489 listed and Csa certified.

Specifications:

• Product Name: Type CH 3/4-inch Standard Circuit Breaker
• Certifications: UL 489
• Catalog Notes: Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces
• Interrupt Rating: 10 kAIC
• Type: Type CH 3/4-inch Standard Circuit Breaker
• Wire Size: #10-1/0 AWG Cu/Al
• Used With: Type CH Loadcenters
• Main Circuit Breaker: CH
• Voltage Rating: 120/240V
• Amperage Rating: 80A
• Trip Type: Common
• Number Of Poles: Two-pole
• Authentic Eaton/Cutler-Hammer Product
