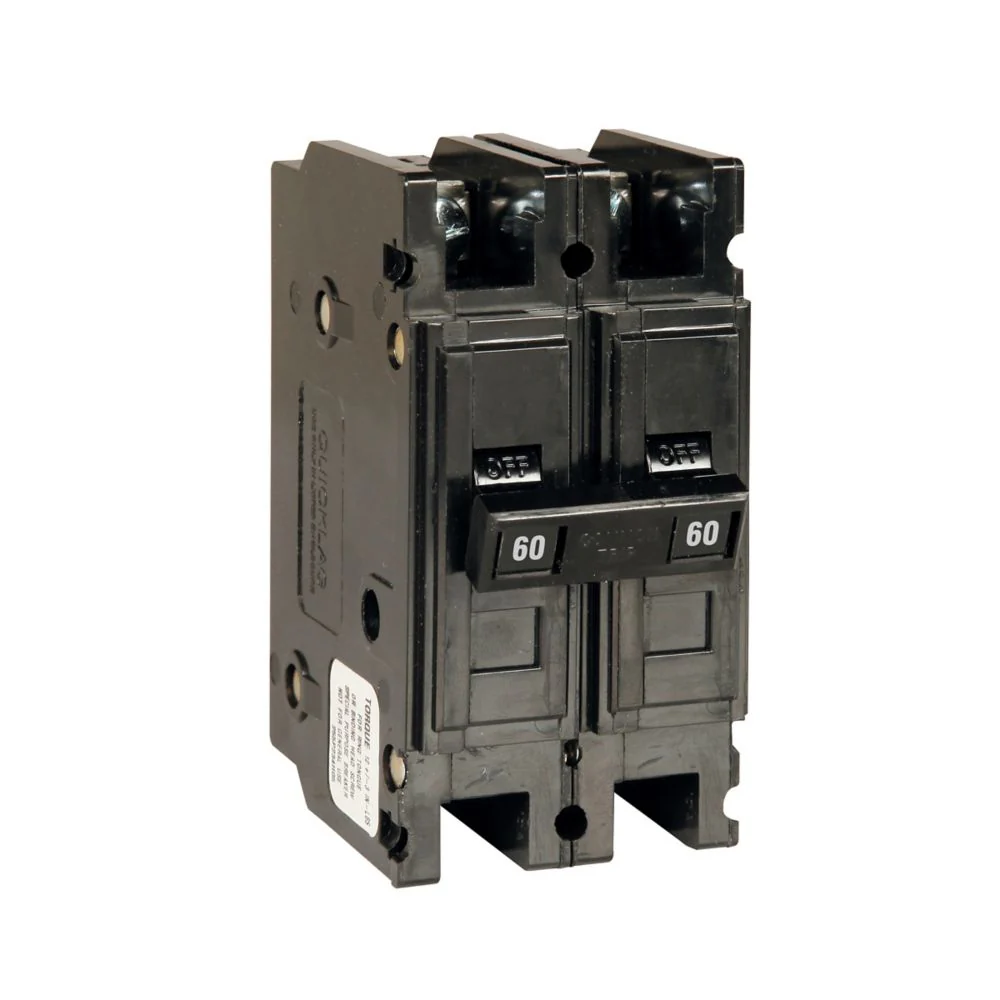

Product Specifications - QC2060 - Eaton Feed Thru Circuit Breaker
-
Part Number:
QC2060 -
Manufacturer:
-
Family:
Quicklag -
Pole:
2 -
Amp
60 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Feed Thru -
Type:
QC -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V
Dimensions
-
Dimensions (HxWxD):
4.8" x 2.2" x 3.9" -
Weight:
0.75 lbs
Standards
Product Description - QC2060 - Eaton Feed Thru Circuit Breaker
Circuit breaker it has a current rating of 60 amps at 40 deg c 120/240 vac voltage rating and an interrupting rating of 10000 amps at 120/240 vac 5000 amps at 24 to 48/62.5/80 vdc and wire of size 14 - 10 awg and load wire of size 14 - 4 awg it has a fixed thermal-magnetic non-interchangeable trip with box lug terminals.
