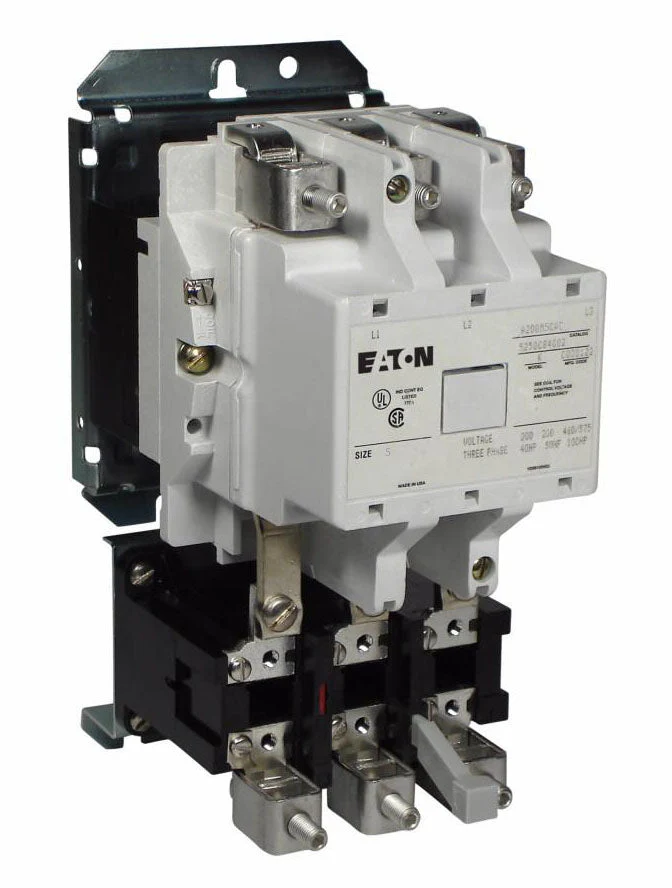

Product Specifications - A200M5CAC - Eaton Electric Motor Starters
-
Part Number:
A200M5CAC -
Manufacturer:
-
Family:
A200 Series -
Pole:
3 -
Amp
270 -
Volt:
600 -
Coil Voltage Min:
110 -
Coil Voltage Max:
120 -
Phase:
3
-
Category:
-
Type:
A200 -
Nema Rating:
5
Dimensions
-
Dimensions (HxWxD):
7.22" x 12" x 7.75"
-
Weight:
37.8 lbs
Standards
Product Description - A200M5CAC - Eaton Electric Motor Starters
A200M5CAC Non-reversing starters are supplied as open devices and all starters are supplied with a normally-open holding circuit interlock. These starters like the rest of the A200 series are UL Listed and CSA Approved up to 2250 Amps. Non-reversing starters contain an AC magnetically-operated Size 5 or Size 6 line contactor and block Type B three-pole overload relay along with three current transformers. A control relay whose contacts handle the coil current of the starter is provided with Size 6 starters.
