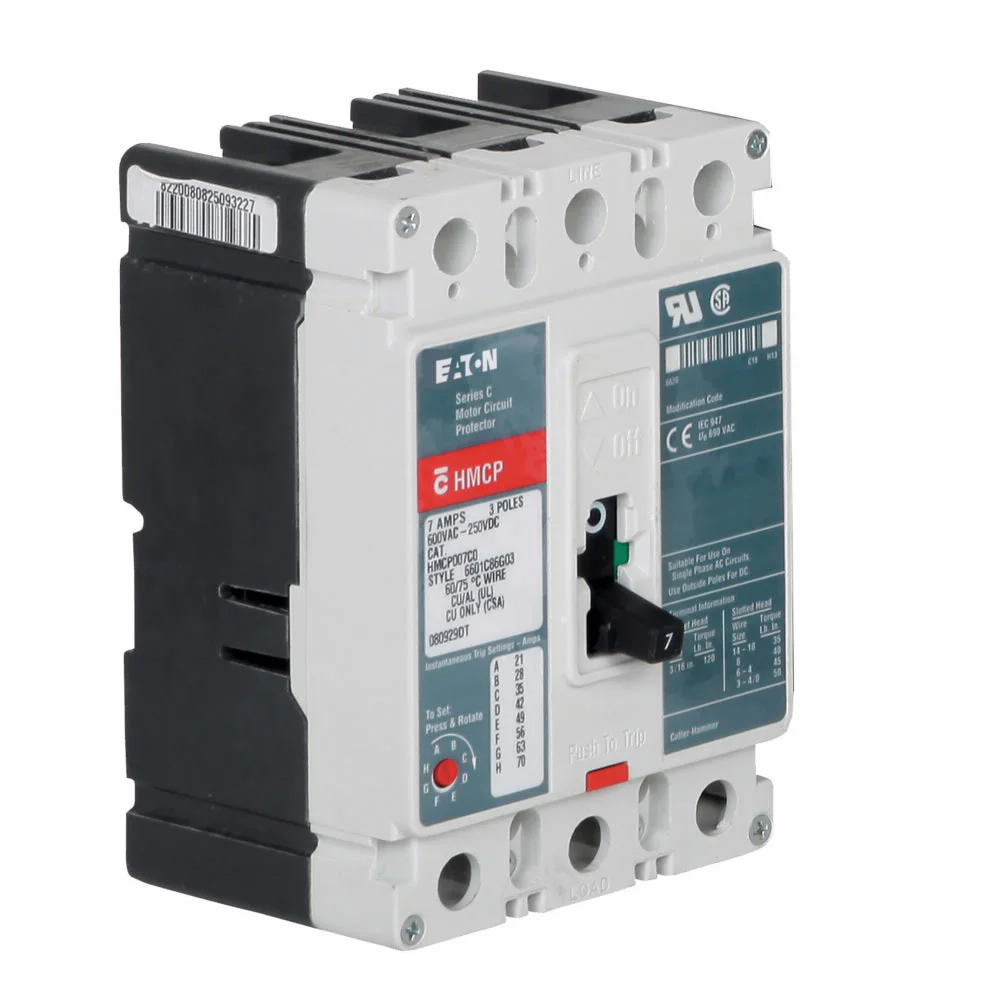

HMCP003A0 - Eaton - Molded Case Circuit Breaker—
$167.99
The Story
Overview
Product Specifications - HMCP003A0 - Eaton Molded Case Circuit Breaker
-
Part Number:
HMCP003A0 -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
3 -
Volt:
2 -
Phase:
3
-
Category:
-
Connection:
Feed Thru -
Type:
HMCP -
Functions:
I - Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
5" x 5" x 8"
-
Weight:
4.5 lbs
Standards
Product Description - HMCP003A0 - Eaton Molded Case Circuit Breaker
Cutler Hammer / Eaton / Westinghouse, Series C, type HMCP, F Frame, 3P, 3PH, 3A, 600V, 65kA@480V, feed-thru, complete with non-interchangeable trip with I - Instantaneous Protection Only, standard line and load side lug terminals, style number 6630C87G03, MCP, motor circuit protector, magnetic range 9-30A, motor FLA 0.69-2.5A, magnetic only, molded case circuit breakers.
