Product Specifications - KDC3300X - Eaton Molded Case Circuit Breakers
-
Part Number:
KDC3300X -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
300 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
KDC -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
100kA@480V -
Frame Type:
K Frame
Dimensions
-
Dimensions (HxWxD):
5.5" x 5.5" x 4.1" -
Weight:
11.5 lbs
Standards

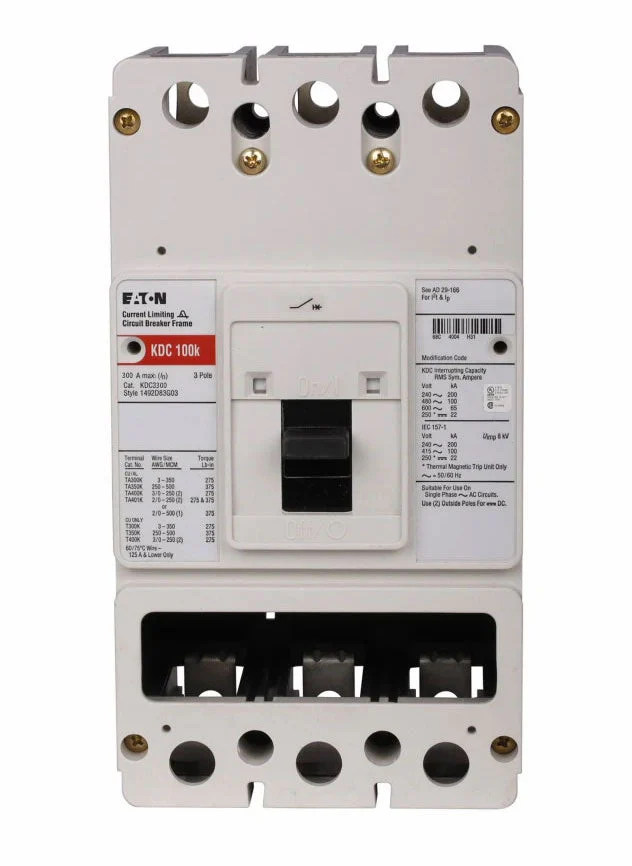

Product Description - KDC3300X - Eaton Molded Case Circuit Breakers
Eaton Cutler Hammer, Series C, type KDC, 3P, 3PH, 300A, 600V, 200 kAIC at 240 Vac, 100kA@480V, current limiting, 40 degree C, feed-thru, suitable for reverse fed applications, complete with interchangeable LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers
