Original: $8,881.99
-70%$8,881.99
$2,664.60The Story
Overview

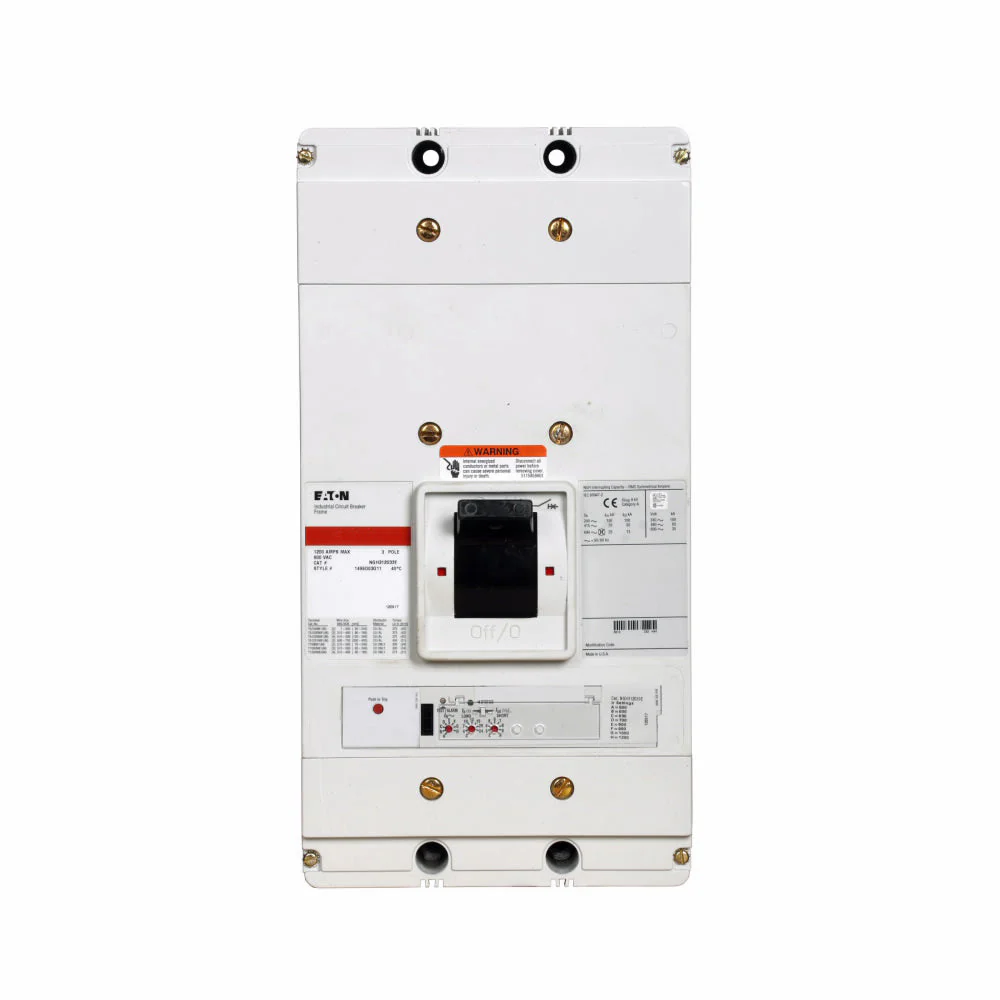

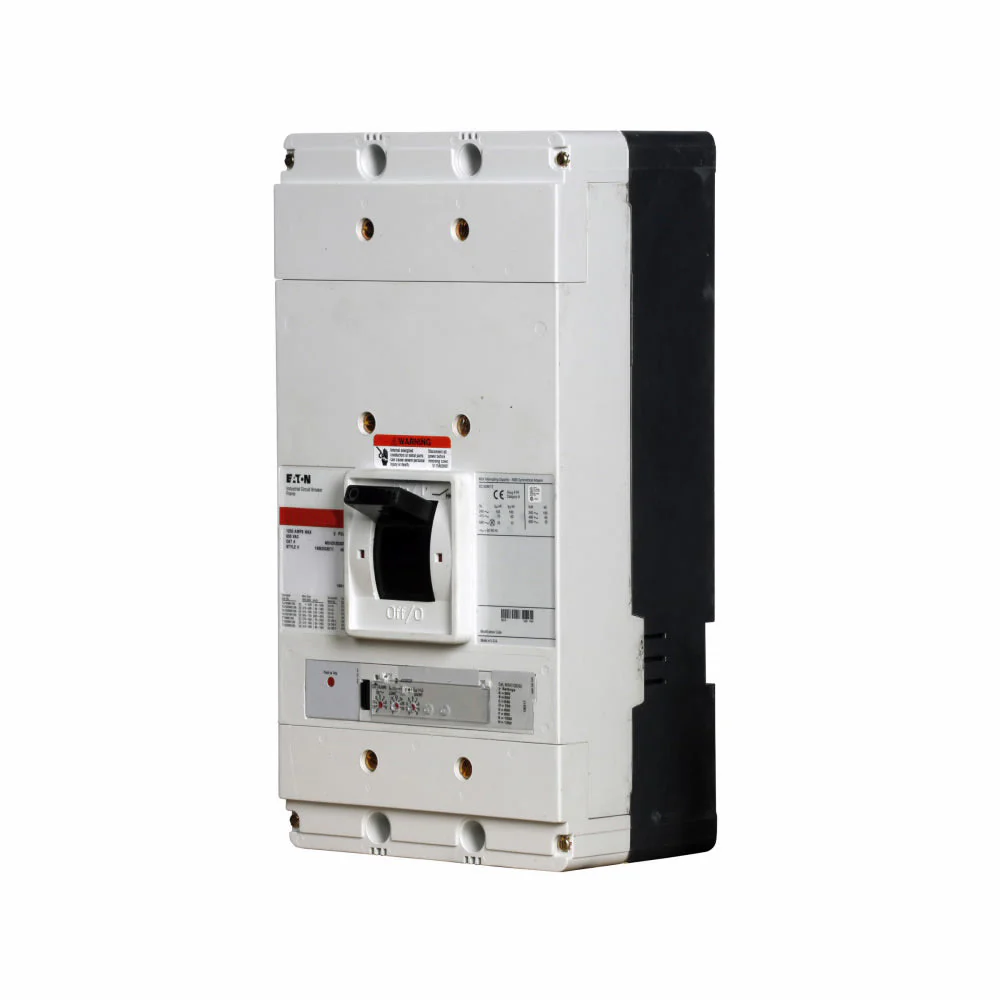

Product Specifications - NGC312033EC - Eaton Molded Case Circuit Breakers
-
Part Number:
NGC312033EC -
Manufacturer:
-
Family:
Series G -
Pole:
3 -
Amp
1200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
NGC -
Functions:
LS - Long-Time and Short-Time -
Protection:
Solid State -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
9.0" x 48.0" x 6.0"
-
Weight:
48 lbs
Standards
Product Description - NGC312033EC - Eaton Molded Case Circuit Breakers
Cutler Hammer, Series G, type NGC, 3P, 3PH, 1200A, 600V, 100% rated, 100kA@480V, very high interrupting capacity, bolt-on, complete with Digitrip RMS 310+ trip, LS - Long-Time and Short-Time trip functions and imperial tapped line/load conductors, lugs not included, solid state electronic.
