Original: $6,149.99
-70%$6,149.99
$1,845.00The Story
Overview

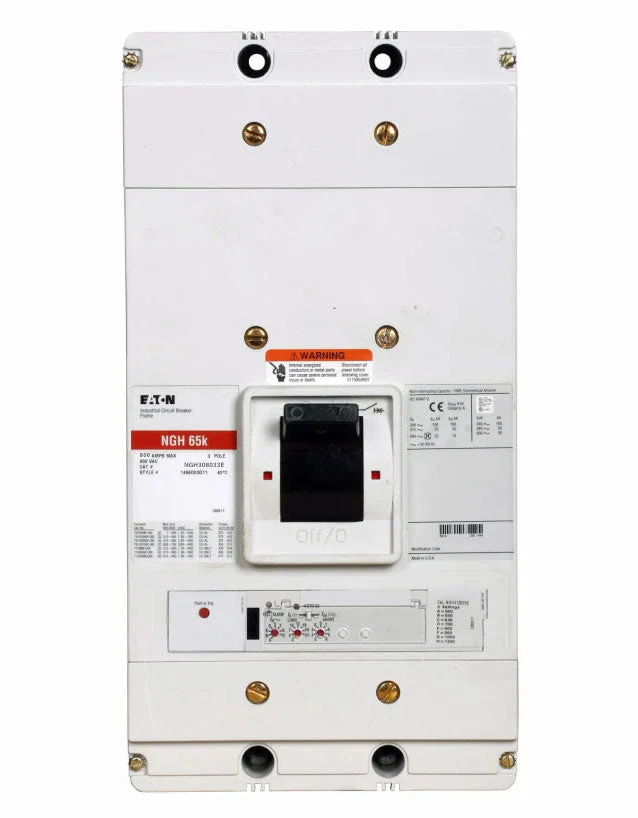

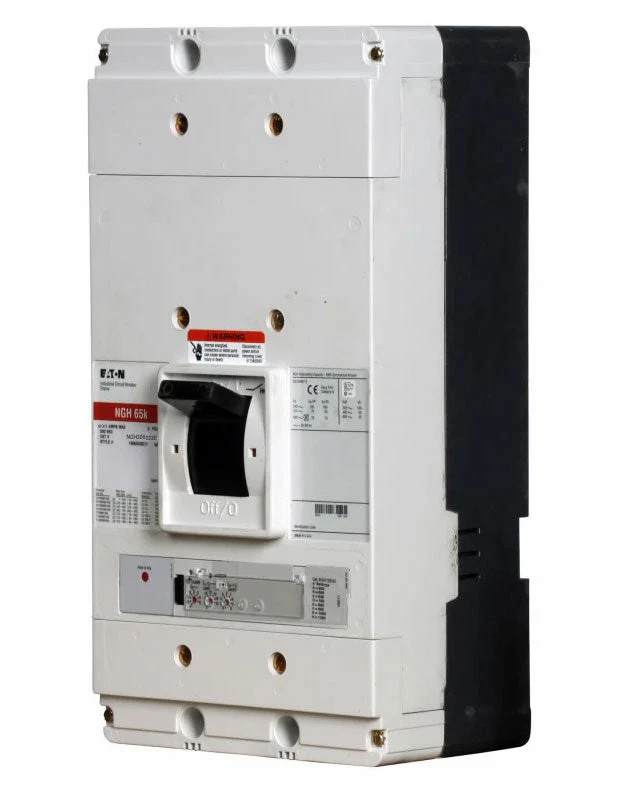

Product Specifications - NGH308033E - Eaton Molded Case Circuit Breakers
-
Part Number:
NGH308033E -
Manufacturer:
-
Family:
Series G -
Pole:
3 -
Amp
800 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
NGH -
Functions:
LS - Long-Time and Short-Time -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
9" x 9" x 6" -
Weight:
47 lbs
Standards
Product Description - NGH308033E - Eaton Molded Case Circuit Breakers
Cutler Hammer, Series G, type NGH, 3P, 3PH, 800A, 600V, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, high interrupting capacity, bolt-on, complete with Digitrip RMS 310+ trip, LS - Long-Time and Short-Time trip functions and imperial tapped line/load conductors, lugs not included, solid state electronic, molded case circuit breakers
