Original: $7,098.99
-70%$7,098.99
$2,129.70The Story
Overview

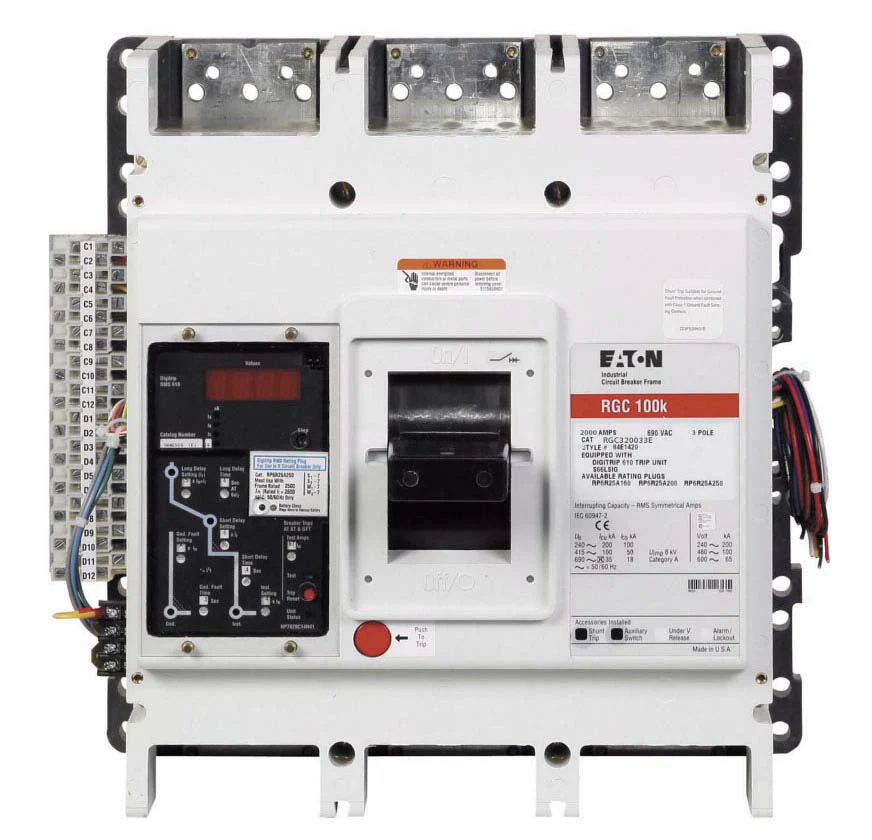

Product Specifications - RGC320033E - Eaton Molded Case Circuit Breaker
-
Part Number:
RGC320033E -
Manufacturer:
-
Family:
Series G -
Pole:
3 -
Amp
2000 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
RGC -
Functions:
LS - Long-Time and Short-Time -
Protection:
Solid State -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
B 15.5" x 15.5" x 9.75"
-
Weight:
102 lbs
Standards
Product Description - RGC320033E - Eaton Molded Case Circuit Breaker
Cutler Hammer, Series G, type RGC, 3P, 3PH, 2000A, 600V, 200 kAIC at 240 Vac, 100 kAIC at 480 Vac, very high interrupting capacity, feed-thru, LS - Long-Time and Short-Time trip functions, complete with Digitrip 310 electronic trip unit with adjustable rating plug and line & load side lug terminals, solid state electronic, molded case circuit breakers.
Documentation
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Overview
Product Specifications - RGC320033E - Eaton Molded Case Circuit Breaker
-
Part Number:
RGC320033E -
Manufacturer:
-
Family:
Series G -
Pole:
3 -
Amp
2000 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
RGC -
Functions:
LS - Long-Time and Short-Time -
Protection:
Solid State -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
B 15.5" x 15.5" x 9.75"
-
Weight:
102 lbs
Standards
Product Description - RGC320033E - Eaton Molded Case Circuit Breaker
Cutler Hammer, Series G, type RGC, 3P, 3PH, 2000A, 600V, 200 kAIC at 240 Vac, 100 kAIC at 480 Vac, very high interrupting capacity, feed-thru, LS - Long-Time and Short-Time trip functions, complete with Digitrip 310 electronic trip unit with adjustable rating plug and line & load side lug terminals, solid state electronic, molded case circuit breakers.
