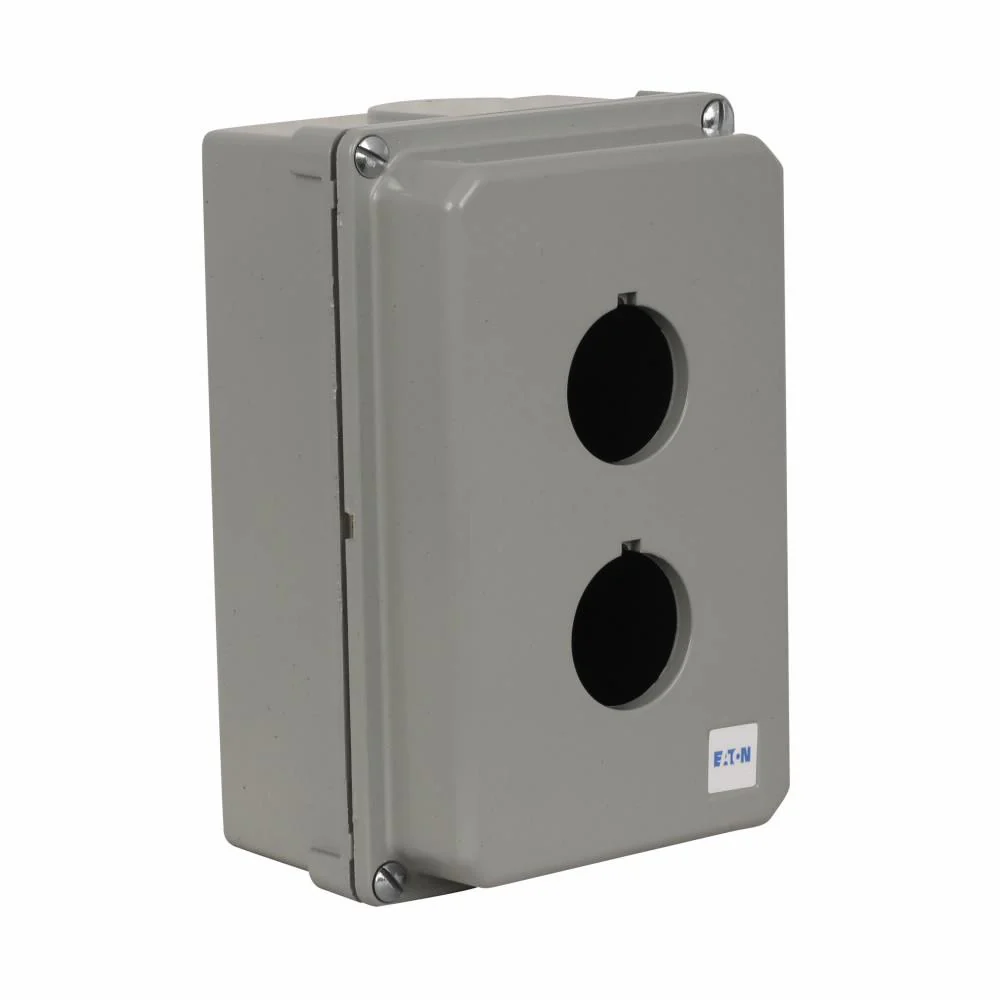

10250TN12 - Eaton - Push Button Enclosure

10250TN12 - Eaton Cutler-Hammer Push Button Enclosure

Eaton push button enclosure compact easy to install 30.5 Mm heavy-duty watertight/oiltight 2 Device Hole push button enclosure cover type screw on process die cast pushbutton Enclosure.

Specifications:

• Product Name: Pushbutton Enclosure
• UPC: 782113204604
• Product Length/Depth: 6.2 IN
• Product Height: 4.1 IN
• Product Width: 5.2 IN
• Product Weight: 2.95 LB
• Compliances: CE Marked
• Certifications: CSA Certified, UL Listed
• Catalog Notes: All cast enclosures can be converted to base mounting of contact blocks. When used with E30 pushbuttons, only the one element enclosureCan be used
• Mounting: Surface
• Product Category: Enclosure
• Series: 10250T
• Type: 30.5 mm, Heavy-Duty Watertight/Oiltight
• Number Of Elements: 2
• Bus Material: Zinc die cast
• Rating: NEMA 4, 4X, 12, 13
• Authentic Eaton / Cutler Hammer Product
• Dimensions (H x W x L): 4.1" x 5.2" x 6.2"
