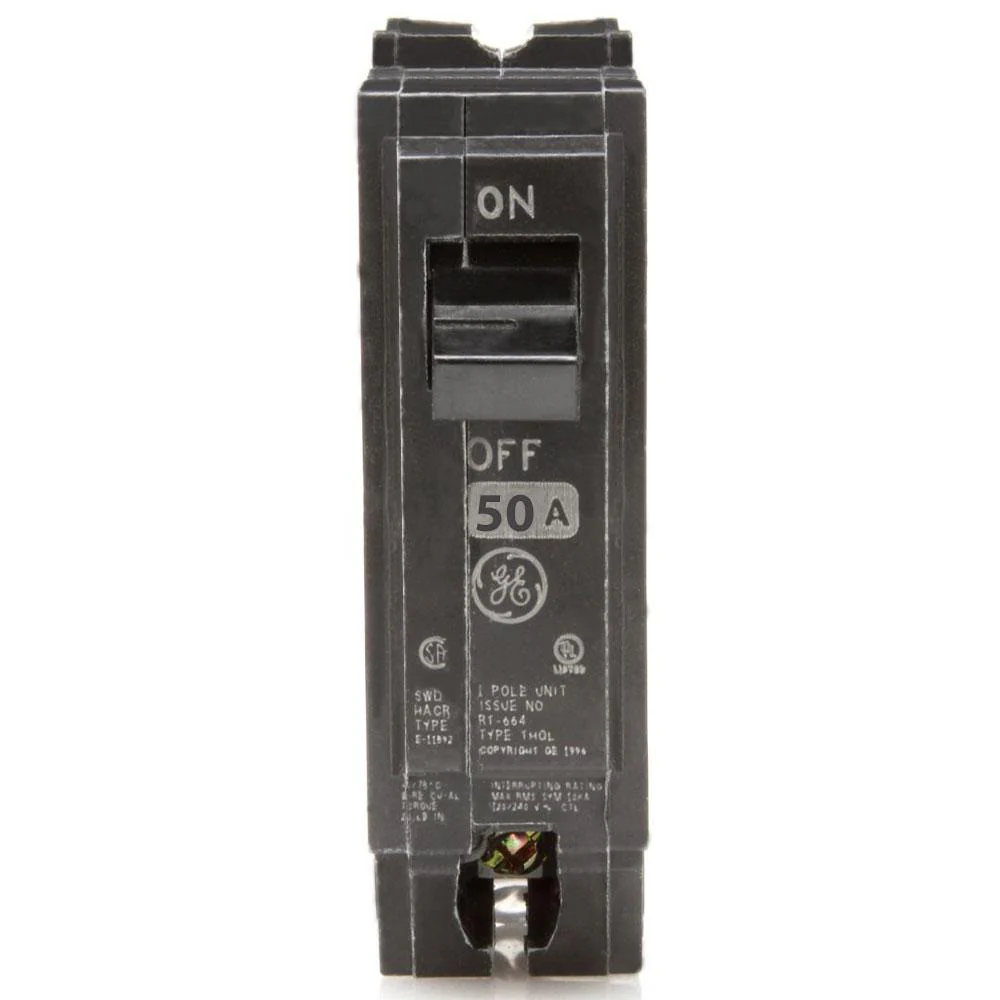

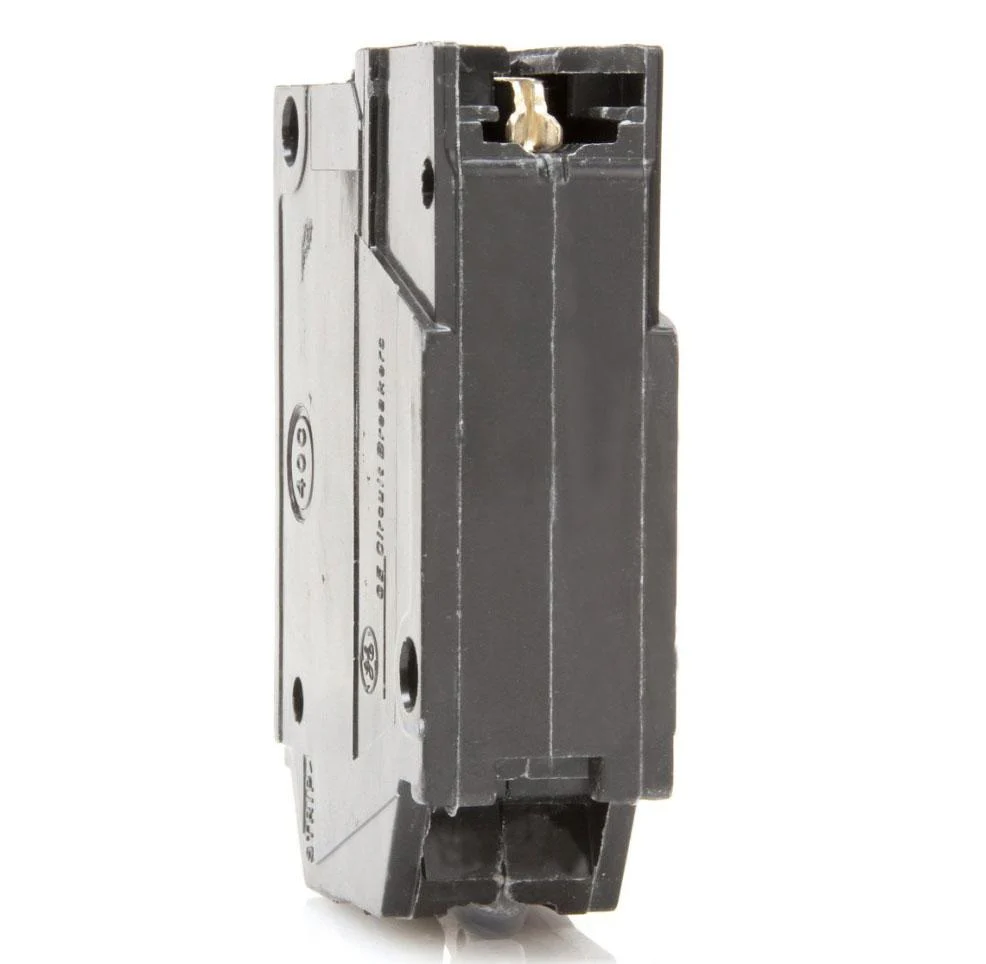

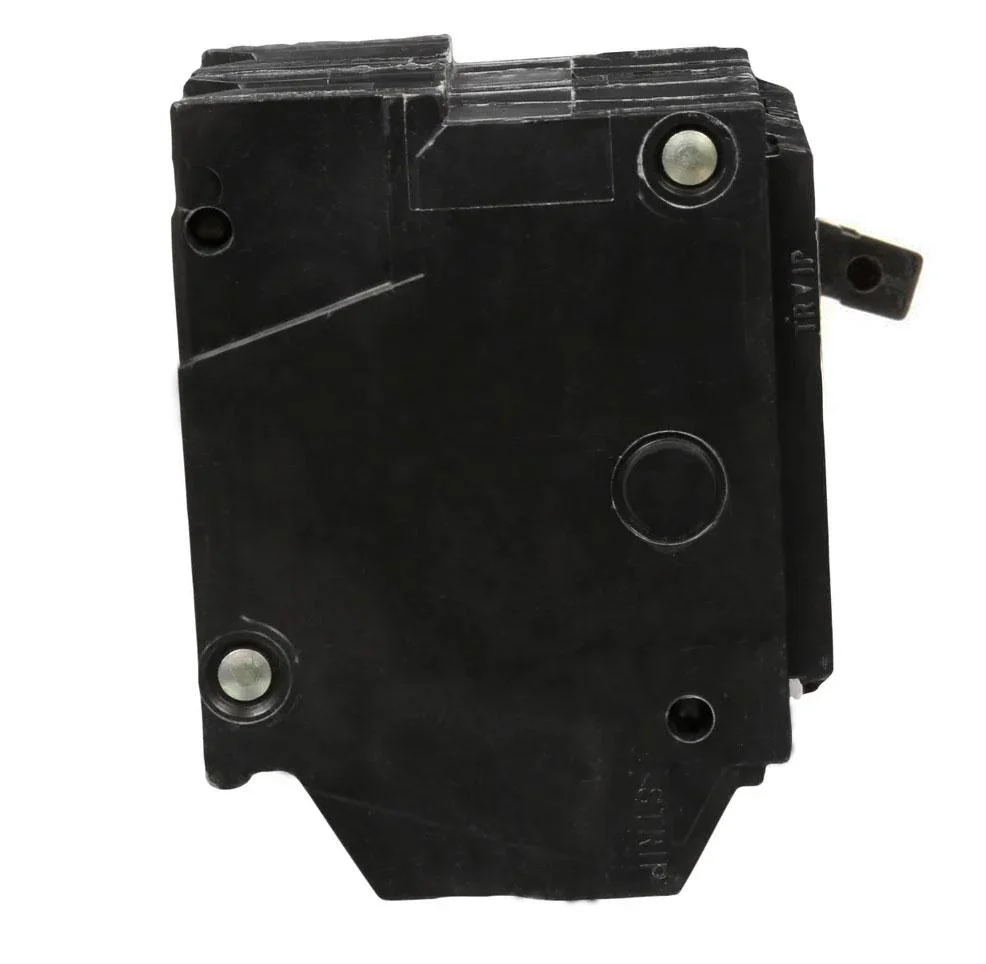

THQL1150 - GE - Circuit Breaker

THQL1150 - GE 50 Amp 1 Pole 120 Volt Plug-In Molded Case Circuit Breaker

General Electric Q-Line THQL series single pole 50 ampere plug-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 120V complete with (LI) Long-Time and Instantaneous trip functions and load side lug terminal suitable for reverse feed application.

• Manufacturer: General Electric
• Type: THQL
• Family: Q-Line
• UL Listed

Interrupting Rating

• AIC Rating: 10kA@120V

Specifications

• 1 Pole
• 50 Amp
• 120 Volt
• 1 Phase
• Protection: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous
• Dimensions (H x W x L): 3.9" x 1" x 2.3"
