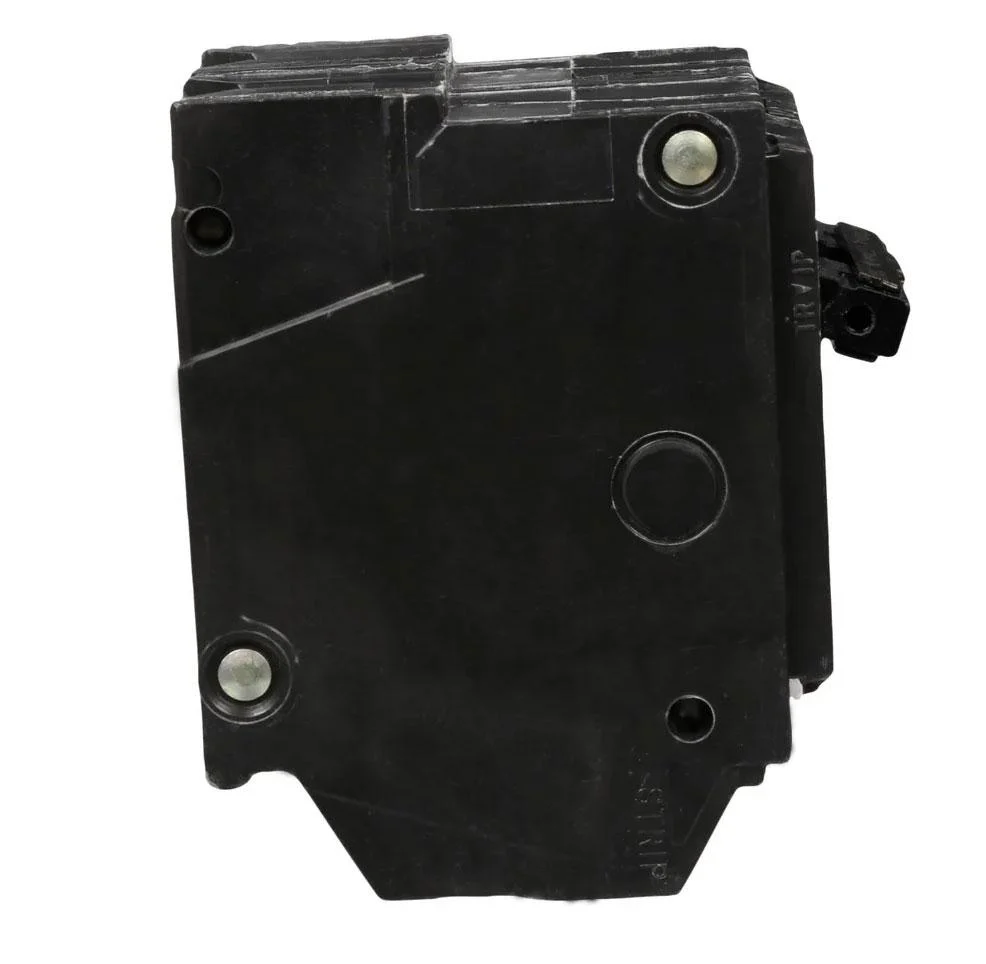

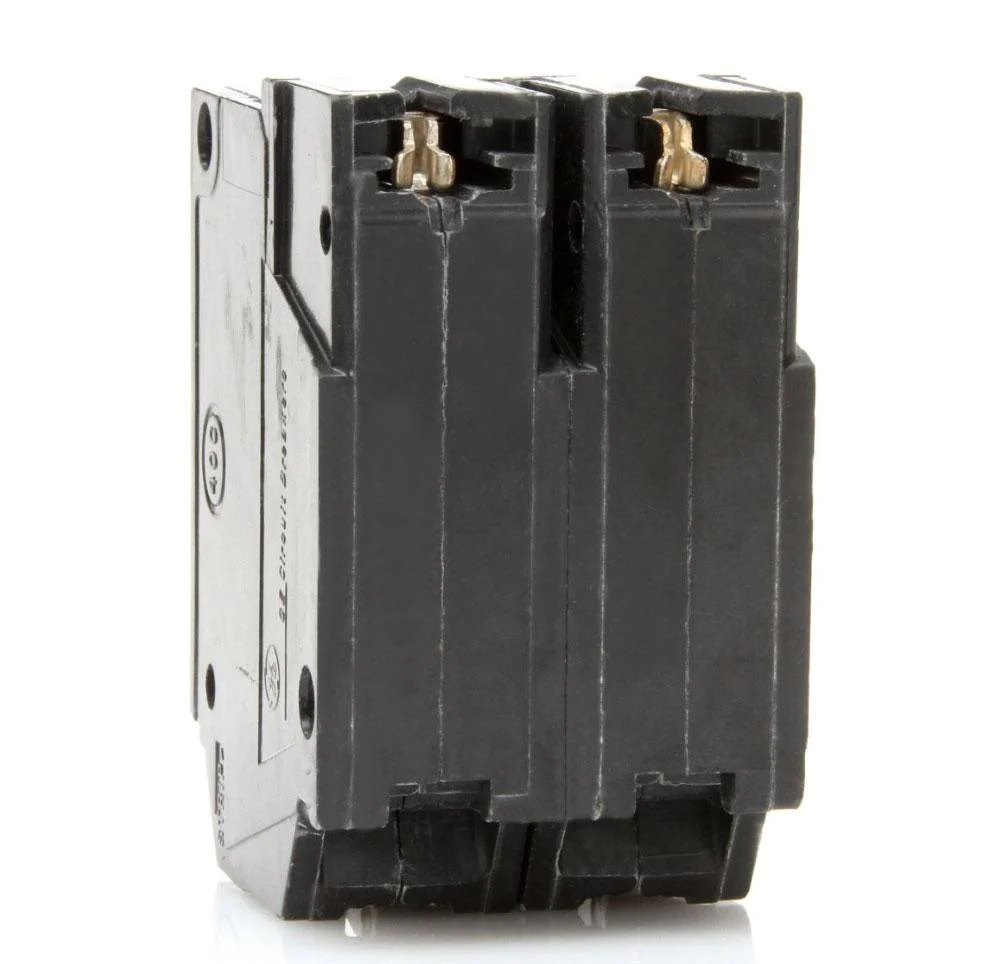

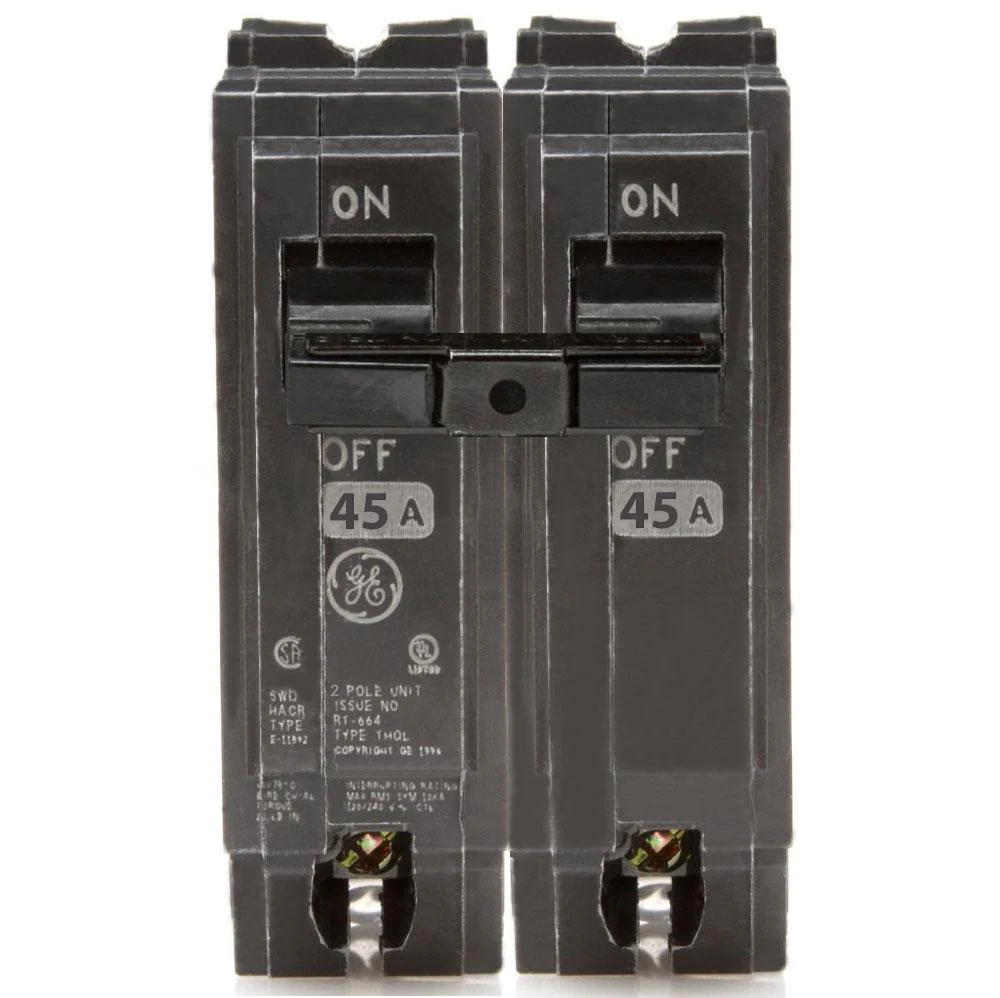

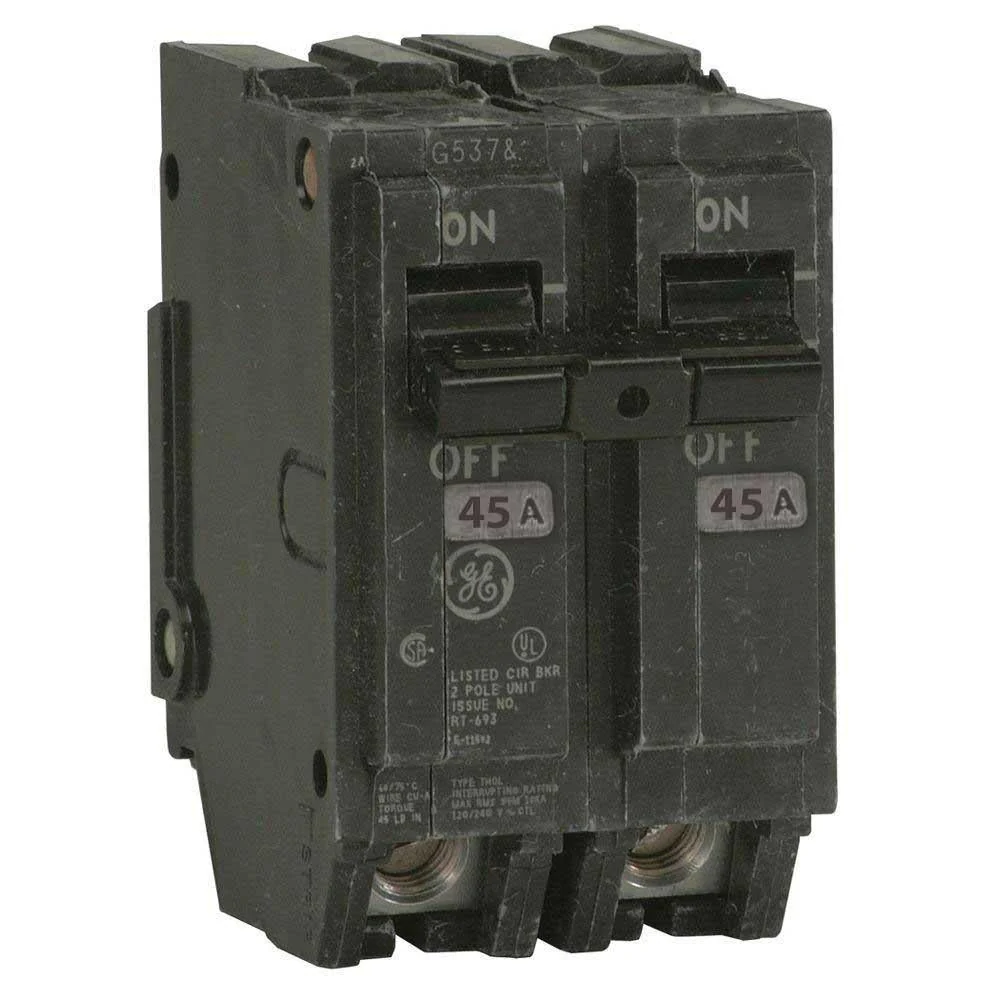

THQL2145 - GE - Circuit Breaker

THQL2145 - GE 45 Amp 2 Pole 240 Volt Plug-In Molded Case Circuit Breaker

General Electric THQL series double pole 45 ampere plug-in molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V complete with (LI) long-time and instantaneous trip functions and load side lug terminals suitable for reverse feed application.

• Manufacturer: General Electric
• Type: THQL
• Family: Q-Line
• UL Listed

Interrupting Rating

• AIC Rating: 10kA@120V
• AIC Rating: 10kA@240V

Specifications

• 2 Pole
• 45 Amp
• 240 Volt
• 1 Phase
• Protection: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous
• Dimensions (H x W x L): 3.9" x 2" x 2.3"
