Original: $322.99
-70%$322.99
$96.90The Story
Overview

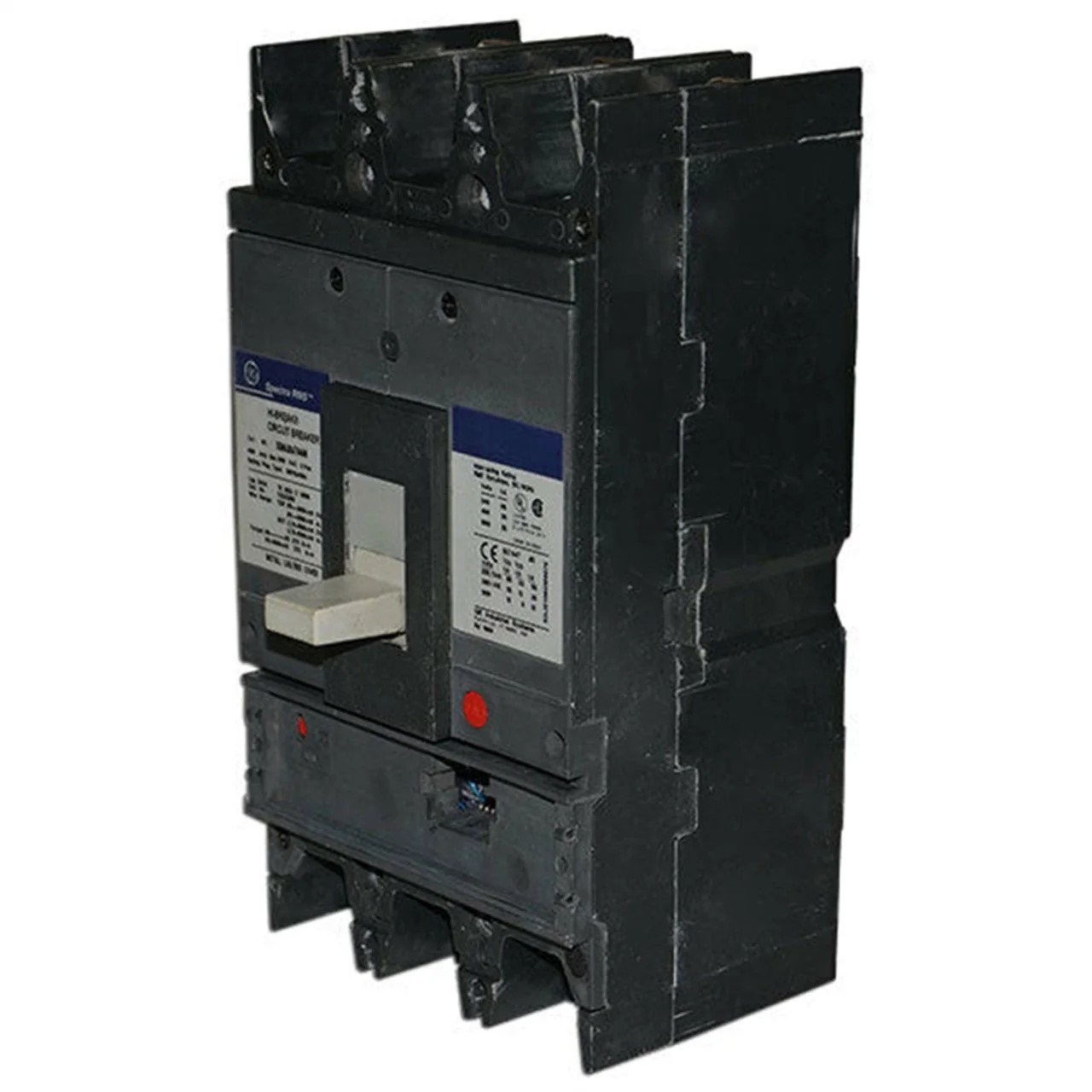

Product Specifications - SEHA36AT0060 - GE Molded Case Circuit Breaker
-
Part Number:
SEHA36AT0060 -
Manufacturer:
-
Family:
Spectra Series -
Pole:
3 -
Amp
60 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
SEHA -
Protection:
Solid State -
AIC Ratings:
25kA@480V
Dimensions
-
Dimensions (HxWxD):
6.31" x 4.12" x 3.38"
-
Weight:
5.45 lbs
Standards
Product Description - SEHA36AT0100 - GE Molded Case Circuit Breaker
Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600 and SK1200) have a digital, solid state, RMS sensing trip system with field installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous with tracking short-time is standard on all frames. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents.
Documentation
Â
Description
Overview
Product Specifications - SEHA36AT0060 - GE Molded Case Circuit Breaker
-
Part Number:
SEHA36AT0060 -
Manufacturer:
-
Family:
Spectra Series -
Pole:
3 -
Amp
60 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
SEHA -
Protection:
Solid State -
AIC Ratings:
25kA@480V
Dimensions
-
Dimensions (HxWxD):
6.31" x 4.12" x 3.38"
-
Weight:
5.45 lbs
Standards
Product Description - SEHA36AT0100 - GE Molded Case Circuit Breaker
Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600 and SK1200) have a digital, solid state, RMS sensing trip system with field installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous with tracking short-time is standard on all frames. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents.
Documentation
Â
