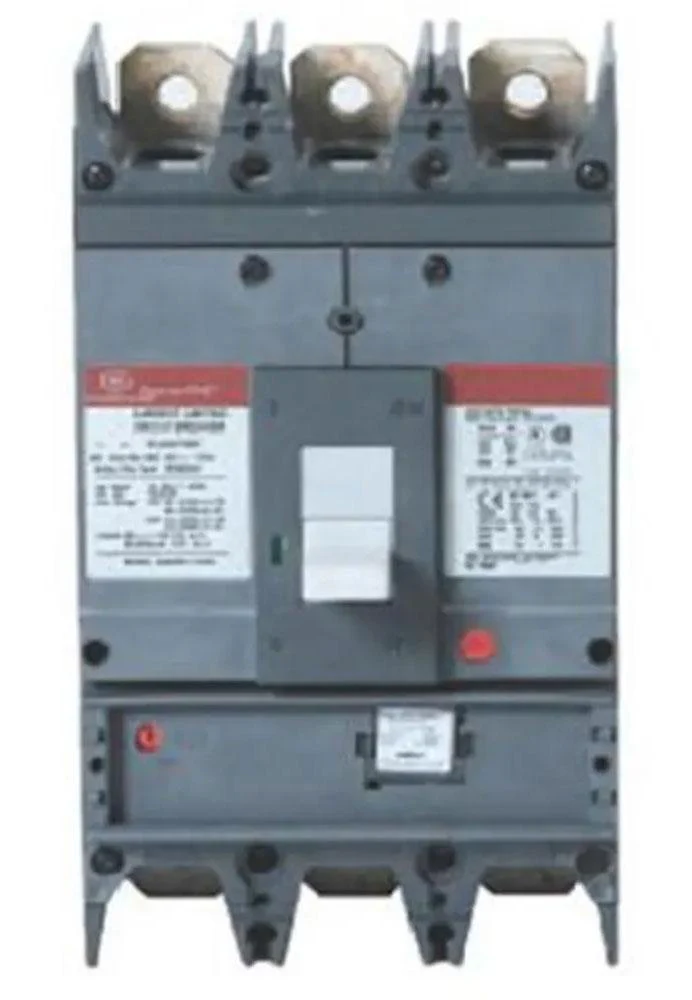

Product Specifications - SGPP36AT0400 - GE Molded Case Circuit Breaker
-
Part Number:
SGPP36AT0400 -
Manufacturer:
-
Family:
Spectra Series -
Pole:
3 -
Amp
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
SGPP -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
100kA@480V
Dimensions
-
Weight:
15.3 lbs
Standards
Product Description - SGPP36AT0400 - GE Molded Case Circuit Breaker
Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600 and SK1200) have a digital, solid state, RMS sensing trip system with field installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous with tracking short-time is standard on all frames. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents.
