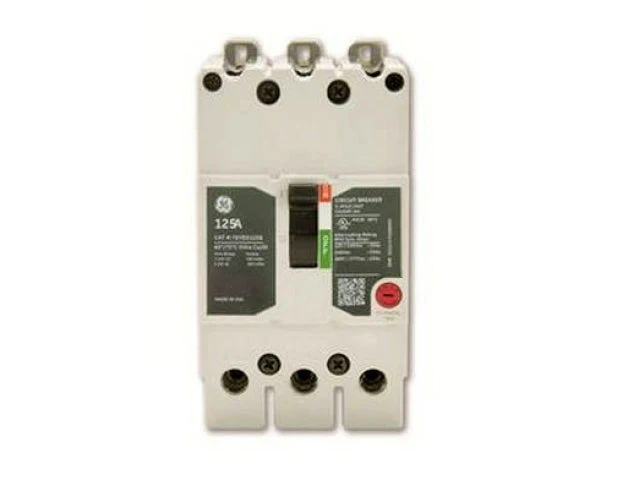

Product Specifications - TEYD3090B - GE Molded Case Circuit Breaker
-
Part Number:
TEYD3090B -
Manufacturer:
-
Family:
TEYD Series -
Pole:
3 -
Amp
90 -
Volt:
480 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
TEYD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@480V
Dimensions
-
Dimensions (HxWxD):
5.2" x 3" x 3"
-
Weight:
2 lbs
Standards
Product Description - TEYD3090B - GE Molded Case Circuit Breaker
General Electric, TEYD Series, type TEYD, 3P, 3PH, 90A, 480/277V, 25kA@480V, standard interrupting capacity, 40 degree C, bolt-on, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, load side lug terminals, thermal magnetic.
