Product Specifications - THQL1120PGFT - General Electric Molded Case Circuit Breaker
-
Part Number:
THQL1120PGFT -
Manufacturer:
-
Pole:
1 -
Amp:
20 -
Volt:
120 -
Phase:
1
-
Category:
-
Connection:
Plug-In -
Type:
THQL -
Functions:
Long Time and Instantaneous Trip Functions -
Protection:
Thermal Magnetic
Standards

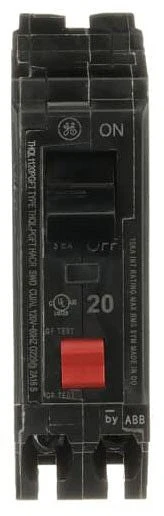

Product Description - THQL1120PGFT - General Electric Molded Case Circuit Breaker
The ABB THQL1120PGFT is a Q-Line plug-in molded case circuit breaker that operates at 120/240V with a current rating of 20 amps. It features a 10kAIC interrupting capacity and a 1-pole design, making it suitable for residential and light commercial electrical systems. This breaker is equipped with a plug-on neutral connection for simplified installation and enhanced circuit protection. Additionally, the breaker incorporates a ground fault interrupter (GFI) function with a self-test feature, providing reliable protection against ground faults at a sensitivity of 5 mA. This self-test feature helps ensure that the GFI protection is functioning correctly and enhances safety by automatically testing the breaker regularly to verify proper operation.
