CR123F104C - General Electrics - Heater Element

Overview

Product Specifications - CR123F104C - General Electrics Heater Element

Dimensions

Standards

Product Description - CR123F104C - General Electrics Heater Element

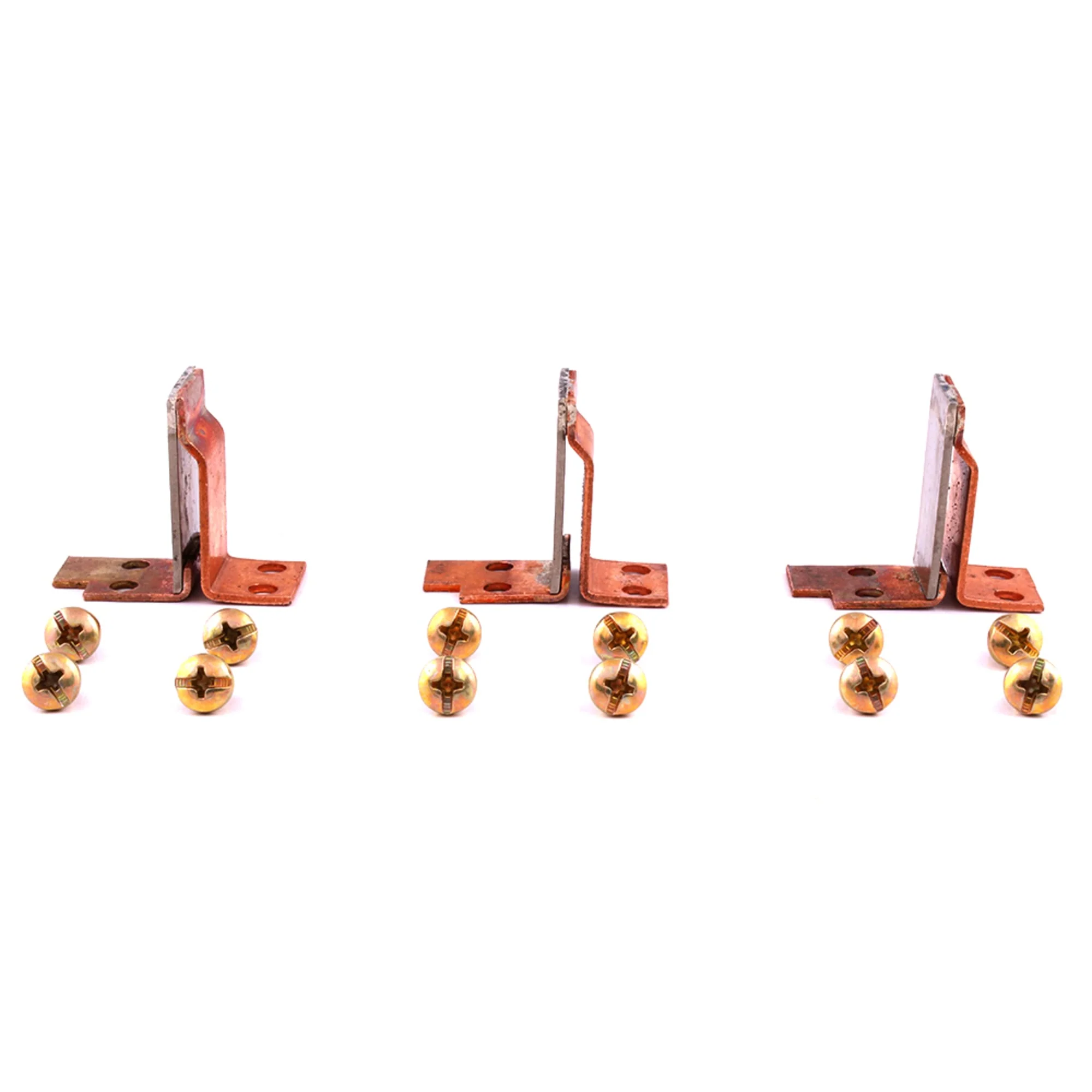

CR123F104C - A thermal overload heater element from General Electric's CR123F Series (Type CR123F). It is an ambient-compensated heater rated for 82.2-427 amps. Max fuse rating is 275. Open rated for 87.50-92.30 amps, enclosed rated for 82.20-88.70 amps. Suitable for use with thermal overload relays, magnetic motor starters & motor controls. NEMA size 3 rated for 82.20-94.80 amps, NEMA size 4 rated for 86.00-100.00 amps, NEMA size 5 rated for 193.00-213.00 amps.
