CR123F614B - General Electrics - Heater Element

Overview

Product Specifications - CR123F614B - General Electrics Heater Element

Dimensions

Standards

Product Description - CR123F614B - General Electrics Heater Element

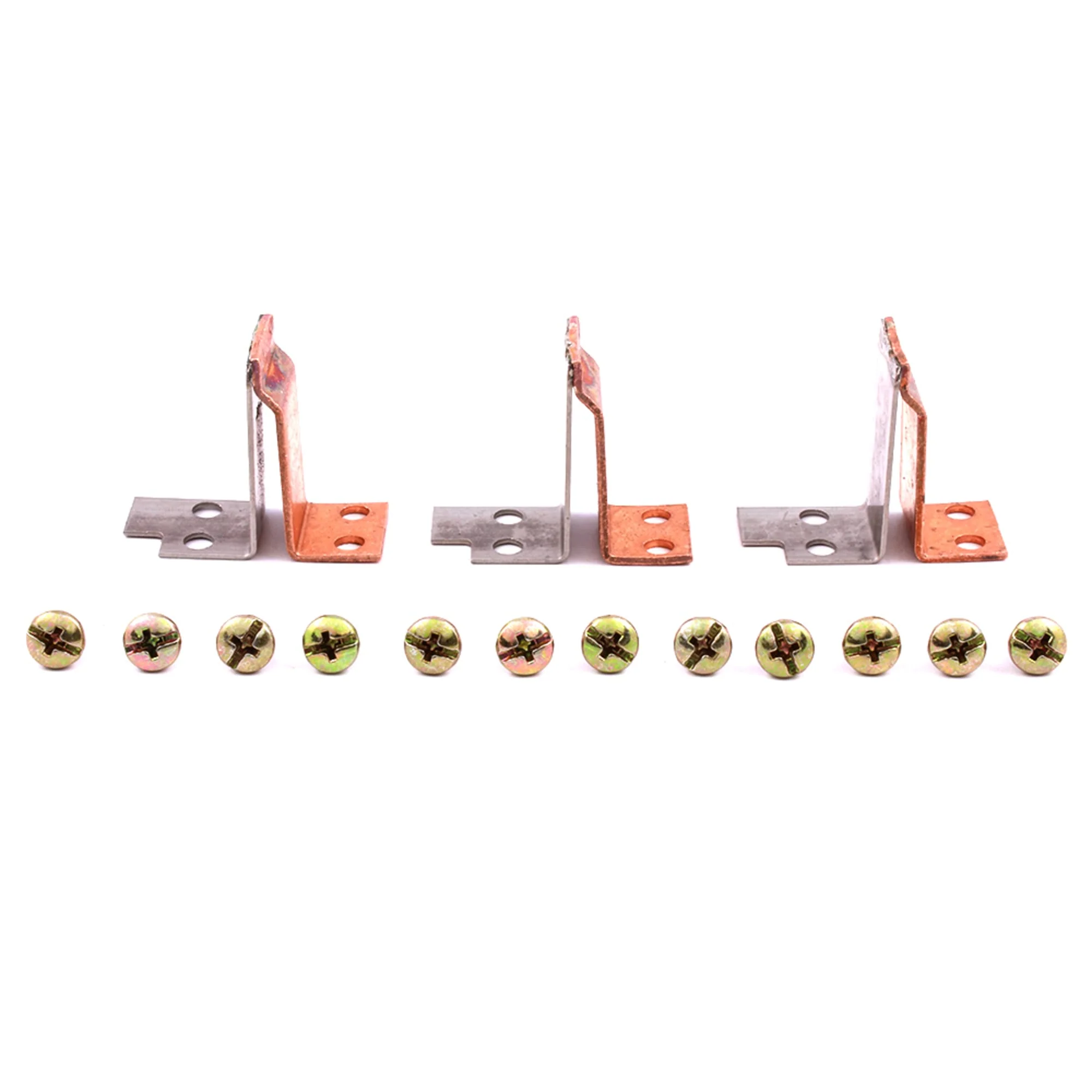

CR123F614B - A thermal overload heater element from General Electric's CR123F Series (Type CR123F). It is an ambient-compensated heater rated for 48.4-241 amps. Max fuse rating is 175. Open rated for 52.10-53.90 amps, enclosed rated for 51.00-52.60 amps. Suitable for use with thermal overload relays, magnetic motor starters & motor controls. NEMA size 3 rated for 49.30-56.80 amps, NEMA size 4 rated for 51.10-59.00 amps, NEMA size 5 rated for 110.00-120.00 amps.
