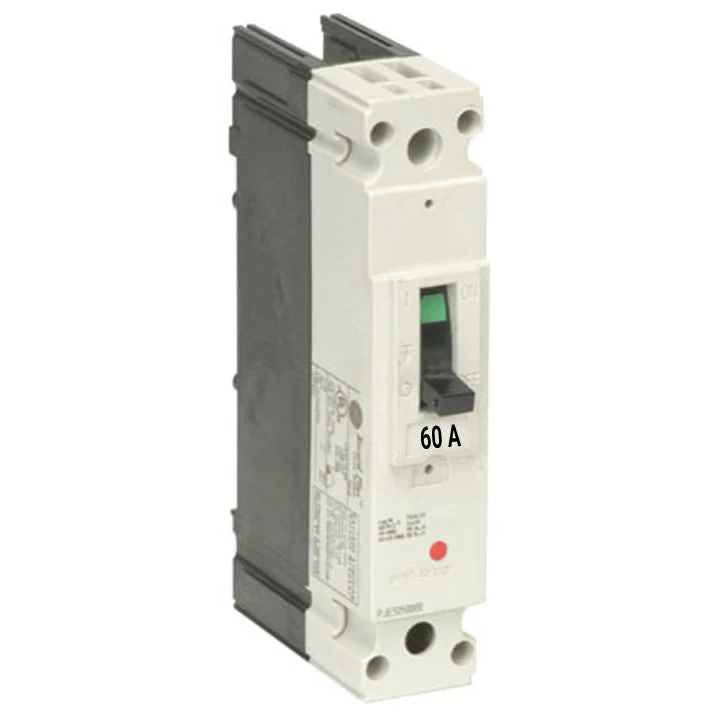

Product Specifications - FBV16TE060RV - General Electrics Molded Case Circuit Breakers
-
Part Number:
FBV16TE060RV -
Manufacturer:
-
Family:
Record Plus -
Pole:
1 -
Amp
60 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Bolt-On -
Type:
FBV -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
150kA@480V
Dimensions
-
Dimensions (HxWxD):
8.75 x 3.5 x 4.75 -
Weight:
7 lb
Standards
Product Description - FBV16TE060RV - General Electrics Molded Case Circuit Breakers
FBV16TE060RV, a member of General Electric's Record Plus series, is a molded case circuit breaker with the FBV type and FB100 frame. Suitable for single-phase (1PH) applications, it boasts a 60A current capacity and a standard interrupting capacity of 150kA@480V. The Bolt-On installation, along with Long-Time (LI) and Instantaneous trip functions, load side lug terminals, panel connections, and fixed Thermal Magnetic features, enhances its functionality in your electrical system.
