Product Specifications - FBV36TE060RV - General Electrics Molded Case Circuit Breakers
-
Part Number:
FBV36TE060RV -
Manufacturer:
-
Family:
Record Plus -
Pole:
3 -
Amp
60 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
FBV -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
150kA@480V
Dimensions
-
Dimensions (HxWxD):
9 x 4.75 x 5 -
Weight:
7 lb
Standards
Product Description - FBV36TE060RV - General Electrics Molded Case Circuit Breakers

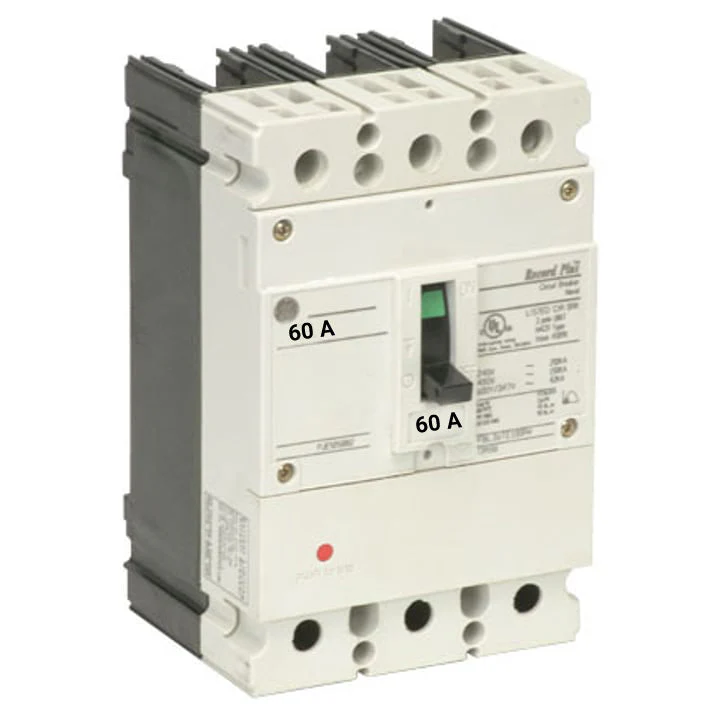

FBV36TE060RV, a molded case circuit breaker from General Electric's Record Plus series, this product features the FBV type and FB100 frame specifications. Designed for three-phase (3PH) applications, it offers a 60A current capacity and a standard interrupting capacity of 150kA@480V. The Bolt-On installation, along with Long-Time (LI) and Instantaneous trip functions, load side lug terminals, panel connections, and fixed Thermal Magnetic features, ensures efficient and reliable performance in your electrical system.
