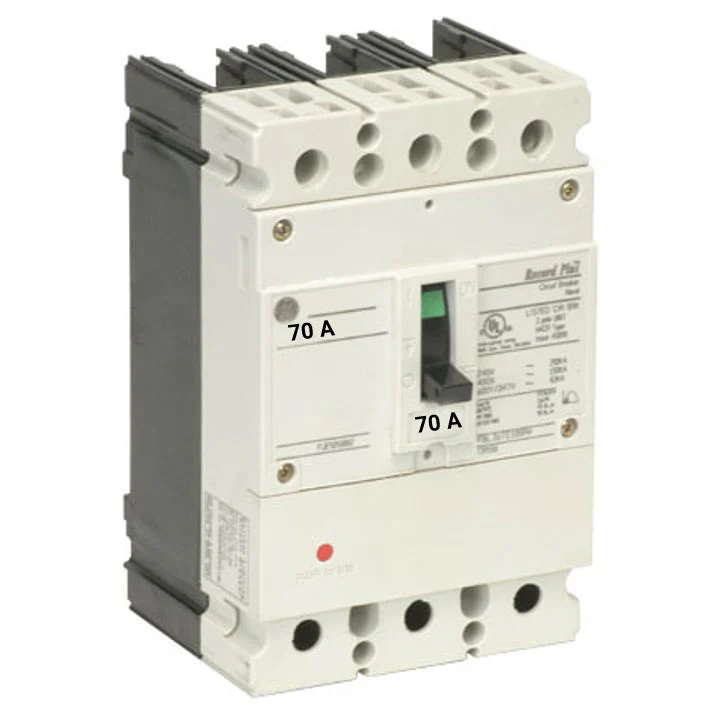

Product Specifications - FBV36TE070RV - General Electrics Molded Case Circuit Breakers
-
Part Number:
FBV36TE070RV -
Manufacturer:
-
Family:
Record Plus -
Pole:
3 -
Amp
70 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
FBV -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
150kA@480V
Dimensions
-
Dimensions (HxWxD):
8.75 x 4.5 x 5 -
Weight:
7 lb
Standards
Product Description - FBV36TE070RV - General Electrics Molded Case Circuit Breakers
For FBV36TE070RV, another product from General Electric's Record Plus series, featuring the FBV type and FB100 frame, this molded case circuit breaker is designed for three-phase (3PH) applications. It offers a 70A current capacity and a standard interrupting capacity of 150kA@480V. The Bolt-On installation, along with Long-Time (LI) and Instantaneous trip functions, load side lug terminals, panel connections, and fixed Thermal Magnetic features, provides a comprehensive solution for your electrical needs.
