The Story

Overview

Product Specifications - SKLL36AT1200 - General Electrics Molded Case Circuit Breakers

  • Part Number:

    SKLL36AT1200

  • Manufacturer:

    General Electric

  • Family:

    Spectra Series

  • Pole:

    3

  • Amp

    1200

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case Circuit Breakers / 3-Pole

  • Connection:

    Bolt-On

  • Type:

    SKLL

  • Functions:

    LSI - Long-Time, Short-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    65kA@480V

Dimensions

  • Dimensions (HxWxD):

    23.5 x 20 x 18

  • Weight:

    8 lb

Standards

CSA Approved logo

Product Description - SKLL36AT1200 - General Electrics Molded Case Circuit Breakers

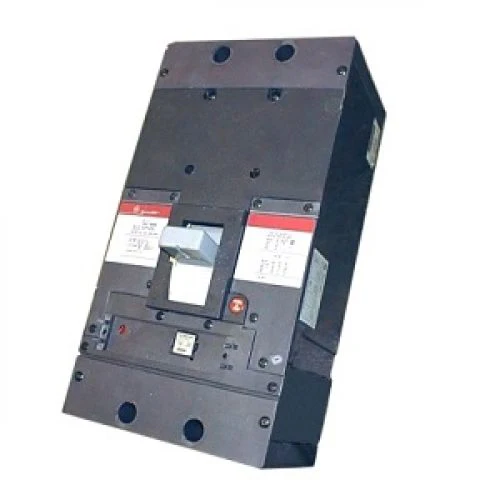

SKLL36AT1200 Spectra Series Circuit Breaker: General Electric Spectra Series, type SKLL, 3P, 3PH, 1200A, 600V, 65kA@480V. High interrupting capacity, current limiting, 100% rated, Bolt-On, suitable for reverse-fed applications. UL listed, complete with interchangeable RMS trip unit with LSI (Long-Time, Short-Time, and Instantaneous trip functions). Lugs not included. Solid State Electronic, molded case circuit breakers.

Description

Overview

Product Specifications - SKLL36AT1200 - General Electrics Molded Case Circuit Breakers

  • Part Number:

    SKLL36AT1200

  • Manufacturer:

    General Electric

  • Family:

    Spectra Series

  • Pole:

    3

  • Amp

    1200

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case Circuit Breakers / 3-Pole

  • Connection:

    Bolt-On

  • Type:

    SKLL

  • Functions:

    LSI - Long-Time, Short-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    65kA@480V

Dimensions

  • Dimensions (HxWxD):

    23.5 x 20 x 18

  • Weight:

    8 lb

Standards

CSA Approved logo

Product Description - SKLL36AT1200 - General Electrics Molded Case Circuit Breakers

SKLL36AT1200 Spectra Series Circuit Breaker: General Electric Spectra Series, type SKLL, 3P, 3PH, 1200A, 600V, 65kA@480V. High interrupting capacity, current limiting, 100% rated, Bolt-On, suitable for reverse-fed applications. UL listed, complete with interchangeable RMS trip unit with LSI (Long-Time, Short-Time, and Instantaneous trip functions). Lugs not included. Solid State Electronic, molded case circuit breakers.
