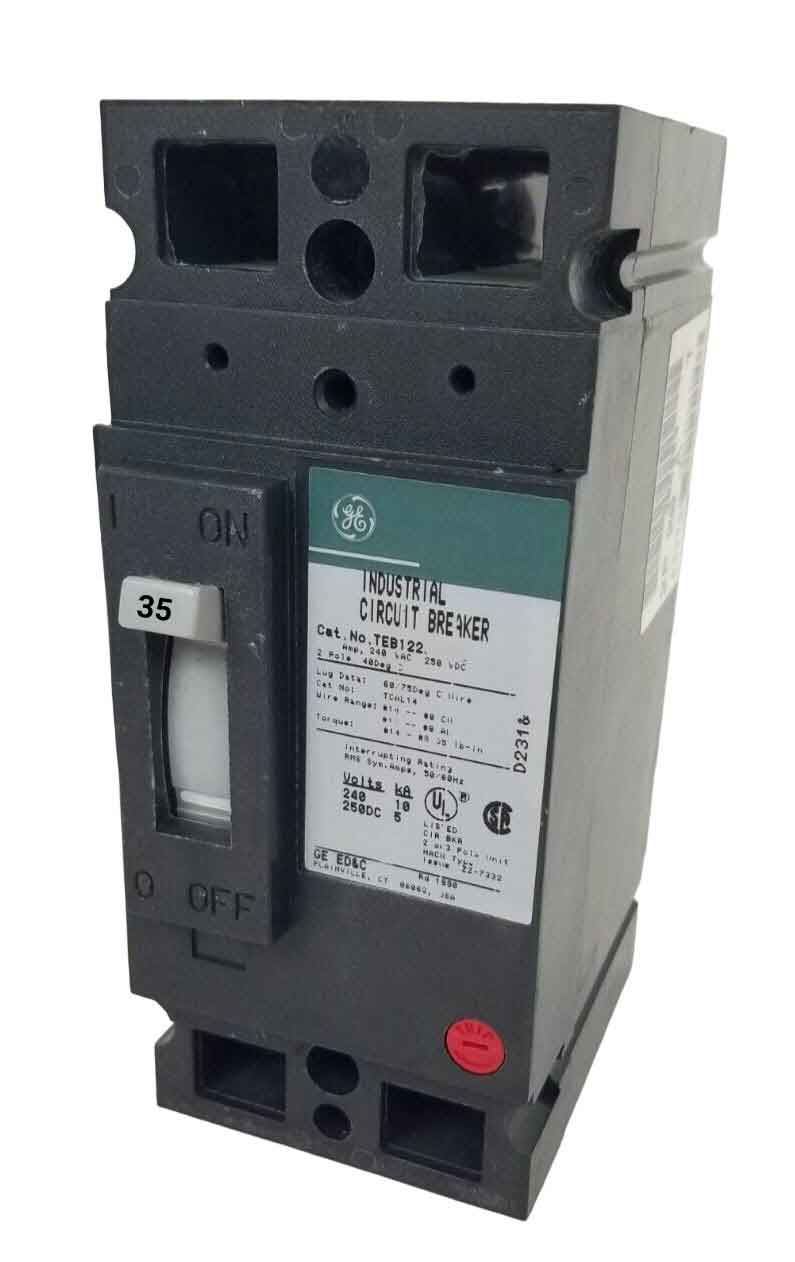

Product Specifications - TEB122035WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TEB122035WL -
Manufacturer:
-
Family:
E150 Line -
Pole:
2 -
Amp
35 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
TEB -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V
Dimensions
-
Dimensions (HxWxD):
6.5 x 2.75 x 4 -
Weight:
6 lb
Standards
Product Description - TEB122035WL - General Electrics Molded Case Circuit Breakers
TEB122035WL is another E150 Line molded case circuit breaker from General Electric. It belongs to the TEB type, designed for two-pole (2P), single-phase (1P) applications with a current rating of 35A and a voltage rating of 240V. With an interrupting capacity of 10kA@240V, it is Feed-Thru and Thermal Magnetic. This breaker comes complete with line and load side lug terminals and has a standard interrupting capacity of 40°C.
