Product Specifications - TECL36030 - General Electrics Molded Case Circuit Breakers
-
Part Number:
TECL36030 -
Manufacturer:
-
Family:
TECL Series -
Pole:
3 -
Amp
30 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TECL -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
3.37 x 4.12 x 8.18 -
Weight:
4 lb
Standards
Product Description - TECL36030 - General Electrics Molded Case Circuit Breakers

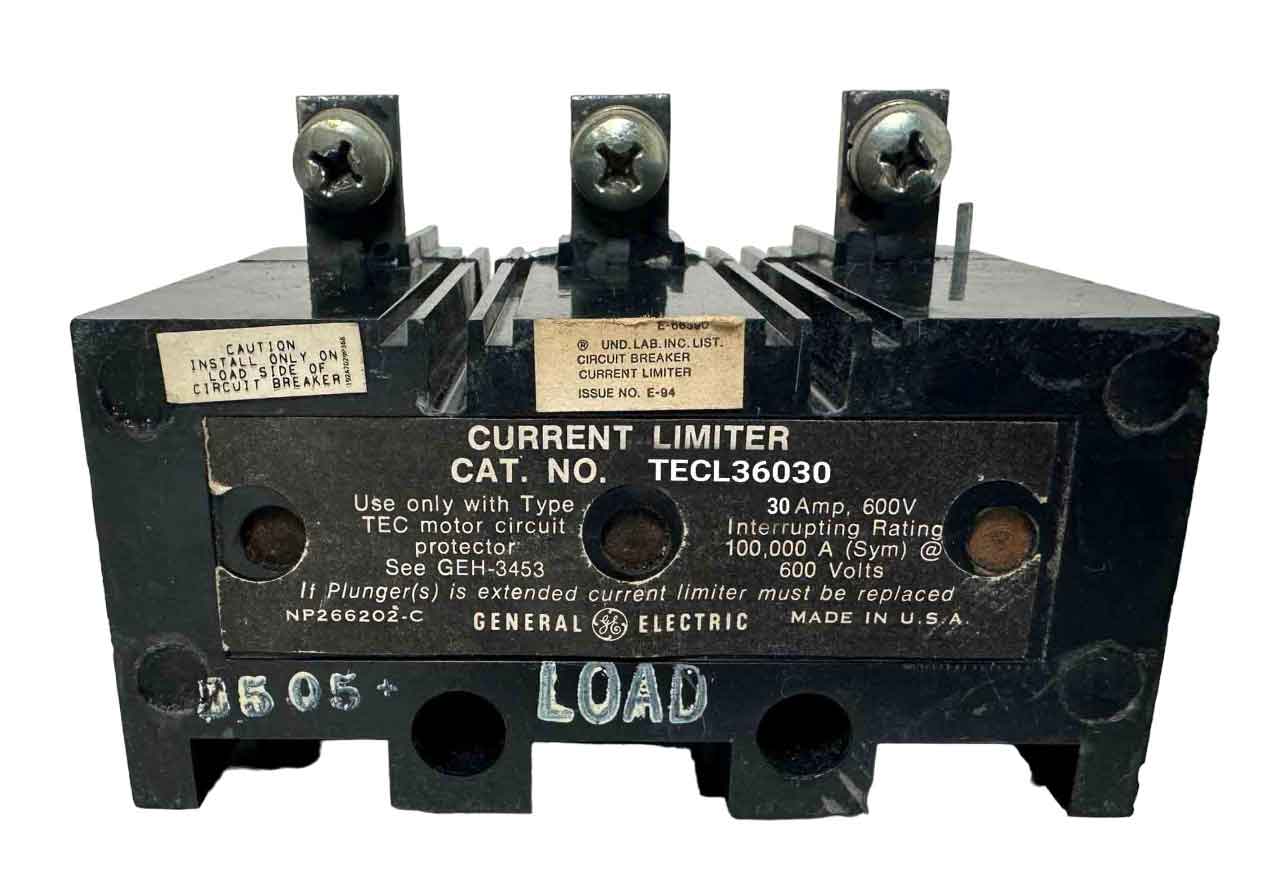

TECL36030 is part of the TECL Series molded case circuit breakers from General Electric. It belongs to the TECL type, designed for three-phase (3P) applications with a current rating of 30A and a voltage rating of 600V. With an interrupting capacity of 100kA@480V, it is Feed-Thru and UL listed, suitable for reverse fed applications. This breaker comes complete with I - Instantaneous protection only and line and load side lug terminals. It is a current limiter for Mag-Break MCP (Motor Circuit Protector) with a magnetic range of 90-390A.
