From $442.50
Original: $1,474.99
-70%TFJ236090WL - General Electrics - Molded Case Circuit Breakers—
$1,474.99
$442.50The Story
Overview
Product Specifications - TFJ236090WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TFJ236090WL -
Manufacturer:
-
Family:
F225 Line -
Pole:
3 -
Amp
90 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TFJ -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
22kA@480V
Dimensions
-
Dimensions (HxWxD):
3.81 x 4.12 x 10.12 -
Weight:
15 lb
Standards
Product Description - TFJ236090WL - General Electrics Molded Case Circuit Breakers

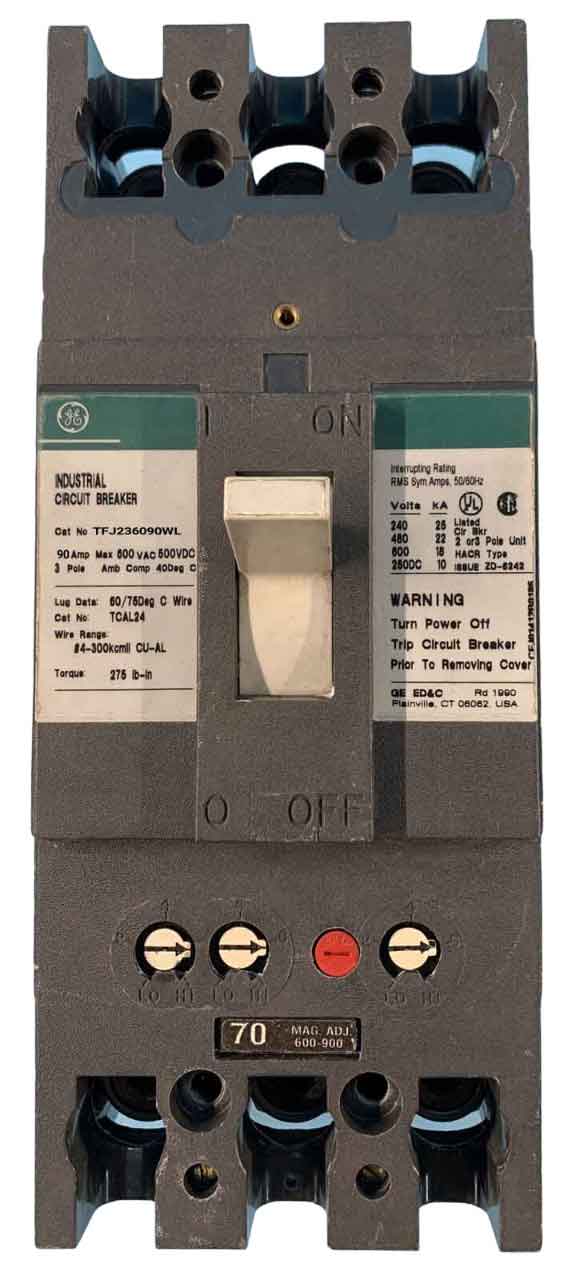

The TFJ236090WL, part of the F225 Line, is a 3-pole, 90A molded case circuit breaker with a standard interrupting capacity of 22kA@480V. It comes complete with line & load side lug terminals and a non-interchangeable trip unit. Suitable for reverse feed, it operates at 40ºC, providing effective Feed-Thru protection.
