Original: $2,362.99
-70%$2,362.99
$708.90The Story
Overview

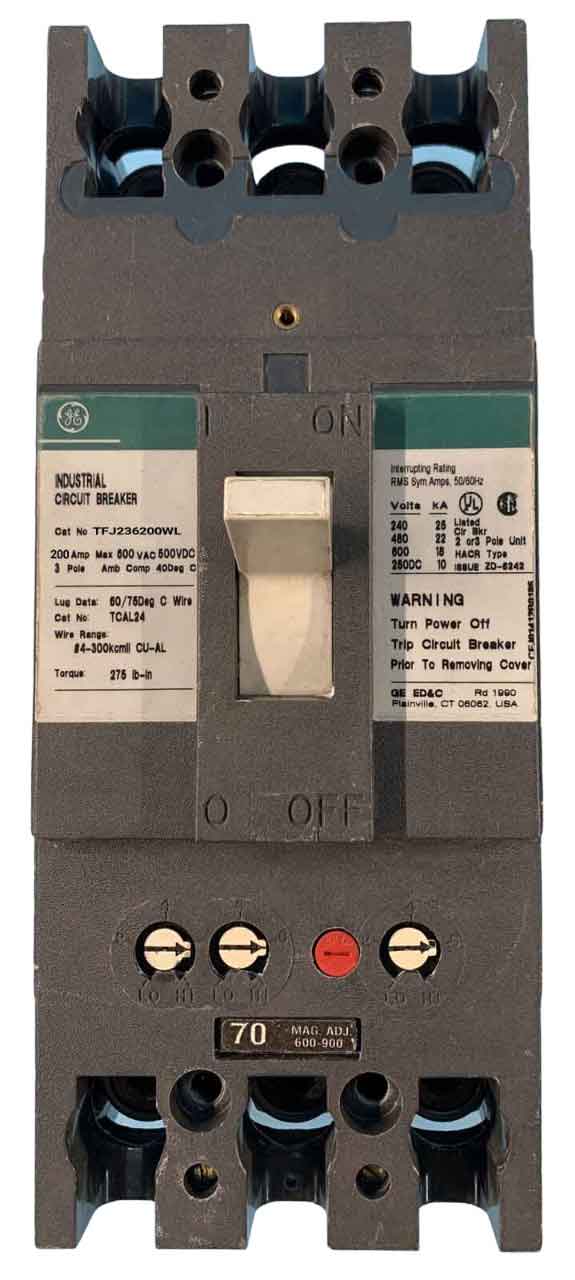

Product Specifications - TFJ236200WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TFJ236200WL -
Manufacturer:
-
Family:
F225 Line -
Pole:
3 -
Amp
200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TFJ -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
22kA@480V
Dimensions
-
Dimensions (HxWxD):
3.8 x 4.1 x 10.1 -
Weight:
15 lb
Standards
Product Description - TFJ236200WL - General Electrics Molded Case Circuit Breakers
General Electric's TFJ236200WL, belonging to the F225 Line, is a robust 3P, 200A molded case circuit breaker designed for 600V systems. With a standard interrupting capacity of 22kA@480V, this breaker is complete with both line and load side lug terminals. Its non-interchangeable trip unit enhances safety, making it suitable for reverse feed applications. Operating at 40ºC, it features a Feed-Thru design and utilizes thermal magnetic technology for reliable circuit protection.
Description
Overview
Product Specifications - TFJ236200WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TFJ236200WL -
Manufacturer:
-
Family:
F225 Line -
Pole:
3 -
Amp
200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TFJ -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
22kA@480V
Dimensions
-
Dimensions (HxWxD):
3.8 x 4.1 x 10.1 -
Weight:
15 lb
Standards
Product Description - TFJ236200WL - General Electrics Molded Case Circuit Breakers
General Electric's TFJ236200WL, belonging to the F225 Line, is a robust 3P, 200A molded case circuit breaker designed for 600V systems. With a standard interrupting capacity of 22kA@480V, this breaker is complete with both line and load side lug terminals. Its non-interchangeable trip unit enhances safety, making it suitable for reverse feed applications. Operating at 40ºC, it features a Feed-Thru design and utilizes thermal magnetic technology for reliable circuit protection.
