Original: $1,474.99
-70%$1,474.99
$442.50The Story
Overview
Product Specifications - TFK236090WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TFK236090WL -
Manufacturer:
-
Family:
F225 Line -
Pole:
3 -
Amp
90 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TFK -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
22kA@480V
Dimensions
-
Weight:
15 lb
Standards
Product Description - TFK236090WL - General Electrics Molded Case Circuit Breakers

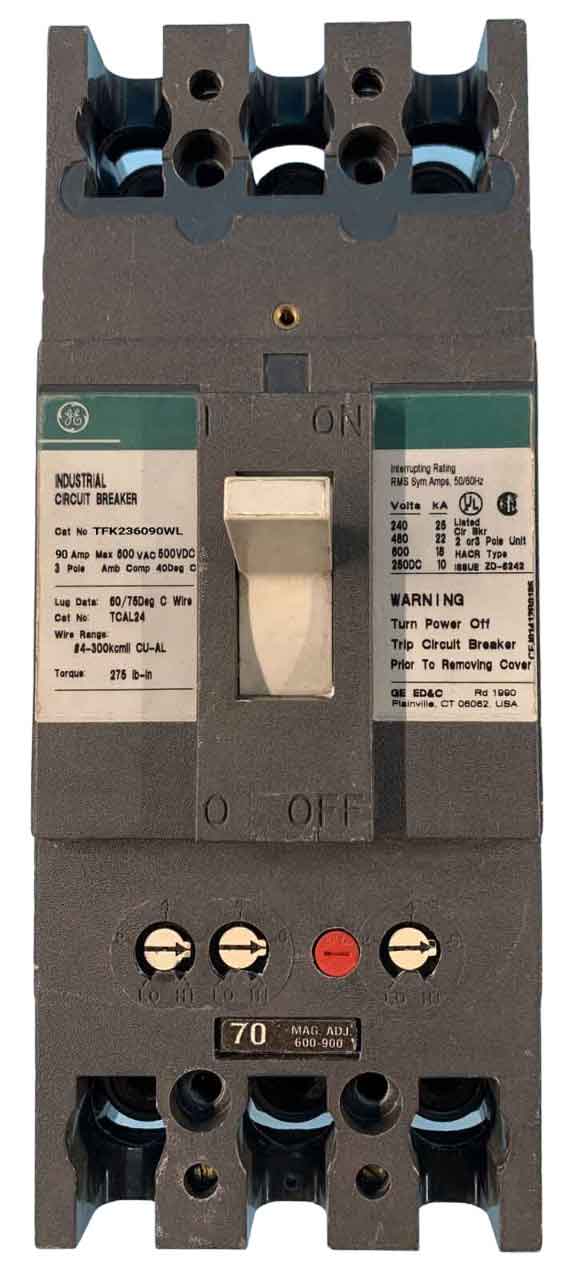

The TFK236090WL is part of General Electric's F225 Line, offering a 3P, 90A molded case circuit breaker designed for 600V systems. With a standard interrupting capacity and operating at 40ºC, this breaker ensures reliable circuit protection. It comes complete with both line and load side lug terminals, providing convenient and secure connections. The TFK236090WL features an interchangeable trip unit, allowing users to customize settings based on specific requirements. Its Feed-Thru design enhances adaptability for various configurations, making it a versatile choice for diverse applications.
