Product Specifications - TFK236125WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TFK236125WL -
Manufacturer:
-
Family:
F225 Line -
Pole:
3 -
Amp
125 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TFK -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
22kA@480V
Dimensions
-
Weight:
15 lb
Standards
Product Description - TFK236125WL - General Electrics Molded Case Circuit Breakers

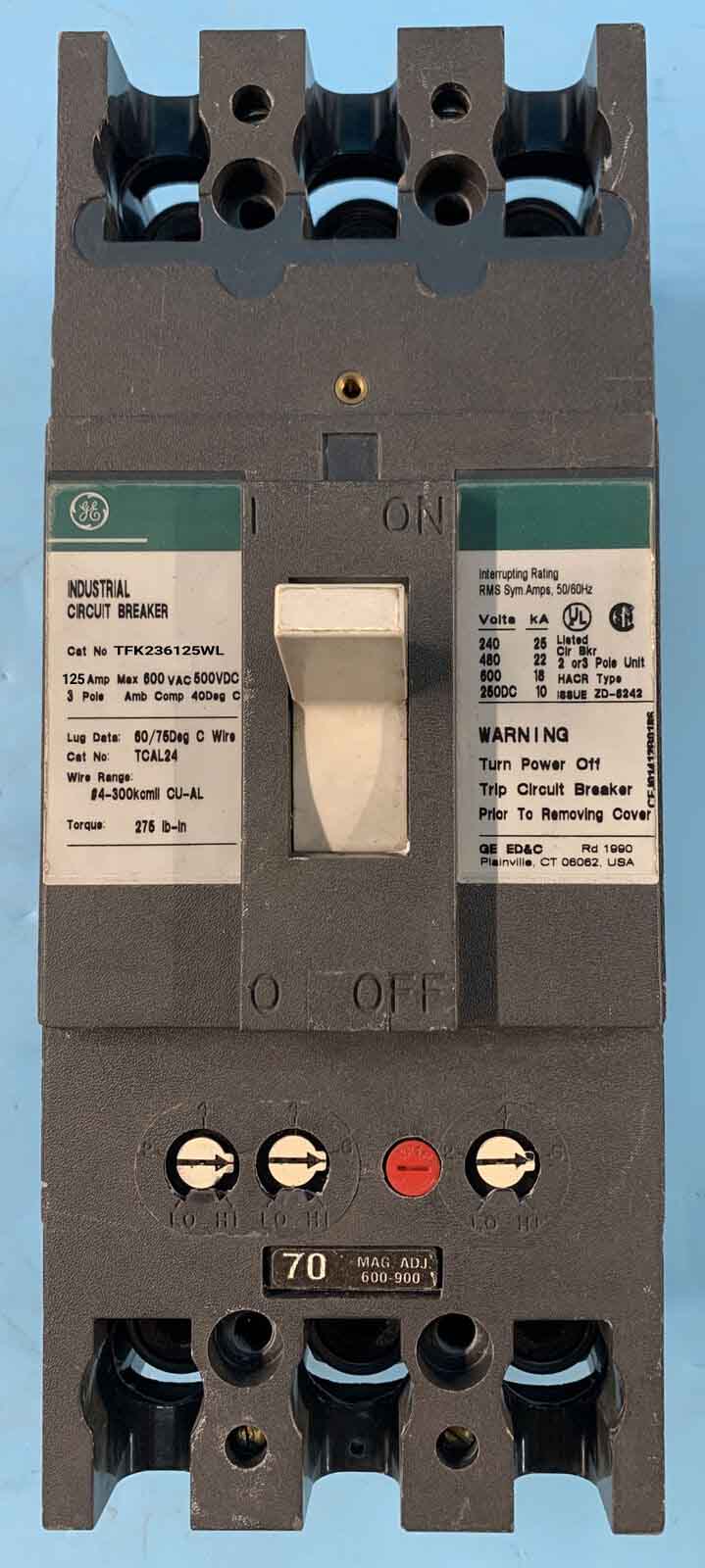

General Electric's F225 Line introduces the TFK236125WL, a 3P, 125A molded case circuit breaker designed for 600V systems. With a standard interrupting capacity and operating at 40ºC, this breaker provides reliable circuit protection. Featuring both line and load side lug terminals, it offers versatile connectivity for various applications. The TFK236125WL includes an interchangeable trip unit, allowing users to customize settings based on specific requirements. Its Feed-Thru design enhances adaptability for different configurations, making it suitable for various applications.
