Overview

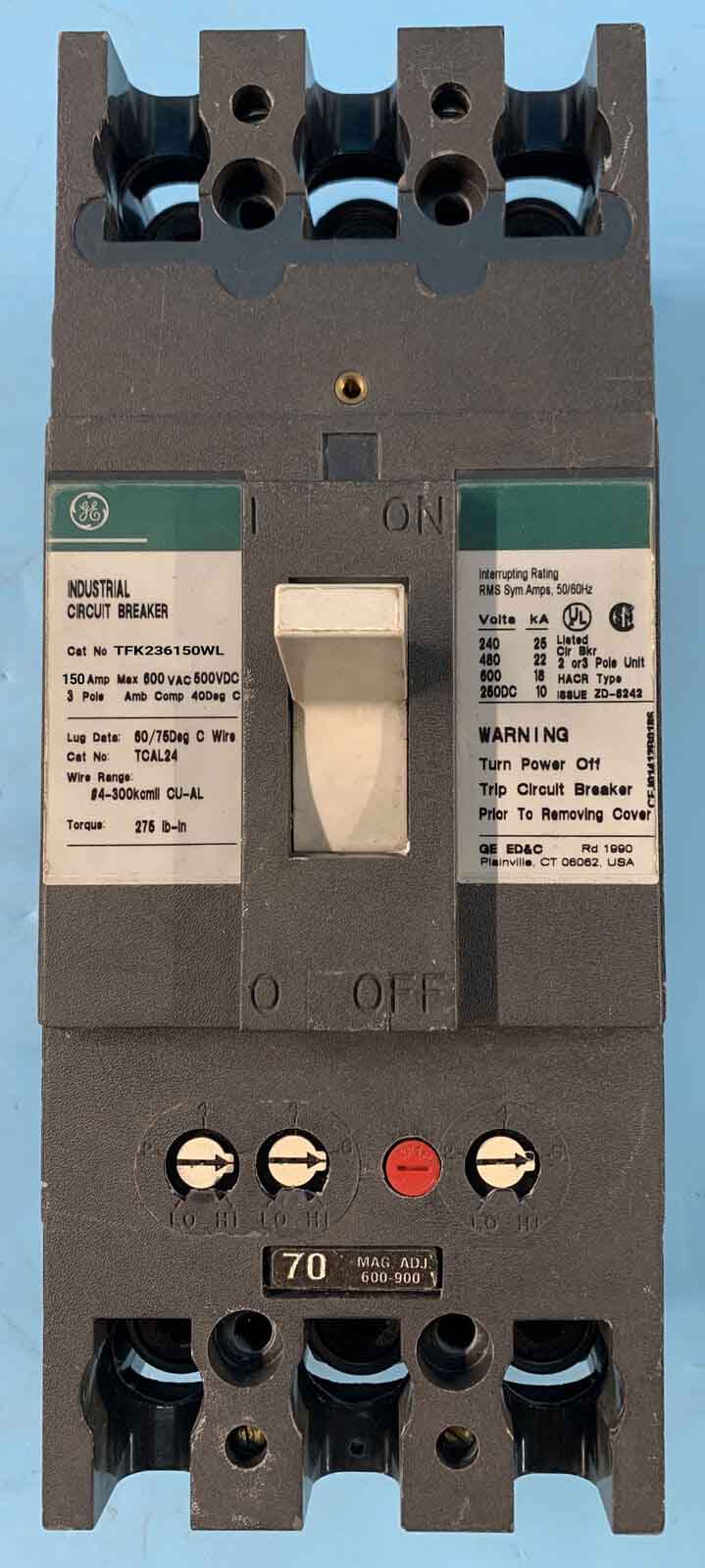

Product Specifications - TFK236150WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TFK236150WL -
Manufacturer:
-
Family:
F225 Line -
Pole:
3 -
Amp
150 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TFK -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
22kA@480V
Dimensions
-
Weight:
15 lb
Standards
Product Description - TFK236150WL - General Electrics Molded Case Circuit Breakers
As part of General Electric's F225 Line, the TFK236150WL is a 3P, 150A molded case circuit breaker designed for 600V systems. With a standard interrupting capacity and operating at 40ºC, this breaker ensures reliable circuit protection. The inclusion of both line and load side lug terminals enhances its versatility, allowing for secure and easy connections. The TFK236150WL is equipped with an interchangeable trip unit, enabling users to adjust settings based on specific requirements. Its Feed-Thru design adds to its adaptability for different configurations.
