Product Specifications - THED113025WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
THED113025WL -
Manufacturer:
-
Family:
E150 Line -
Pole:
1 -
Amp
25 -
Volt:
277 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
THED -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@277V
Dimensions
-
Dimensions (HxWxD):
3.88 x 1.38 x 6.38 -
Weight:
4 lb
Standards
Product Description - THED113025WL - General Electrics Molded Case Circuit Breakers

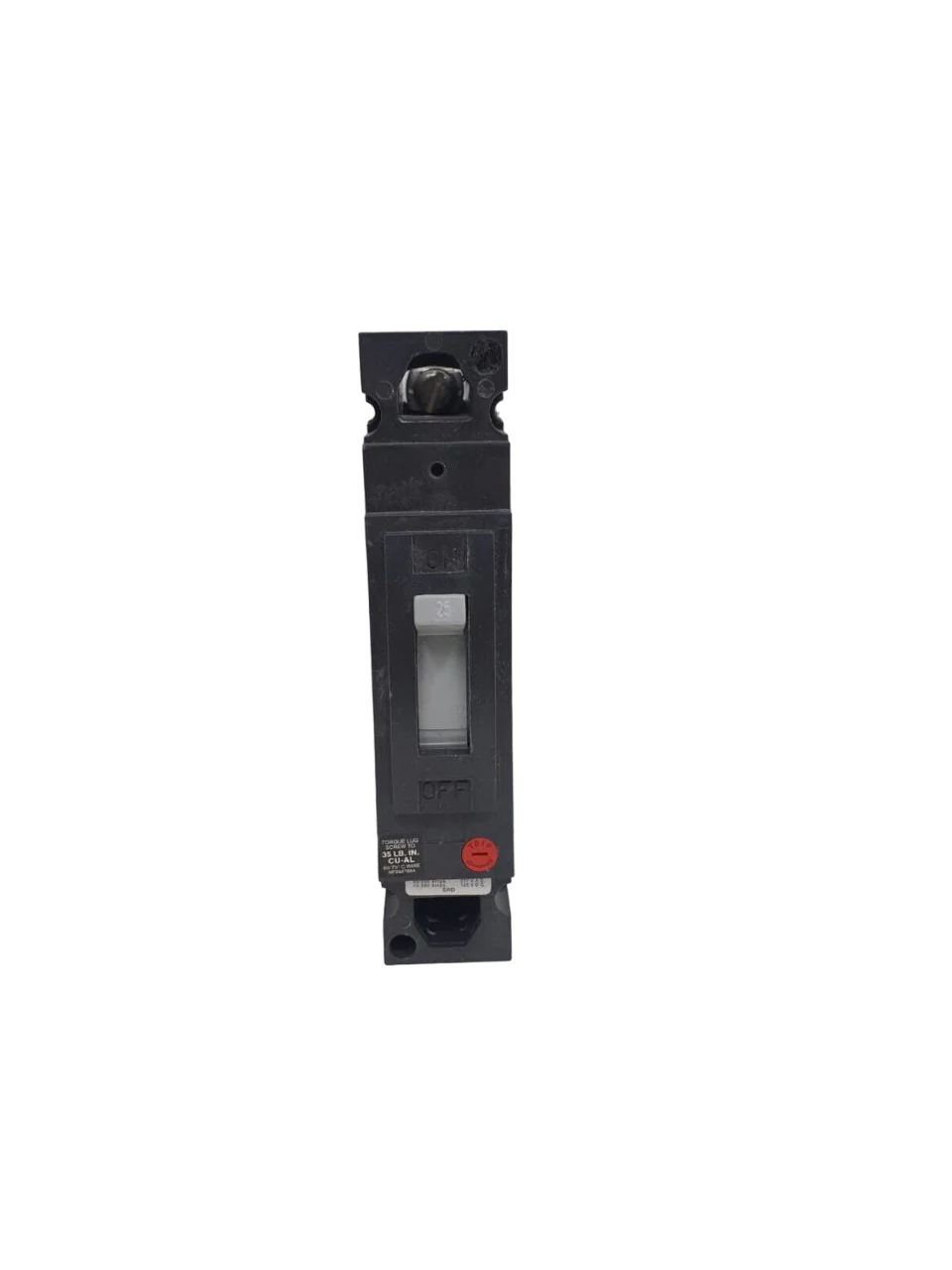

The THED113025WL is part of General Electric's E150 Line, offering a 1P, 25A molded case circuit breaker designed for 277V systems. With a high interrupting capacity of 65kA@277V and operating at 40ºC, this breaker ensures robust circuit protection. It comes complete with both line and load side lug terminals, providing convenient and secure connections. The THED113025WL features a Feed-Thru design, enhancing its adaptability for different configurations.
