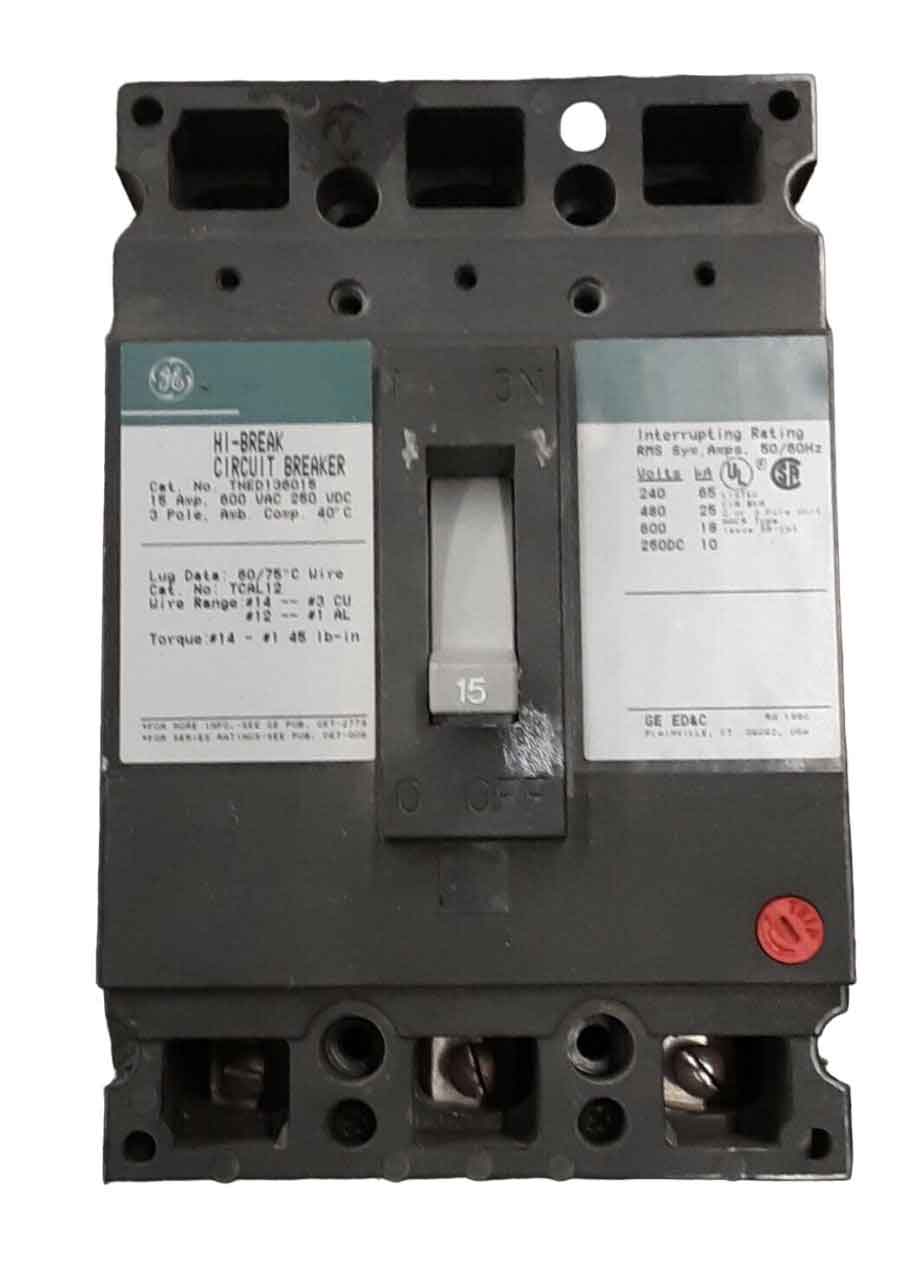

Product Specifications - THED136015WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
THED136015WL -
Manufacturer:
-
Family:
E150 Line -
Pole:
3 -
Amp
15 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
THED -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@480V
Dimensions
-
Dimensions (HxWxD):
3.37 x 4.12 x 6.31 -
Weight:
4 lb
Standards
Product Description - THED136015WL - General Electrics Molded Case Circuit Breakers
The THED136015WL from General Electric's E150 Line is a 3P, 15A molded case circuit breaker designed for 600V systems. With a high interrupting capacity of 25kA@480V, this breaker ensures robust protection for electrical circuits. Featuring both line and load side lug terminals, it offers versatile connectivity for various applications. Operating at 40ºC, it utilizes Thermal Magnetic technology for efficient and reliable circuit protection. The Feed-Thru design enhances its adaptability for different configurations.
