$495.60The Story
Overview

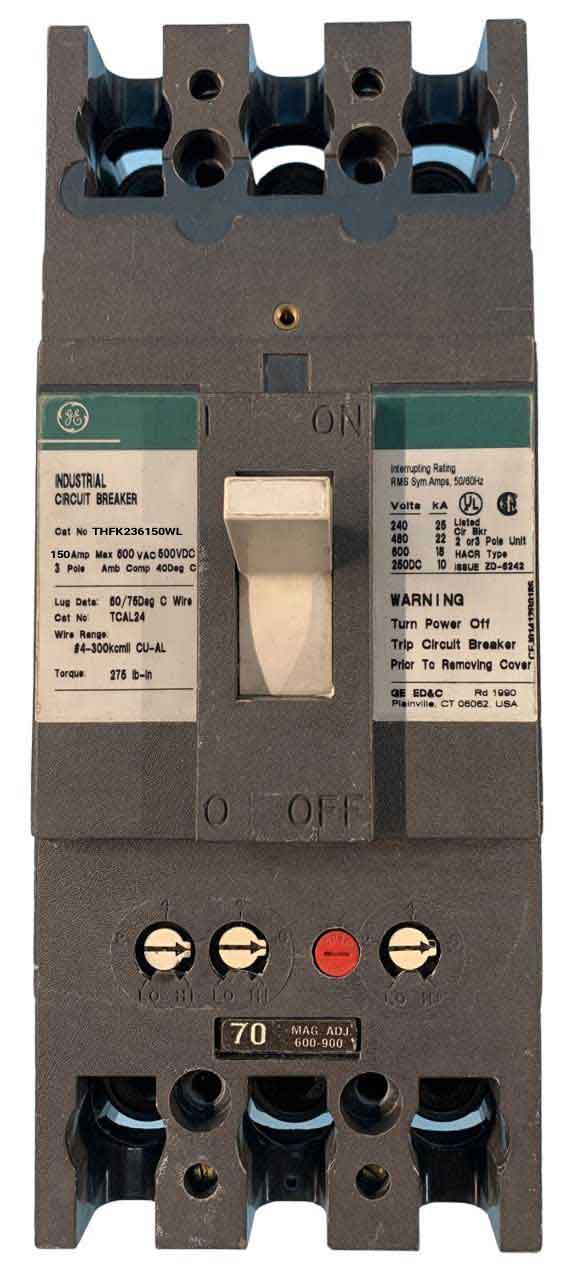

Product Specifications - THFK236150WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
THFK236150WL -
Manufacturer:
-
Family:
F225 Line -
Pole:
3 -
Amp
150 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
THFK -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@480V
Dimensions
-
Dimensions (HxWxD):
3.81 x 4.125 x 10.125 -
Weight:
12 lb
Standards
Product Description - THFK236150WL - General Electrics Molded Case Circuit Breakers
As part of General Electric's F225 Line, the THFK236150WL is a 3P, 150A molded case circuit breaker designed for 600V systems. With a high interrupting capacity of 25kA@480V, this breaker ensures robust protection for electrical circuits. The inclusion of both line and load side lug terminals and an interchangeable trip unit enhances its versatility, allowing for secure connections and customization based on specific requirements. Operating at 40ºC, it utilizes Thermal Magnetic technology for efficient and reliable circuit protection. The Feed-Thru design adds to its adaptability for various applications.
