Original: $4,052.99
-70%$4,052.99
$1,215.90The Story
Overview

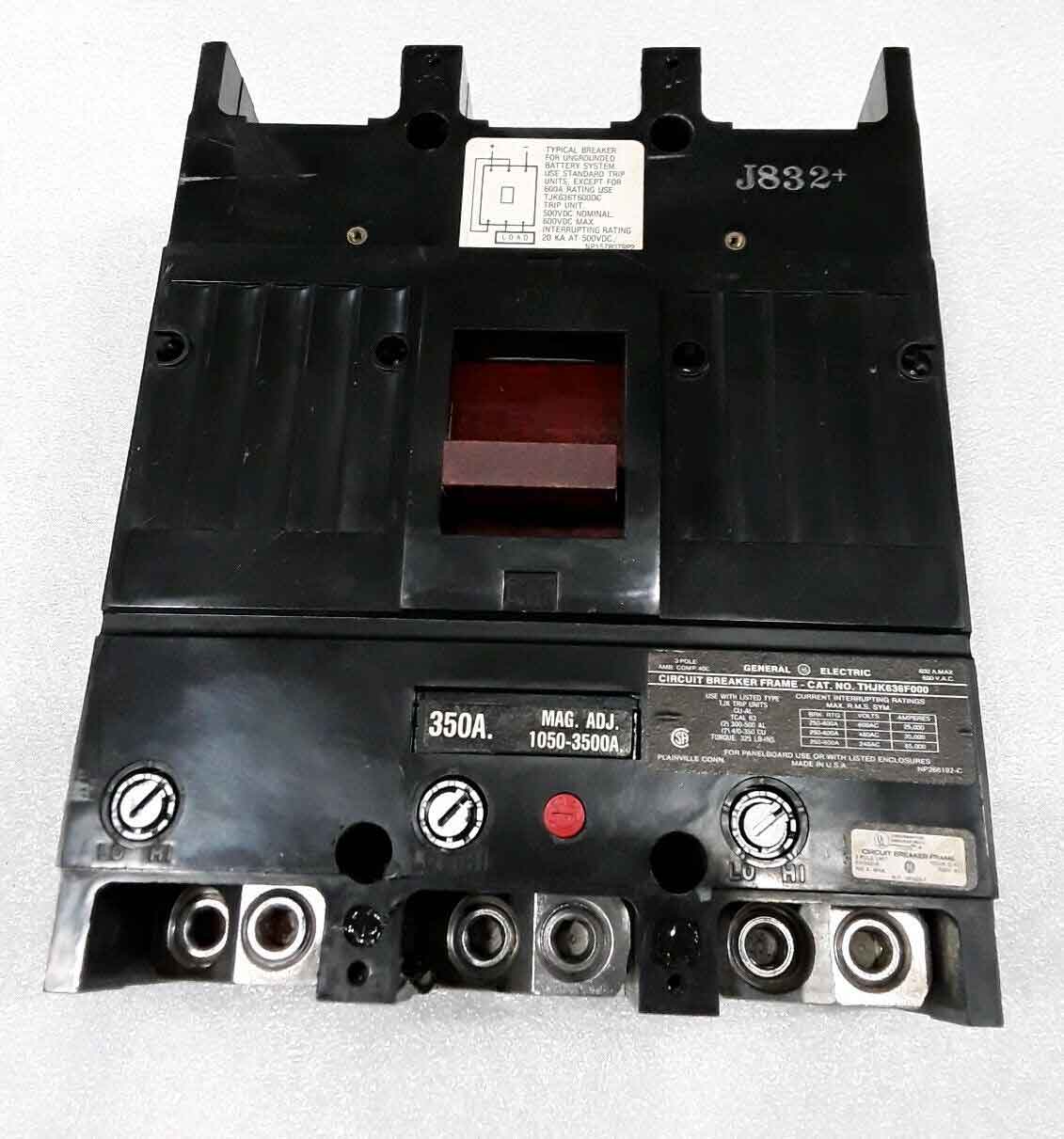

Product Specifications - THJK636350 - General Electrics Molded Case Circuit Breakers
-
Part Number:
THJK636350 -
Manufacturer:
-
Family:
J600 Line -
Pole:
3 -
Amp
350 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
THJK -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
3.81 x 8.25 x 10.12 -
Weight:
17.54 lb
Standards
Product Description - THJK636350 - General Electrics Molded Case Circuit Breakers
The THJK636350, a Bolt-On molded case circuit breaker from General Electric's J600 Line, is designed for robust electrical systems. Classified as Type THJK, it features a 3P, 3PH configuration with a 350A current rating at 600V. With a high interrupting capacity of 35kA@480V, this breaker is equipped with load side lug terminals and an interchangeable trip unit for ease of installation and flexibility in circuit protection. Operating at 40ºC, its Bolt-On design and Thermal Magnetic technology make it suitable for applications requiring high-interrupting capacity.
Description
Overview
Product Specifications - THJK636350 - General Electrics Molded Case Circuit Breakers
-
Part Number:
THJK636350 -
Manufacturer:
-
Family:
J600 Line -
Pole:
3 -
Amp
350 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
THJK -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
3.81 x 8.25 x 10.12 -
Weight:
17.54 lb
Standards
Product Description - THJK636350 - General Electrics Molded Case Circuit Breakers
The THJK636350, a Bolt-On molded case circuit breaker from General Electric's J600 Line, is designed for robust electrical systems. Classified as Type THJK, it features a 3P, 3PH configuration with a 350A current rating at 600V. With a high interrupting capacity of 35kA@480V, this breaker is equipped with load side lug terminals and an interchangeable trip unit for ease of installation and flexibility in circuit protection. Operating at 40ºC, its Bolt-On design and Thermal Magnetic technology make it suitable for applications requiring high-interrupting capacity.
