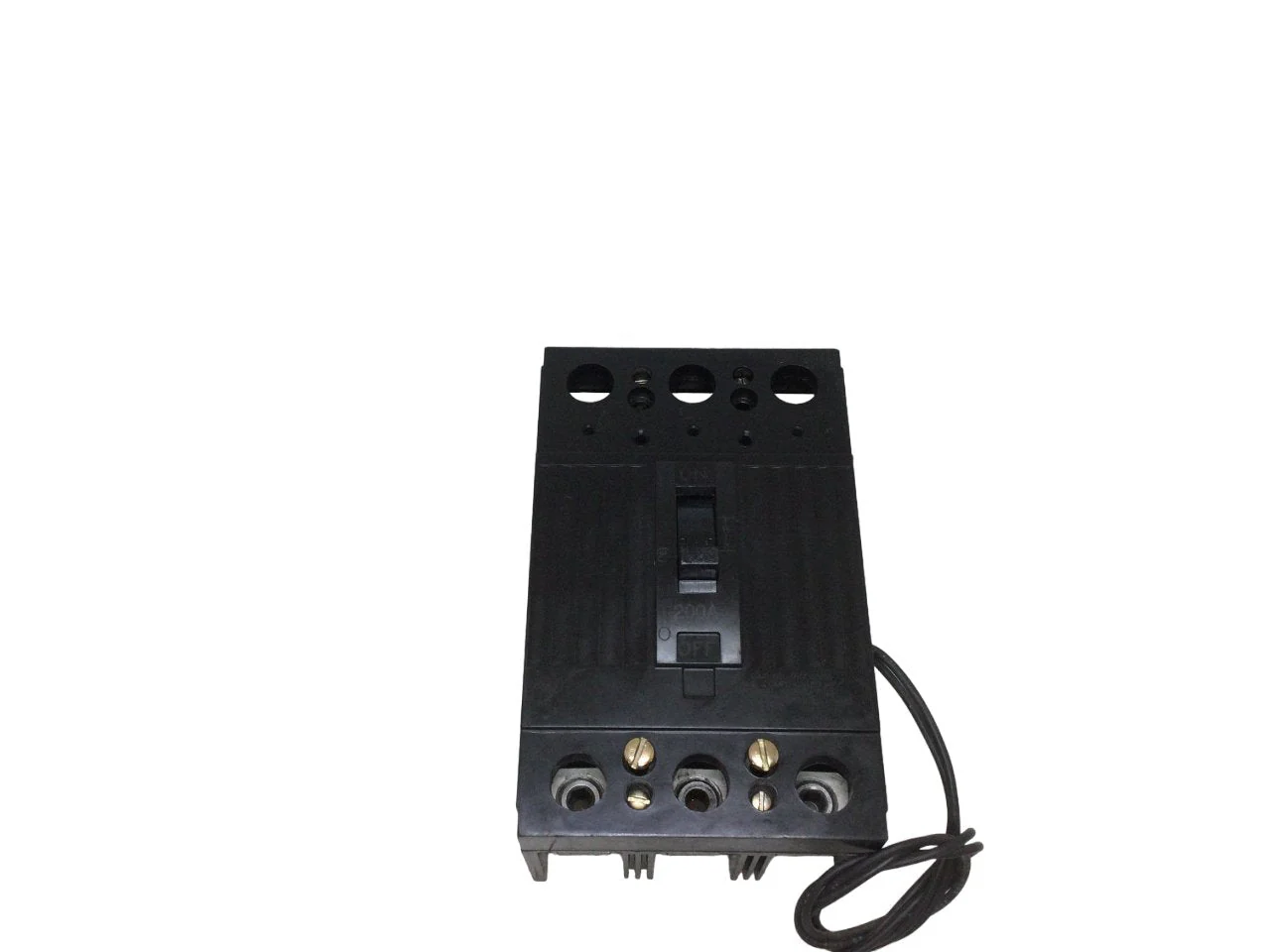

Product Specifications - THQD32200ST1 - General Electrics Molded Case Circuit Breakers
-
Part Number:
THQD32200ST1 -
Manufacturer:
-
Family:
Q-Line -
Pole:
3 -
Amp
200 -
Volt:
240 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
THQD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
22kA@240V
Dimensions
-
Weight:
4 lb
Standards
Product Description - THQD32200ST1 - General Electrics Molded Case Circuit Breakers
Manufacturer THQD32200ST1, Brand: General Electric, Product Type: Q-Line Circuit Breaker, Model: THQD, Configuration: 3P, 3PH, Amperage: 200A, Voltage: 240V, Interrupting Capacity: 22kA@240V, Features: Complete with TQST1 120-240V shunt trip, non-interchangeable trip unit, and load side lug terminals. High interrupting capacity, 40°C operating temperature, Mounting: Bolt-On, Technology: Thermal Magnetic, Design: Molded Case Circuit Breaker.
