Original: $2,044.99
-70%$2,044.99
$613.50The Story
Overview
Product Specifications - TKMA30700 - General Electrics Molded Case Circuit Breakers
-
Part Number:
TKMA30700 -
Manufacturer:
-
Family:
K1200 Line -
Pole:
3 -
Amp
700 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
TKMA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
30kA@480V
Dimensions
-
Weight:
26.71 lb
Standards
Product Description - TKMA30700 - General Electrics Molded Case Circuit Breakers

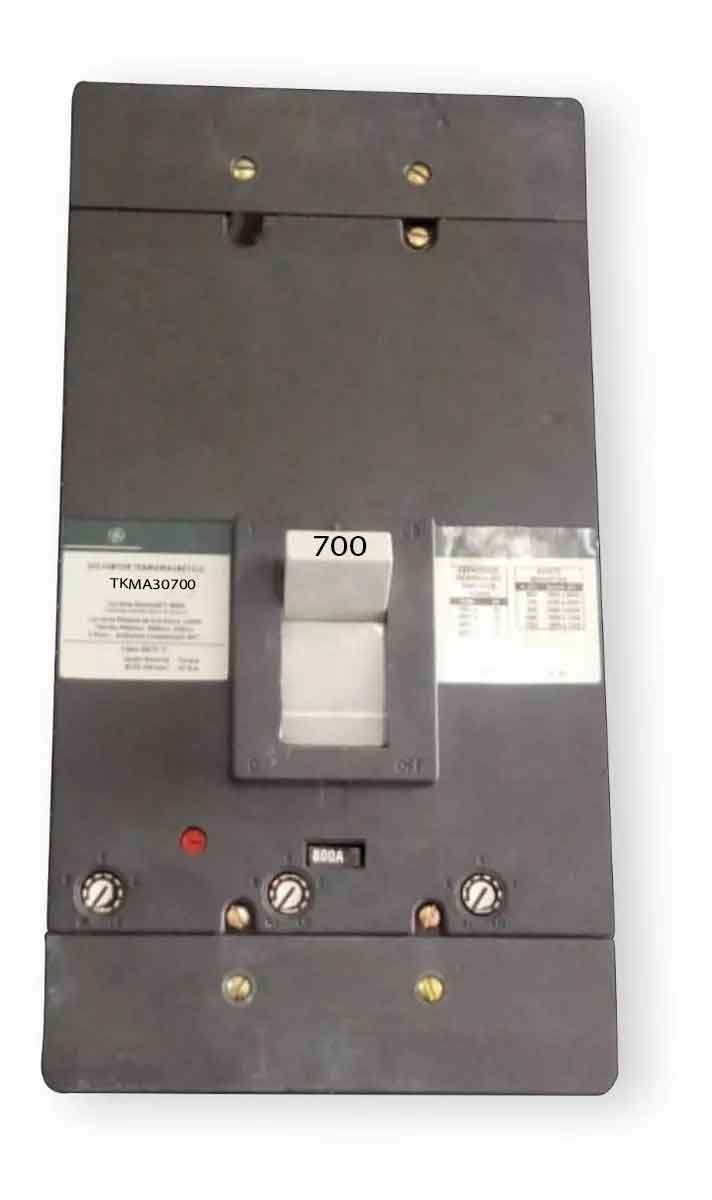

Similar to its counterpart, this TKMA type circuit breaker from the K1200 Line is a 3-pole, 3-phase unit with a higher rating of 700A and the same 600V voltage capacity. It maintains a standard interrupting capacity of 30kA at 480V and shares features like the 40ºC operating temperature and Bolt-On design. The circuit breaker is delivered complete with interchangeable trip options, offering both Long-Time (LI) and Instantaneous trip functions. The inclusion of load side lug terminals enhances its practicality in diverse applications.
