Overview

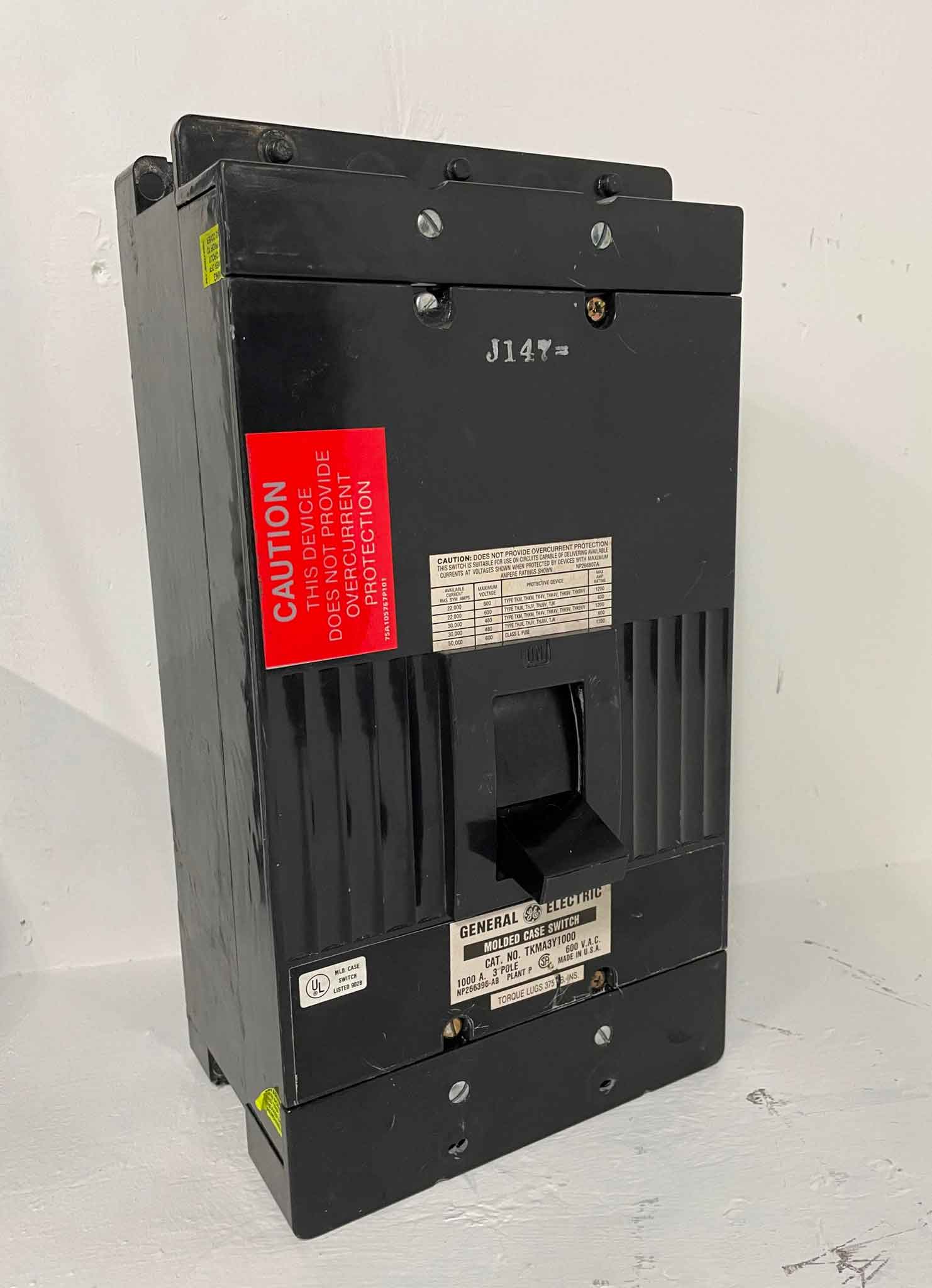

Product Specifications - TKMA3Y1000 - General Electrics Molded Case Circuit Breakers
-
Part Number:
TKMA3Y1000 -
Manufacturer:
-
Family:
K1200 Line -
Pole:
3 -
Amp
1000 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TKMA -
Functions:
NA - No Overcurrent Protection -
Protection:
Non-Automatic -
AIC Ratings:
30kA@480V
Dimensions
-
Dimensions (HxWxD):
5.5 x 8.25 x 15.5 -
Weight:
54.26 lb
Standards
Product Description - TKMA3Y1000 - General Electrics Molded Case Circuit Breakers
Featuring a Feed-Thru design, this TKMA type circuit breaker with a 3-pole, 3-phase configuration has a substantial 1000A rating. Operating at 600V, it maintains a standard interrupting capacity of 30kA at 480V. Notably, it lacks Overcurrent Protection (NA), and the line & load side lug terminals enhance its connectivity. Classified as a Non-Automatic molded case switch, it is a reliable choice for applications where overcurrent protection is not required.
