Product Specifications - TKMA836800WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TKMA836800WL -
Manufacturer:
-
Family:
K1200 Line -
Pole:
3 -
Amp
800 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TKMA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
30kA@480V
Dimensions
-
Dimensions (HxWxD):
5.5 x 8.25 x 15.5 -
Weight:
34.45 lb
Standards
Product Description - TKMA836800WL - General Electrics Molded Case Circuit Breakers

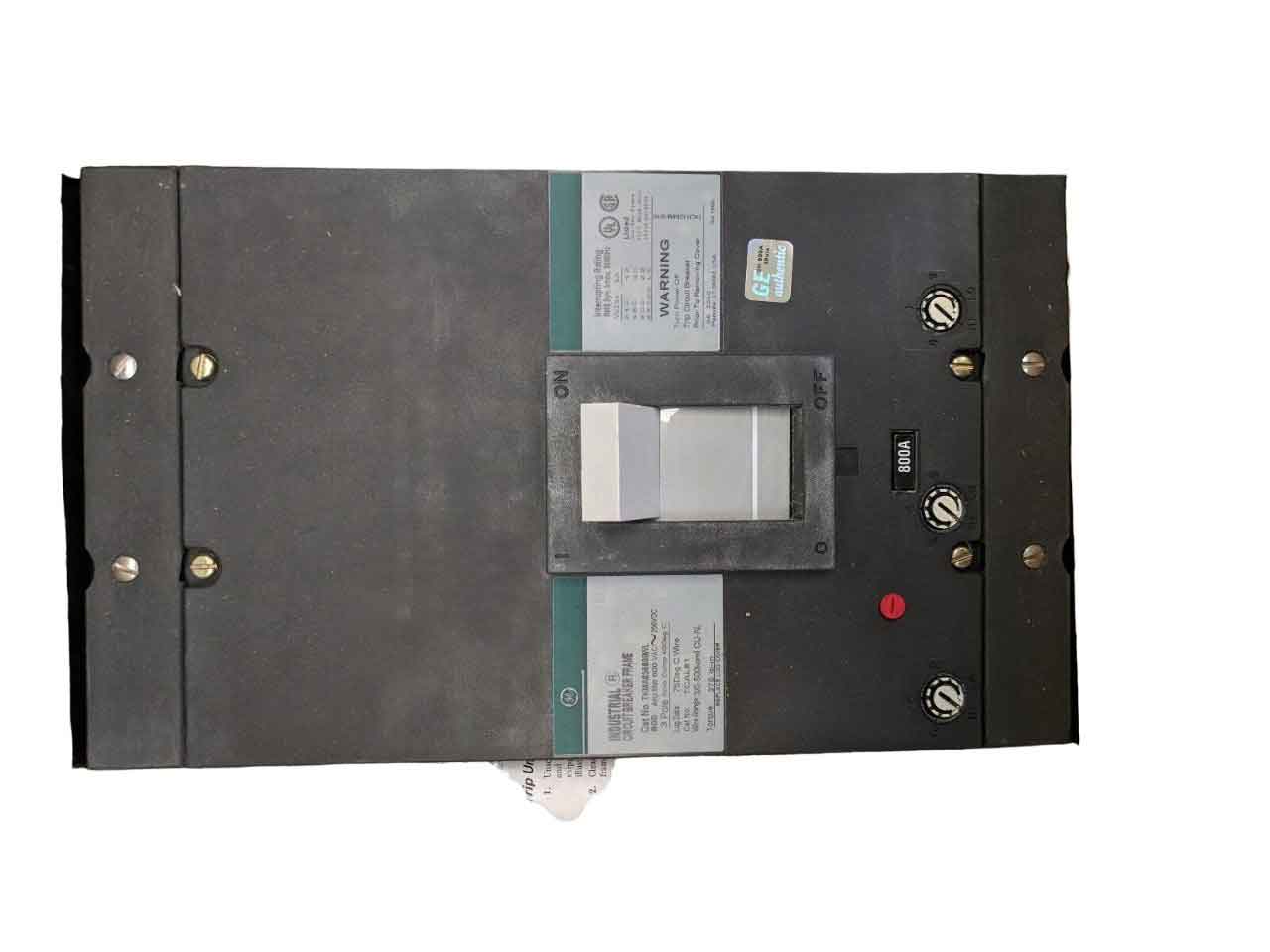

This 3-pole, 3-phase TKMA type circuit breaker, rated for 800A, is part of the K1200 Line, designed for reliability in demanding environments. Operating at 600V, it provides a standard interrupting capacity of 30kA at 480V. Featuring a 40ºC Feed-Thru design, it is complete with interchangeable trip options, providing both Long-Time (LI) and Instantaneous trip functions. The inclusion of line & load side lug terminals enhances its connectivity, making it a versatile choice for a variety of applications.
