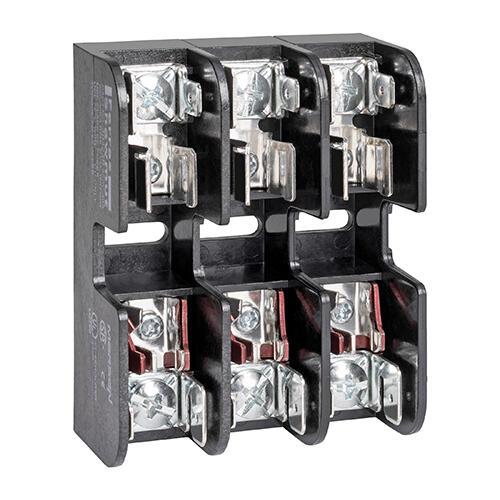

Product Specifications - 30323R - Mersen / Ferraz Shawmut Fuse Block
-
Part Number:
30323R -
Manufacturer:
-
Volt:
600
-
Category:
-
Type:
303
Dimensions
-
Dimensions (HxWxD):
1.6 x 3.04 x 1.31 -
Weight:
0.35 lbs
Standards
Product Description - 30323R - Mersen / Ferraz Shawmut Fuse Block
Mersen midget fuse blocks accommodate all 30 ampere 1-1/2” x 13/32” midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
