Original: $1,293.99
-70%$1,293.99
$388.20The Story
Overview
Product Specifications - HFXD63B070 - Siemens Breakers Molded Case Circuit Breakers
-
Part Number:
HFXD63B070 -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
70 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HFXD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
9.5" x 4.48" x 5.14"
-
Weight:
9 lbs
Standards
Product Description - HFXD63B070 - Siemens Breakers Molded Case Circuit Breakers

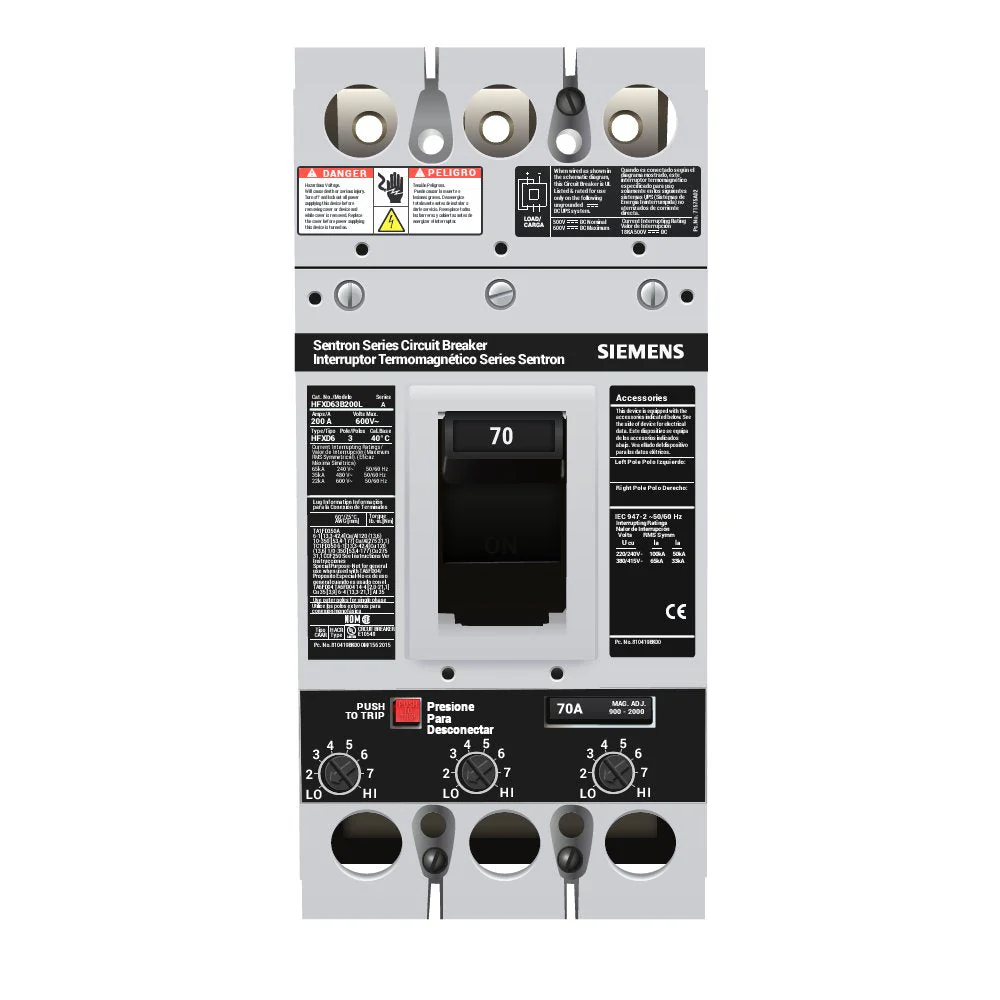

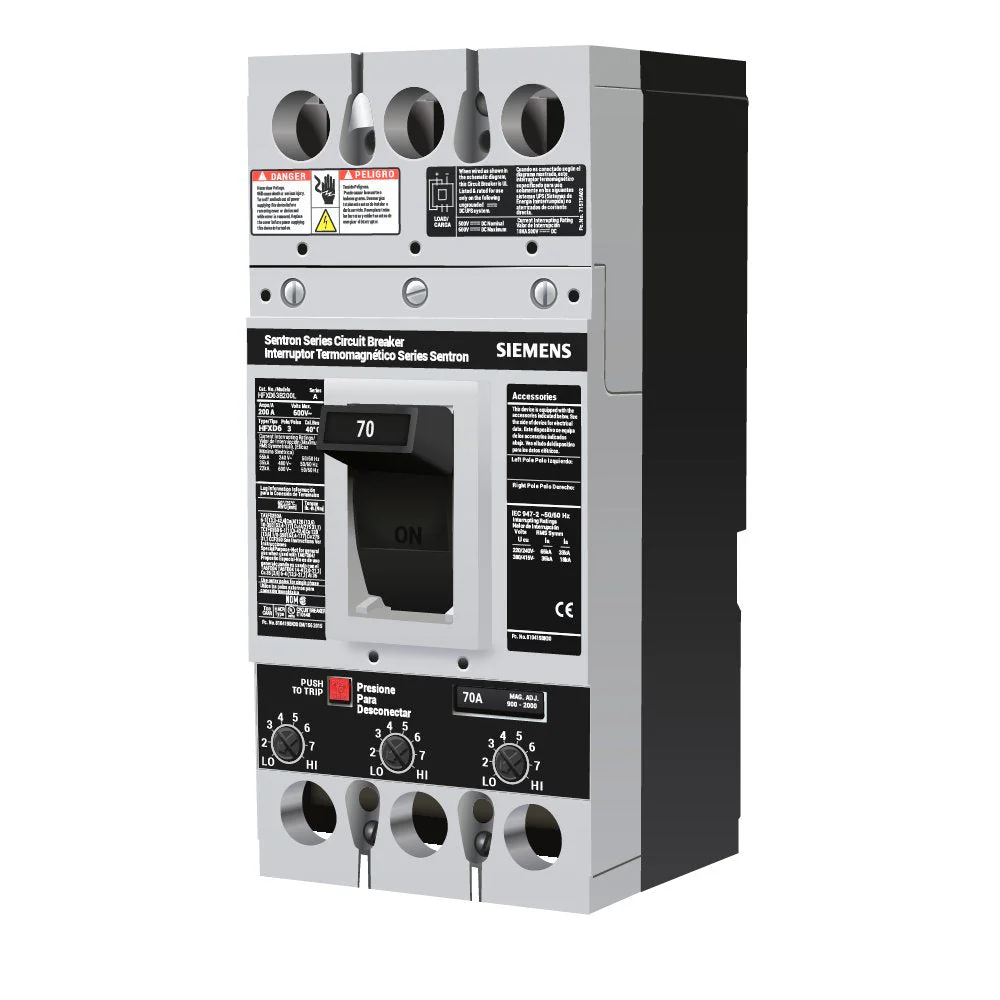

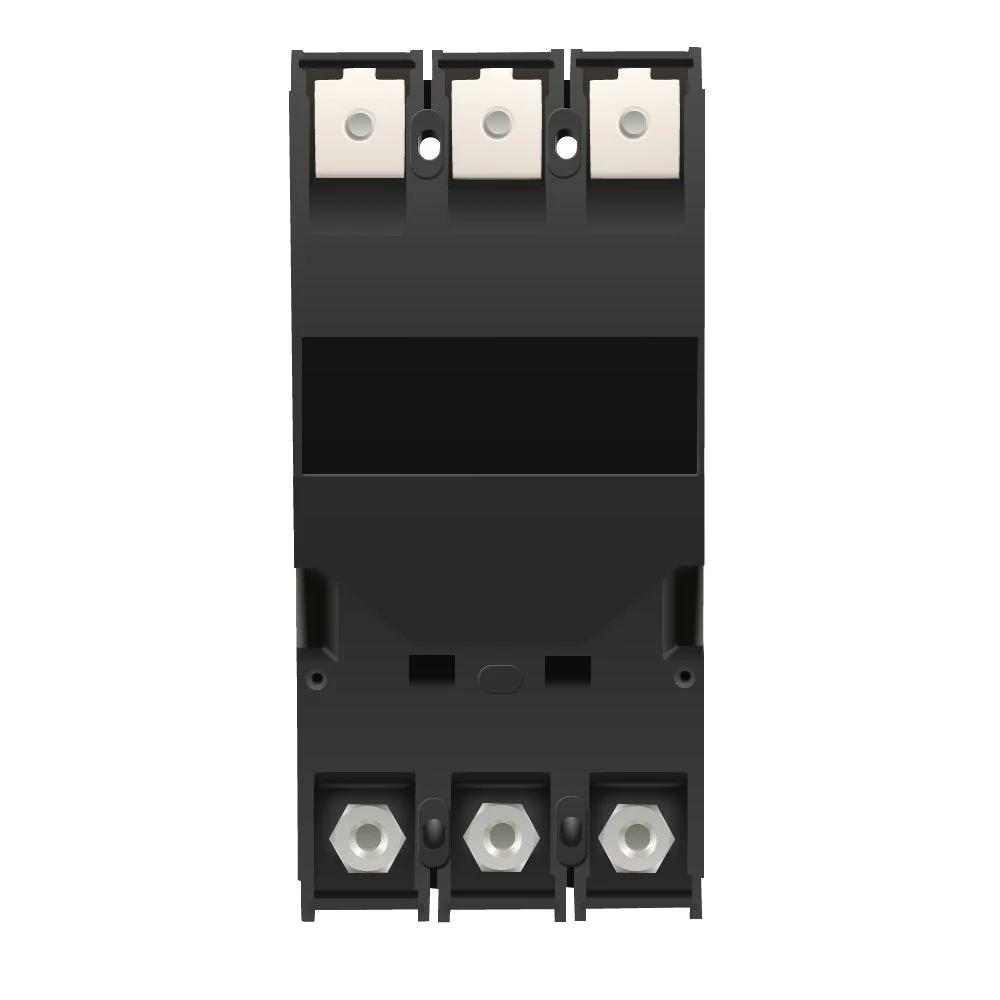

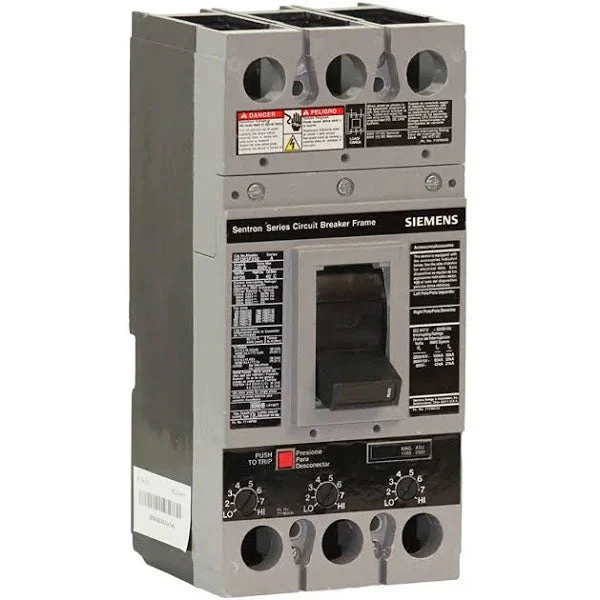

Siemens HFXD sentron series three pole 70 ampere feed-thru molded case circuit breaker with maximum voltage rating of 600V tripping method thermal magnetic and standard interrupting rating of 65 kiloampere at 480V complete with non-interchangeable trip unit. SPECIAL FEATURES: NO LUGS INSTALLED.
Documentation
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Overview
Product Specifications - HFXD63B070 - Siemens Breakers Molded Case Circuit Breakers
-
Part Number:
HFXD63B070 -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
70 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HFXD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
9.5" x 4.48" x 5.14"
-
Weight:
9 lbs
Standards
Product Description - HFXD63B070 - Siemens Breakers Molded Case Circuit Breakers
Siemens HFXD sentron series three pole 70 ampere feed-thru molded case circuit breaker with maximum voltage rating of 600V tripping method thermal magnetic and standard interrupting rating of 65 kiloampere at 480V complete with non-interchangeable trip unit. SPECIAL FEATURES: NO LUGS INSTALLED.
