Overview

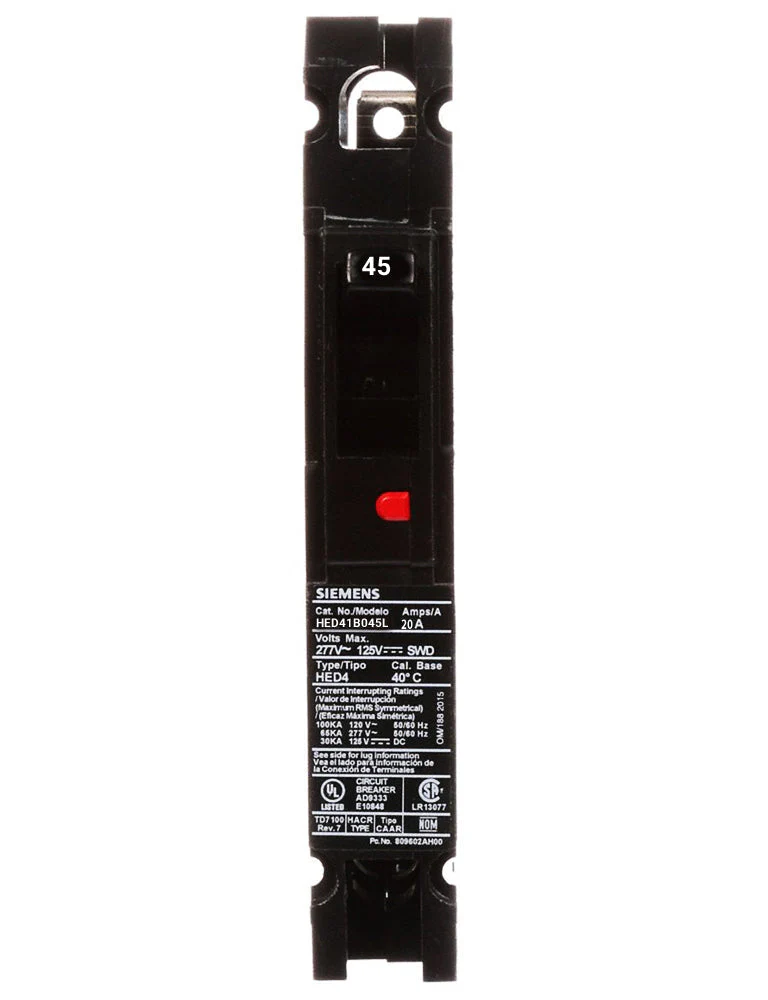

Product Specifications - HED41B045L Siemens Molded Case
-
Part Number:
HED41B045L -
Manufacturer:
-
Family:
Sentron Series -
Pole:
1 -
Amp
45 -
Volt:
277 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
ED Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@277V
Dimensions
-
Dimensions (HxWxD):
1 x 6.35 x 3.92. -
Weight:
3
Standards
Product Description - HED41B045L Siemens Molded Case
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH HIGH BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 45A 1-POLE BREAKER (25KAIC AT 277V). SPECIAL FEATURES: LINE AND LOAD SIDE LUGS LINE (LN1E100) / LOAD (LD1E060) WIRE RANGE: LINE (10 - 1/0AWG CU/AL) / LOAD (10 - 4AWG CU/AL). DIMENSIONS (W x H x D) IN: 1 x 6.35 x 3.92.
