Original: $1,340.99
-70%$1,340.99
$402.30The Story
Overview
Product Specifications - HFXD63B110 Siemens Molded Case
-
Part Number:
HFXD63B110 -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
110 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
FD Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
4.5 x 9.5 x 4. -
Weight:
7.5
Standards

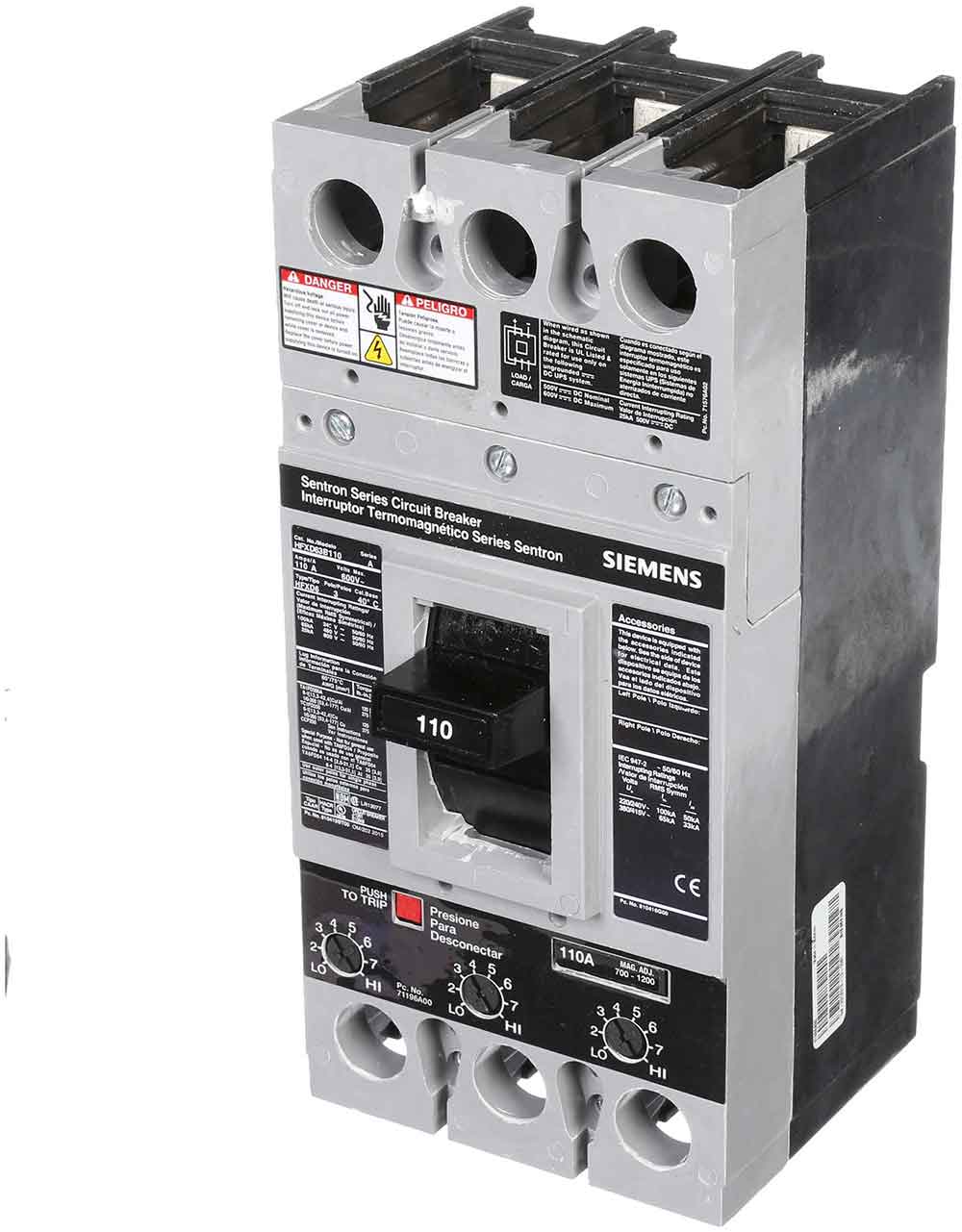

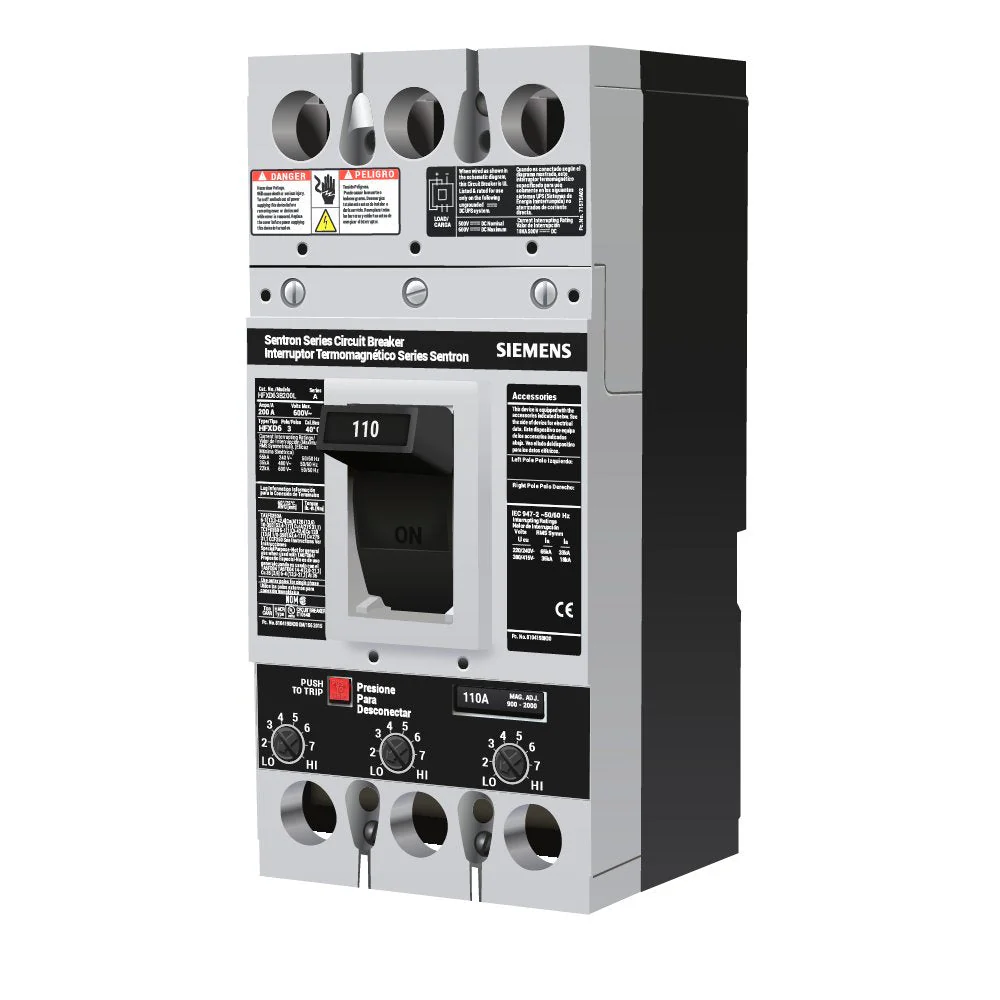

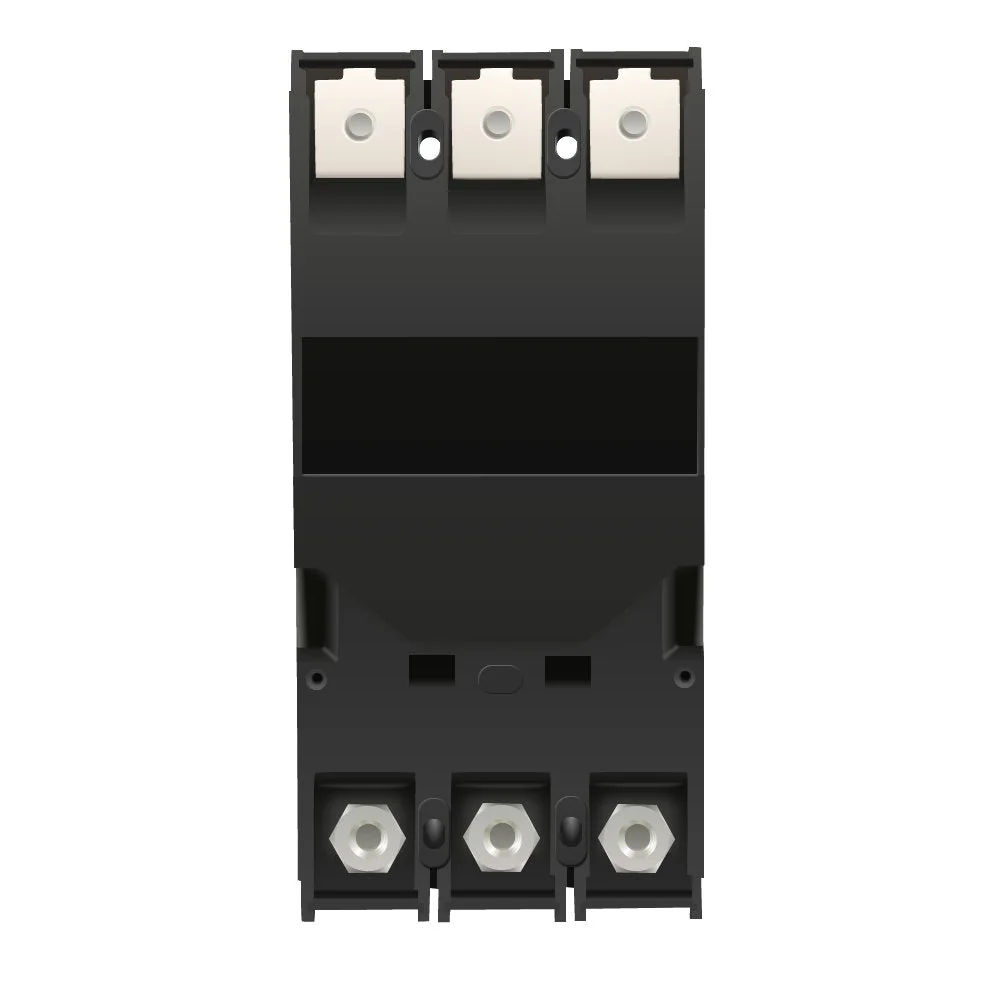

Product Description - HFXD63B110 Siemens Molded Case
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER FD FRAME WITH HIGH BREAKING CAPACITY AND NON INTERCHANGEABLE TRIP. MEETS UL 489 / IEC 60947-2 STANDARDS. 110A 3-POLE BREAKER (25KAIC AT 600V) (65KAIC AT 480V). SPECIAL FEATURES: NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN: 4.5 x 9.5 x 4.
