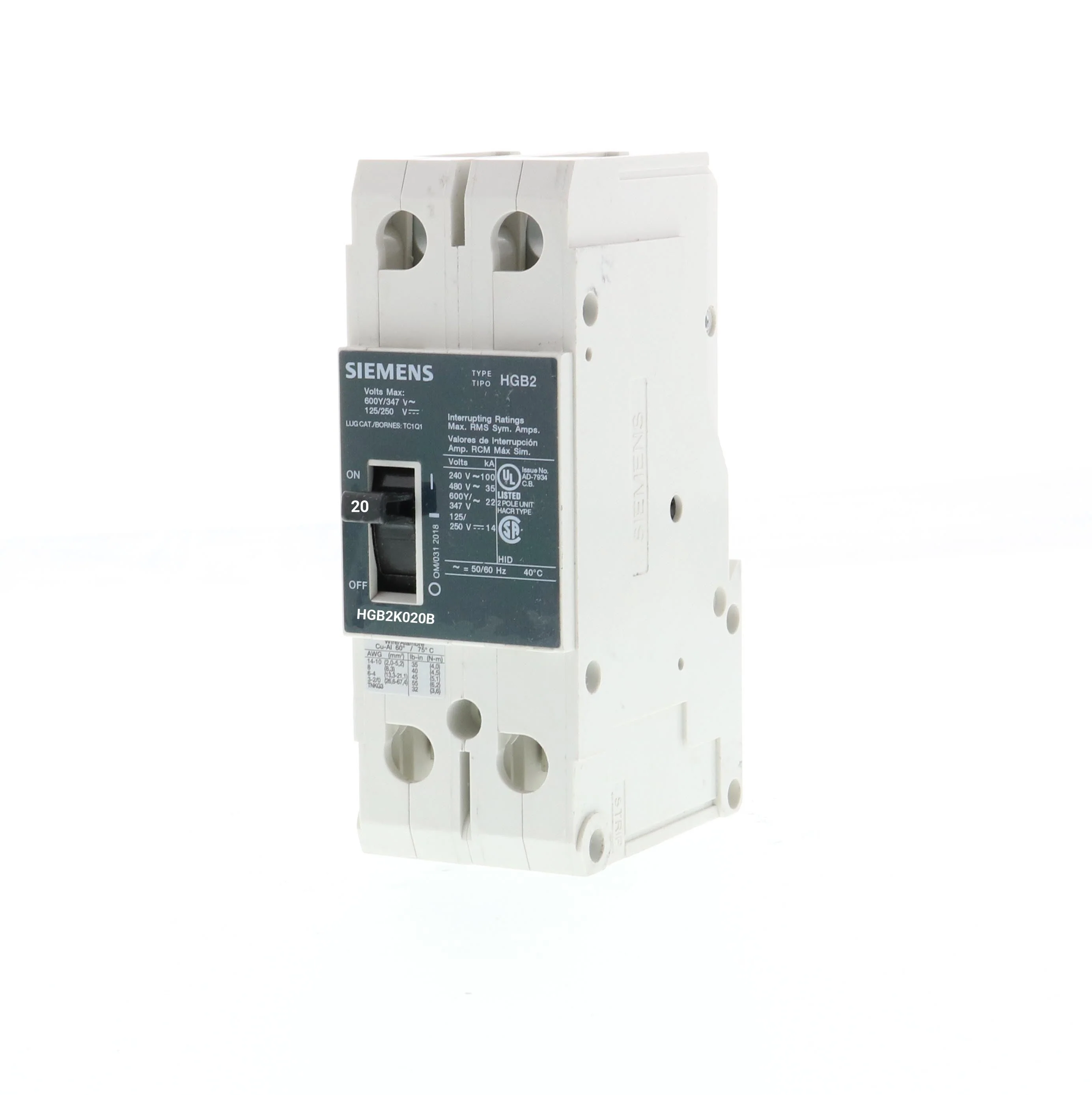

HGB2K020B - Siemens - Molded Case—
$165.99
The Story
Overview
Product Specifications - HGB2K020B Siemens Molded Case
-
Part Number:
HGB2K020B -
Manufacturer:
-
Family:
GB2 Series -
Pole:
2 -
Amp
20 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Bolt-On -
Type:
GB2 Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
2 x 5.4 x 2.8. -
Weight:
0.9
Standards
Product Description - HGB2K020B Siemens Molded Case
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. UL LISTED HGB FRAME WITH HIGH BREAKING CAPACITY. 20A 2-POLE (14KAIC AT 600Y/347V) (35KAIC AT 480V). SPECIAL FEATURES: LOAD SIDE LUGS ONLY (TC1Q1) WIRE RANGE: 14 - 10 AWS (CU/AL). DIMENSIONS (W x H x D) IN: 2 x 5.4 x 2.8.
