Original: $945.99
-70%$945.99
$283.80The Story
Overview

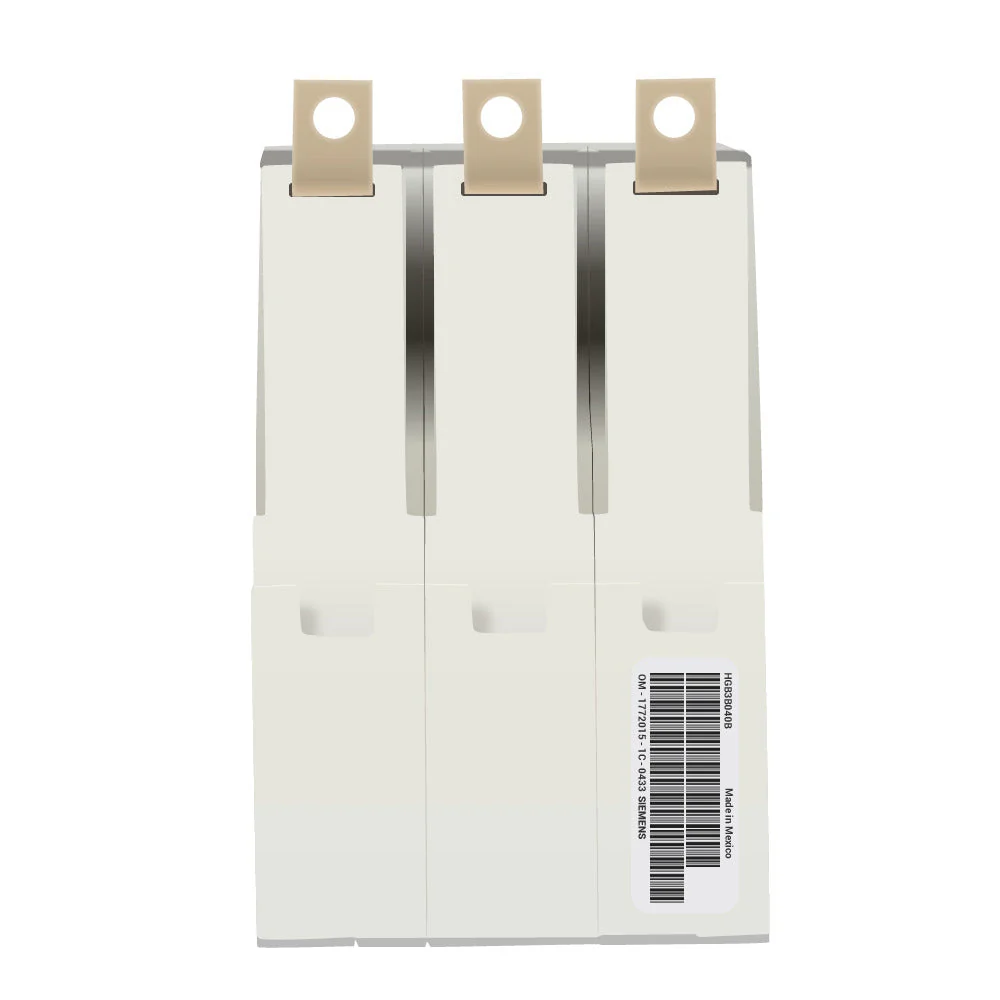

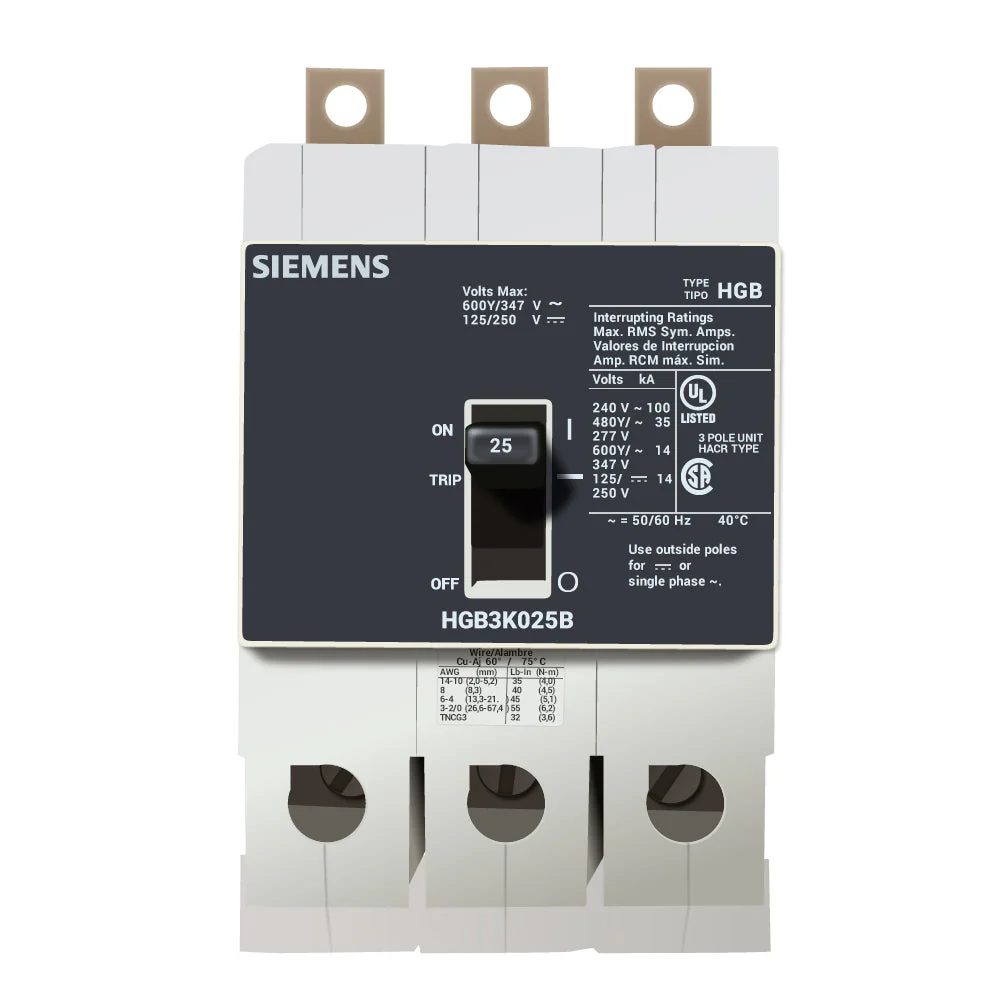

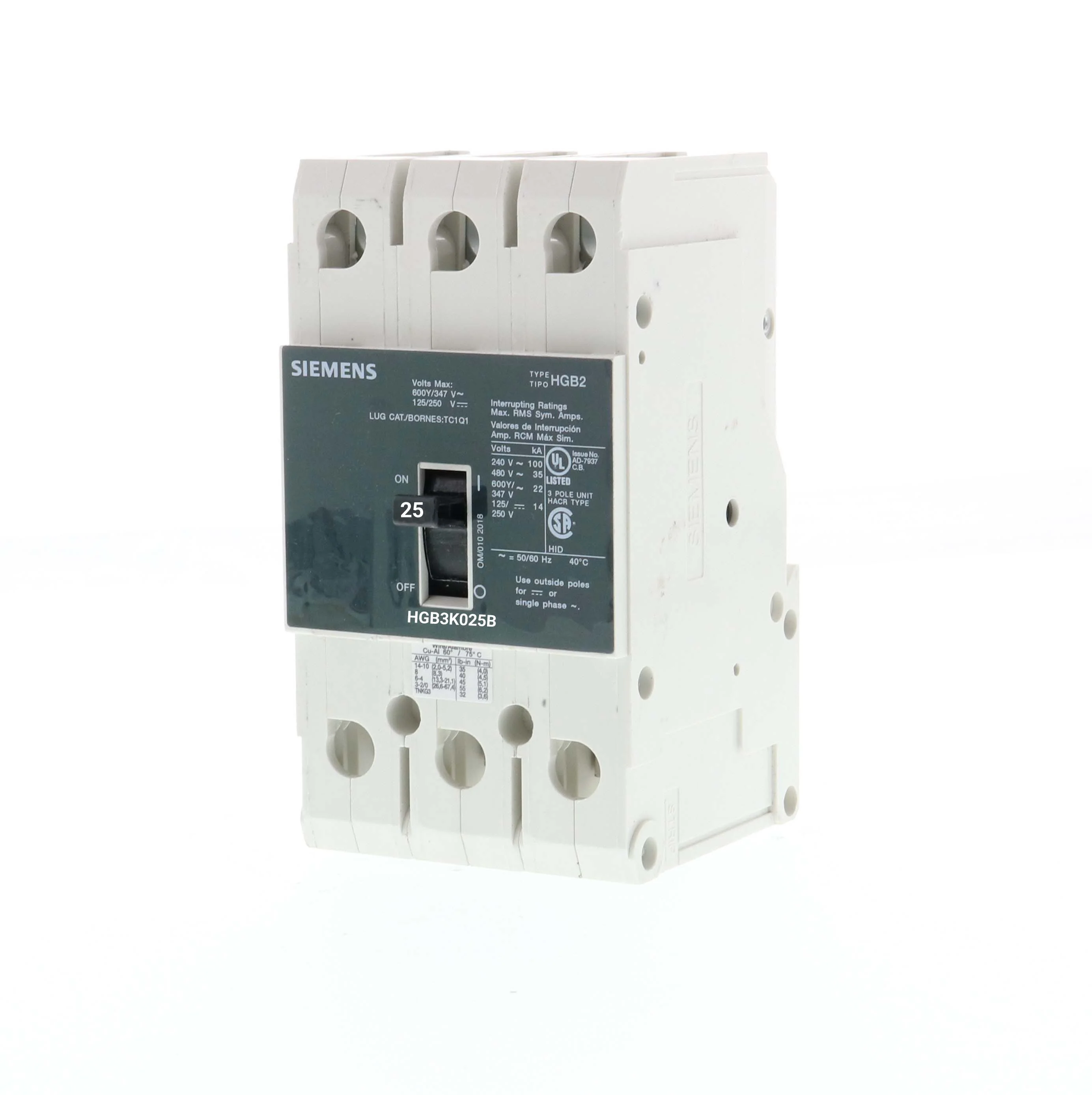

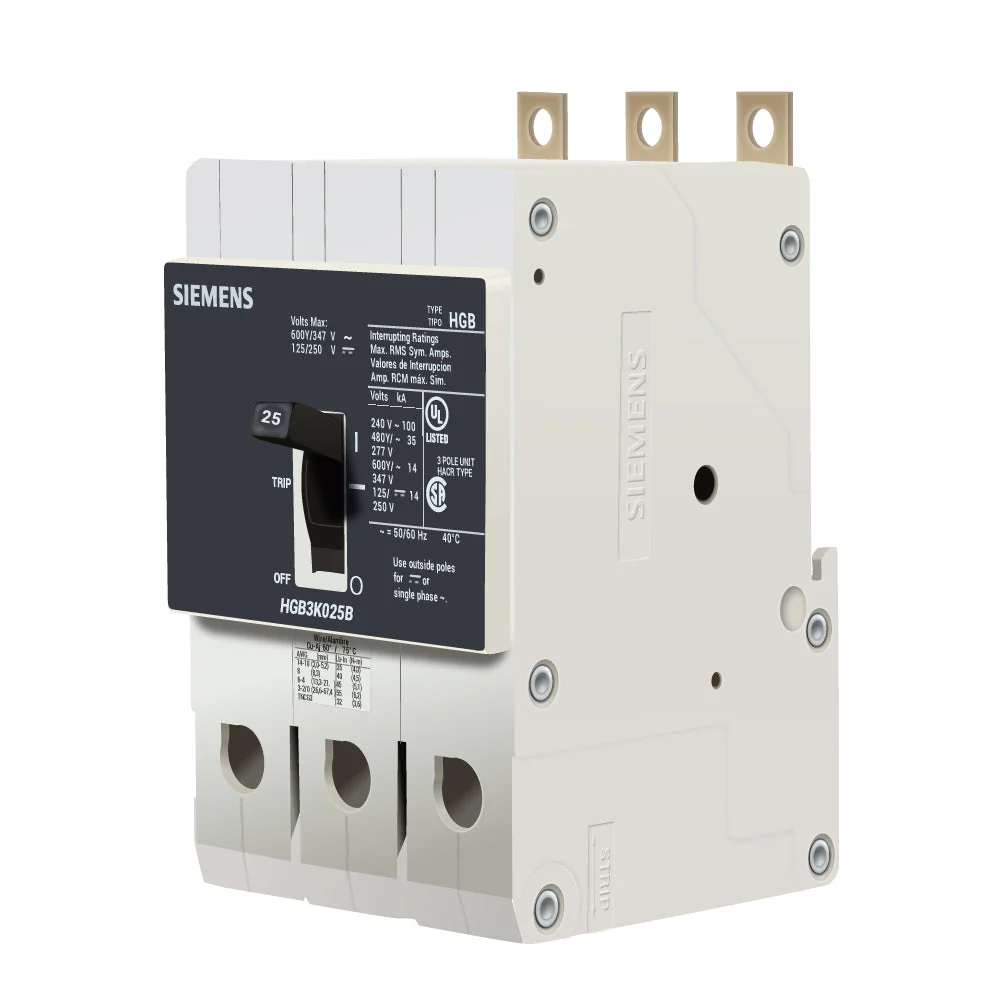

Product Specifications - HGB3K025B Siemens Molded Case
-
Part Number:
HGB3K025B -
Manufacturer:
-
Family:
GB2 Series -
Pole:
3 -
Amp
25 -
Volt:
600 -
Phase:
2
-
Category:
-
Connection:
Bolt-On -
Type:
GB2 Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
3 x 5.4 x 2.8. -
Weight:
2.76
Standards
Product Description - HGB3K025B Siemens Molded Case
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED HGB2 FRAME WITH HIGH BREAKING CAPACITY. 25A 3-POLE (14KAIC AT 600Y/347V) (35KAIC AT 480V). SPECIAL FEATURES: MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1Q1) WIRE RANGE: 14 - 10 AWS (CU/AL). DIMENSIONS (W x H x D) IN: 3 x 5.4 x 2.8.
