Original: $2,970.99
-70%$2,970.99
$891.30The Story
Overview

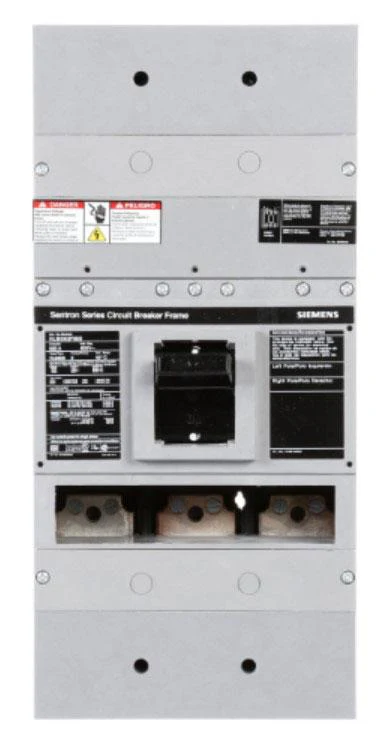

Product Specifications - HLMD63B700 Siemens Molded Case
-
Part Number:
HLMD63B700 -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
700 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
LMD Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
7.5 x 16 x 4.5. -
Weight:
35.67
Standards
Product Description - HLMD63B700 Siemens Molded Case
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER LMD FRAME WITH HIGH BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 700A 3-POLE BREAKER (50KAIC AT 600V) (65KAIC AT 480V). SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (TA3K500) WIRE RANGE: 1/0AWG - 500KCM (CU/AL). DIMENSIONS (W x H x D) IN: 7.5 x 16 x 4.5.
